9.1 Operation of General-Purpose Communication
9.1.1 Read Data from an External Device
■

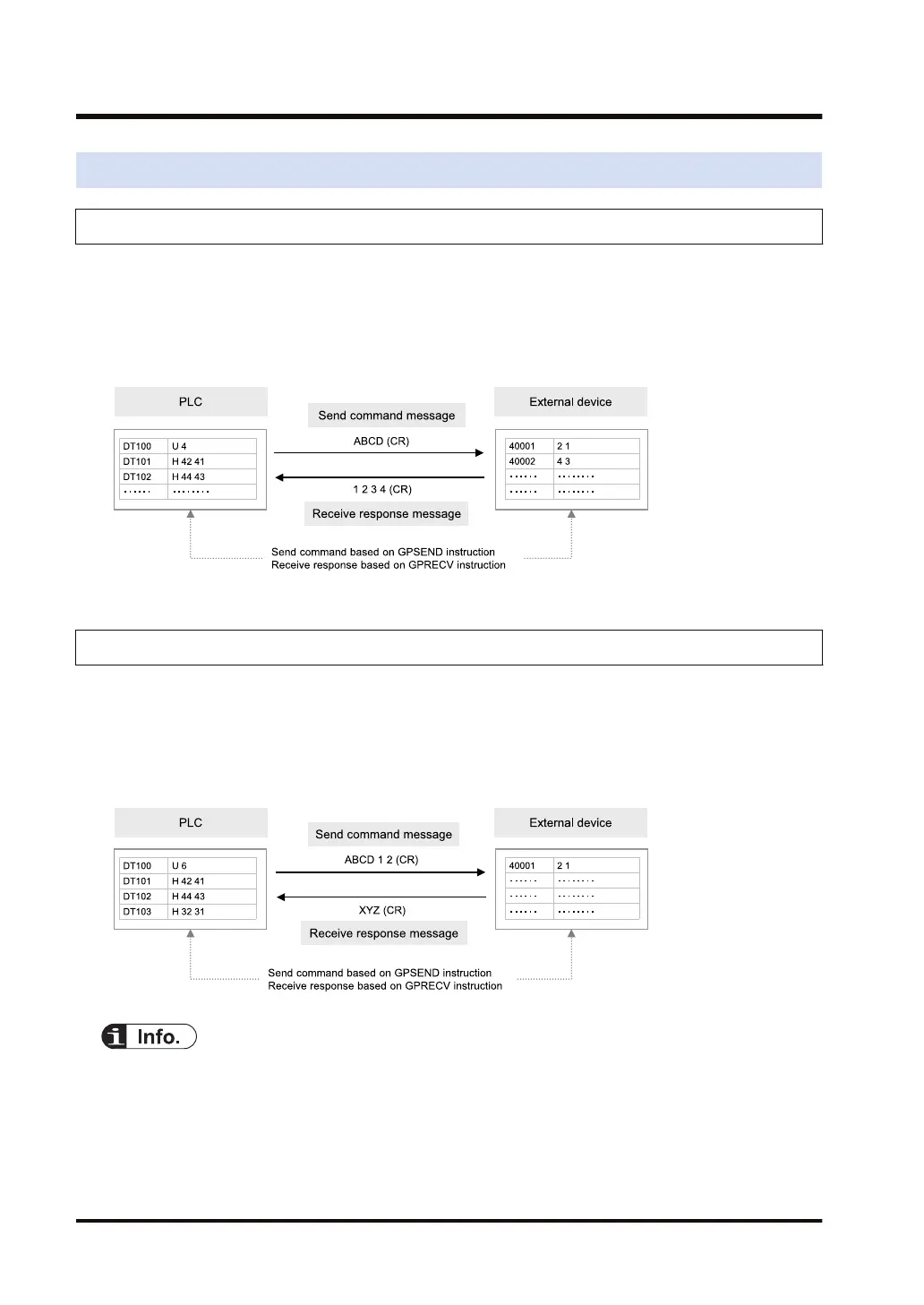

Read data from a partner device
In general-purpose communication, communication is executed by sending commands that suit
the partner device, and receiving responses. Command messages are sent by formulating a
data table for message in accordance with the protocol, on the given data register, and
subsequently executing GPSEND instruction.
9.1.2 Write Data into an External Device
■
Write data into a partner device
In general-purpose communication, communication is executed by sending commands that suit
the partner device, and receiving responses. Command messages are sent by formulating a
data table for message in accordance with the protocol, on the given data register, and
subsequently executing GPSEND instruction.
● There is no relevance between the operation of transmission by GPSEND instruction and the
operation of reception by GPRECV instruction. The CPU with built-in SCU unit is always clear
to receive data.
