5.2 Setting Communication Conditions
5.2.1 Settings Using FPWIN GR7 (For CPU with built-in SCU)
Applications and communication conditions for each communication port should be set using
the tool software FPWIN GR7.

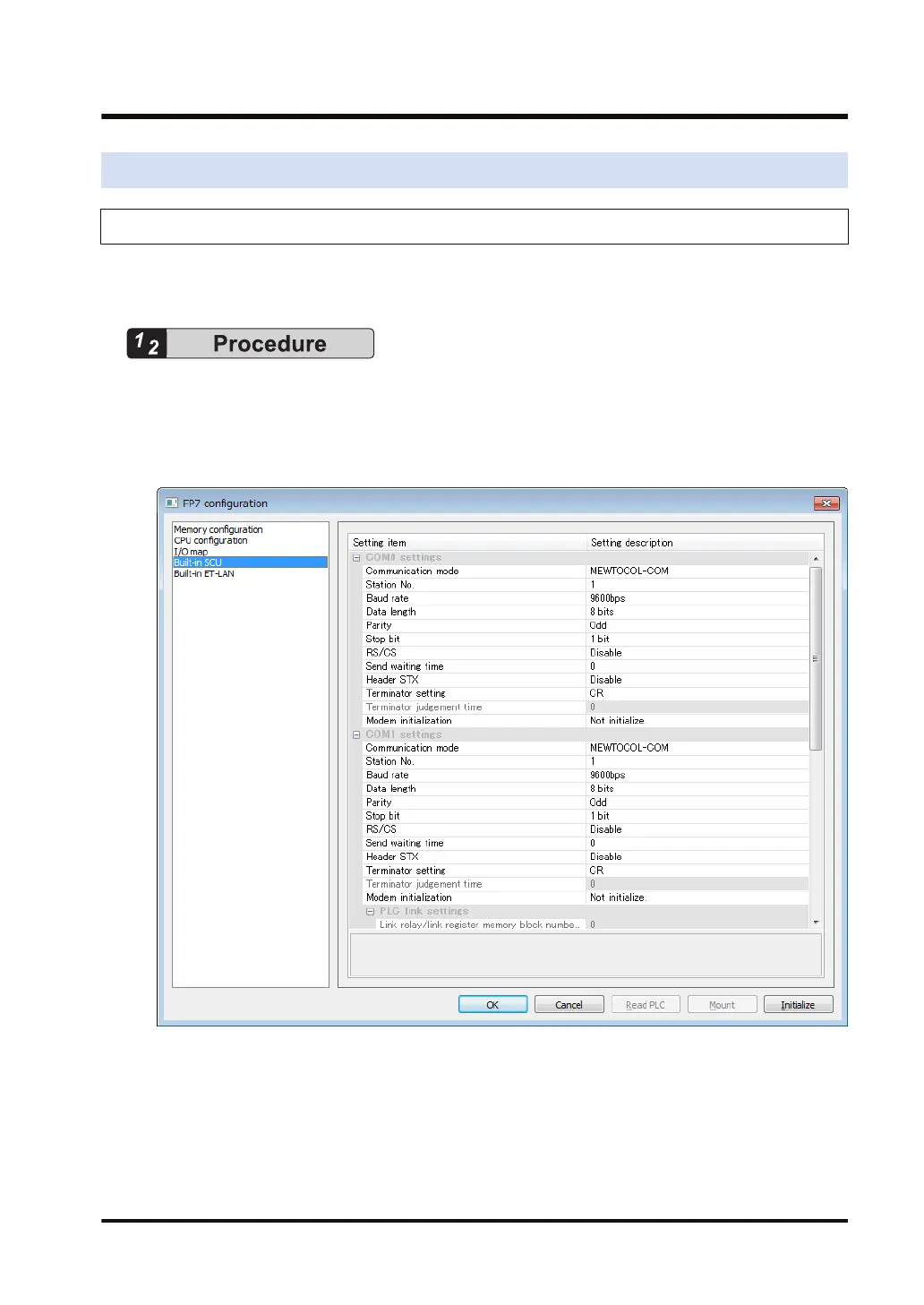

1. From the menu bar, select Option>FP7 Configuration.
The "FP7 Configuration" dialog box opens.
2. Select "Built-in SCU".
Setting items for "Built-in SCU" appear.
3. Set communication conditions, and press the [OK] button.
Set conditions are incorporated into the project that is being edited.
