6.2 Configuration Required for PLC Link
6.2.1 Setup Procedure (For CPU with Built-in SCU)
● In order to use the PLC link function, setting of communication conditions and allocation of
memories are required.
● Settings should be performed by the programming tool FPWIN GR7.

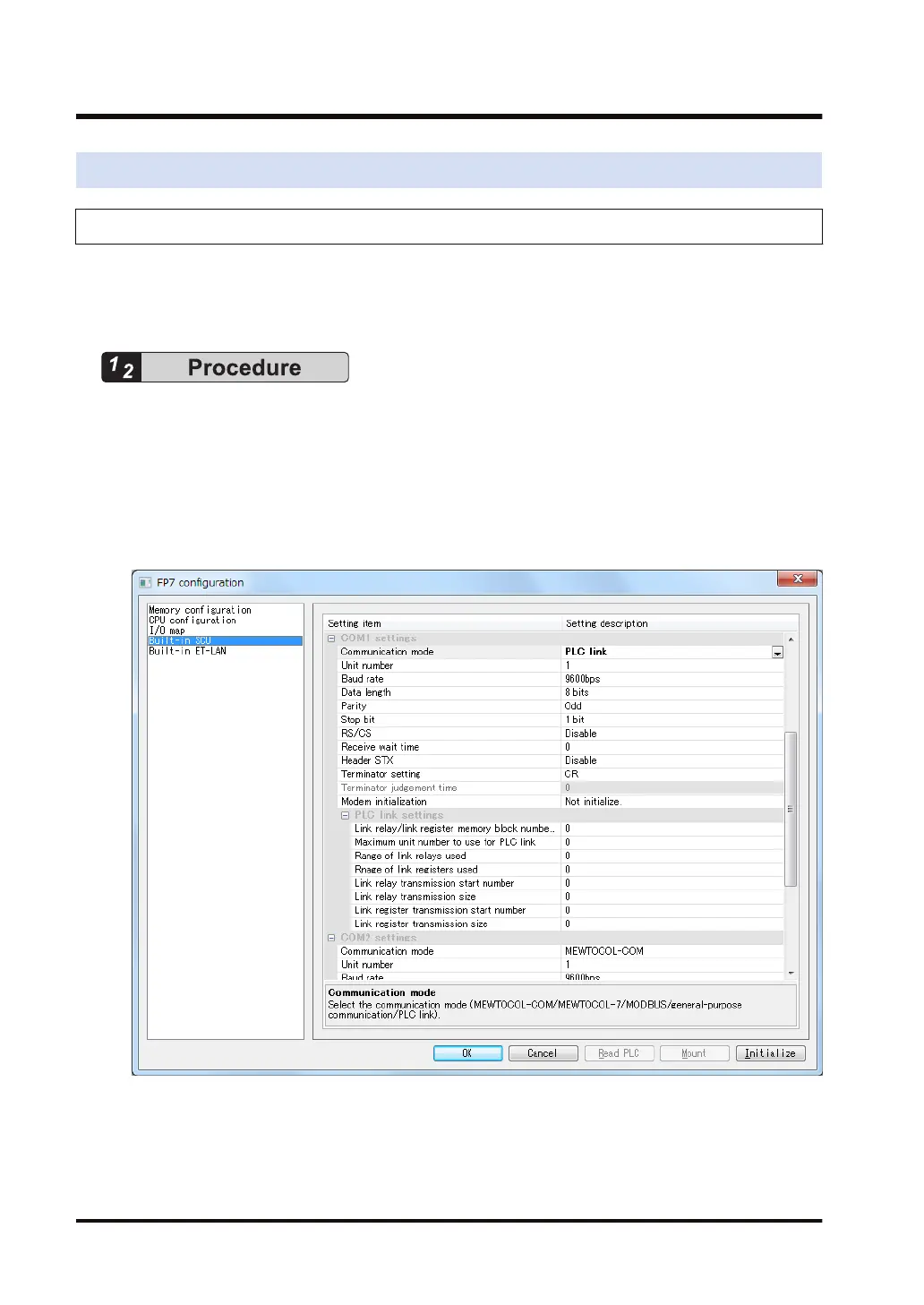

1. From the menu bar, select Option>FP7 Configuration.
The "FP7 Configuration" dialog box appears.
2. From the left pane of the dialog box, select "Built-in SCU".
Setting items for each COM. port are displayed.
3. Select "PLC link" from "Communication mode" in setting items under "COM.1 settings".
Setting items for "PLC link" become valid.
4. Specify conditions to be allocated to each setting item for "Station no." and "PLC link
settings" under "COM.1 settings", and press the [OK] button.
The settings are registered in the project.
