PLC PLC PLC PLC
R0
L0
L0 L0 L0
R0
F0 MV K100 LD0
R0
LD 0 100
LD 0 100 LD 0 100 LD 0 100
RS-485
R0R0
No.2 Link register
No.1 Link register
No.3 Link register No.4 Link register
■
Link register

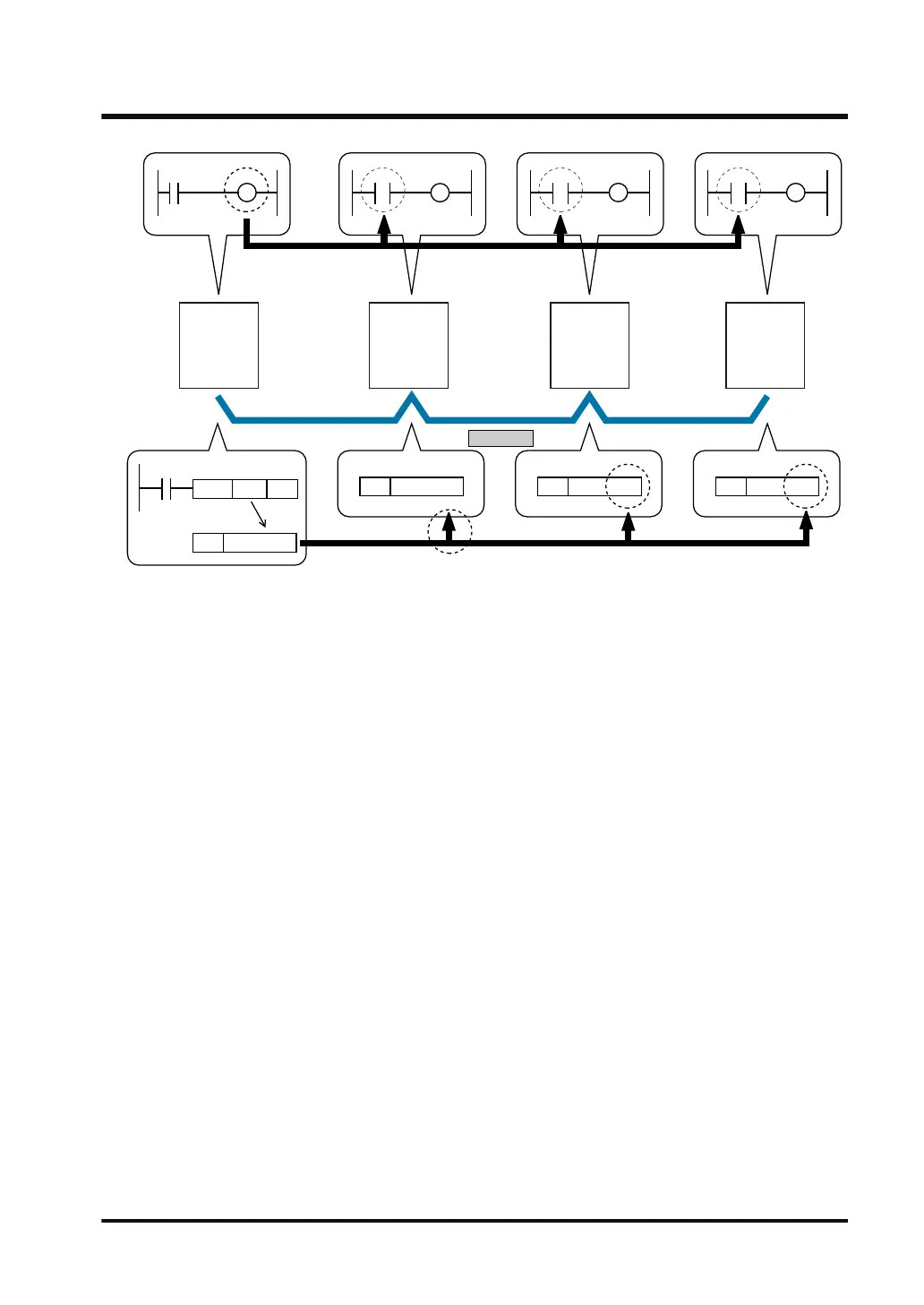

When a constant 100 is written into LD0 of the master unit (No. 1), the content of LD0 of every
other unit is also changed to constant 100.
