2.5 Installation of the Extension Cards — KX-
TDA100/KX-TDA200
2.5.1 CSIF4 and CSIF8 Card
Function
CSIF4: 4-port CS interface card for 4 CSs.
CSIF8: 8-port CS interface card for 8 CSs.
Accessory and User-supplied Items
Accessory (included): none
User-supplied (not included): RJ45 connector
Notes
• LINE 5 to LINE 8 are for CSIF8 card only.
• When using the CSIF4 card, please note that the Hybrid IP-PBX software will
recognise the CSIF4 card as the CSIF8 card. As a result, 8 cell stations may appear
to be available; however, only 4 cell stations are supported by the CSIF4 card.
• For details about connecting the CS, refer to "2.8.7 Connecting a Cell Station to the
Hybrid IP-PBX" in "2.8 Connection of DECT Portable Stations — KX-TDA100/KX-
TDA200" or "2.9.7 Connecting a Cell Station to the Hybrid IP-PBX" in "2.9 Connection
of 2.4 GHz Portable Stations — KX-TDA100/KX-TDA200".

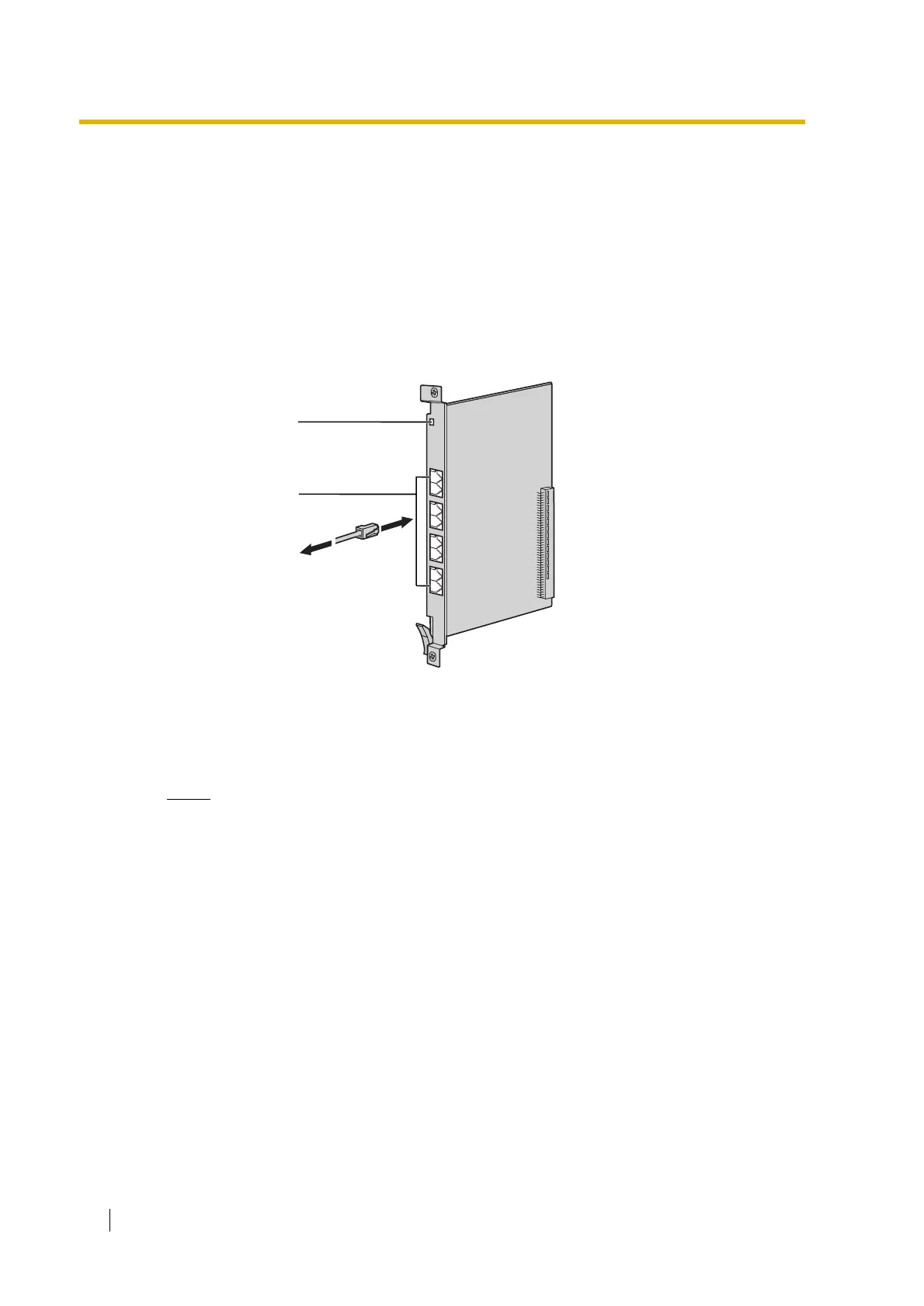

RJ45
(LINE 1 to LINE 8)
LED
To C S
