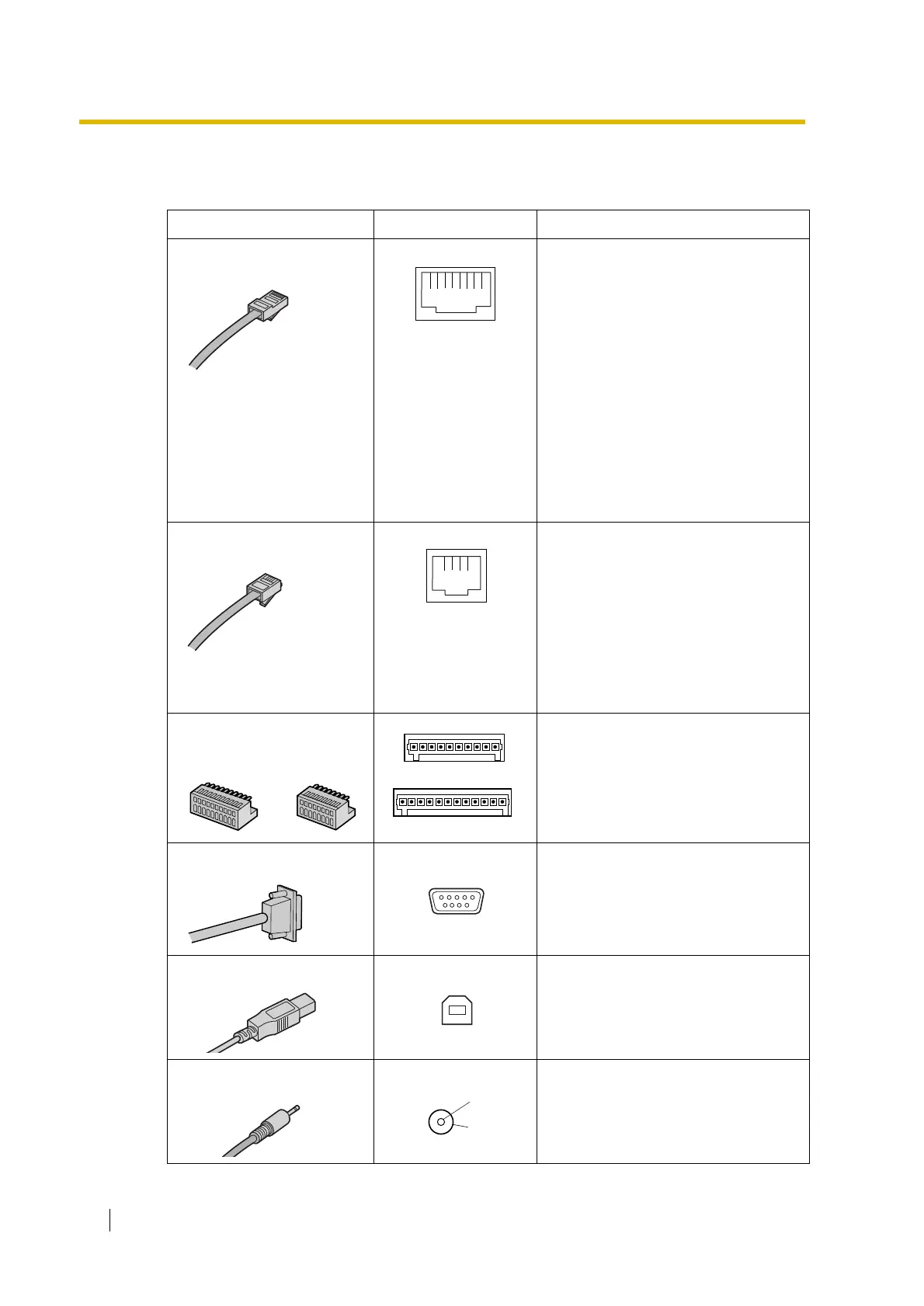

6.2.8 Types of Connectors
Connector Type Pin Number Used for
(Twisted pair cable)
• DPH4 (KX-TDA3161NE)
• DPH2 (KX-TDA3162)
• DLC4 (KX-TDA3171NE)
• DLC8 (KX-TDA3172NE)
• SLC4 (KX-TDA3173NE)
• SLC8 (KX-TDA3174NE)
• LCOT4 (KX-TDA3180NE)
• LCOT2 (KX-TDA3183)
• BRI2 (KX-TDA3280)
• BRI1 (KX-TDA3283)
• IP-GW4 (KX-TDA3480)
• Super Hybrid Ports (Main Board)
*1
(Twisted pair cable)
• DPH4 (KX-TDA3161)
• DLC4 (KX-TDA3171)
• DLC8 (KX-TDA3172)
• SLC4 (KX-TDA3173)
• SLC8 (KX-TDA3174)
• LCOT4 (KX-TDA3180)
• DID4 (KX-TDA3182)
• Super Hybrid Ports (Main Board)
*2
• DPH4 (KX-TDA3161)
• DPH2 (KX-TDA3162)
• Main Board
• Main Board
• Main Board (Pager port, MOH
port)
RJ45
1 8
RJ11
4 1
10-pin
Terminal Block
8-pin
Terminal Block
81
101
RS-232C
6 9
1 5
USB
2
3
1
4
Mini Plug
+
-
