6.2 Installation of the Hybrid IP-PBX — KX-TDA30
Installation Manual 269

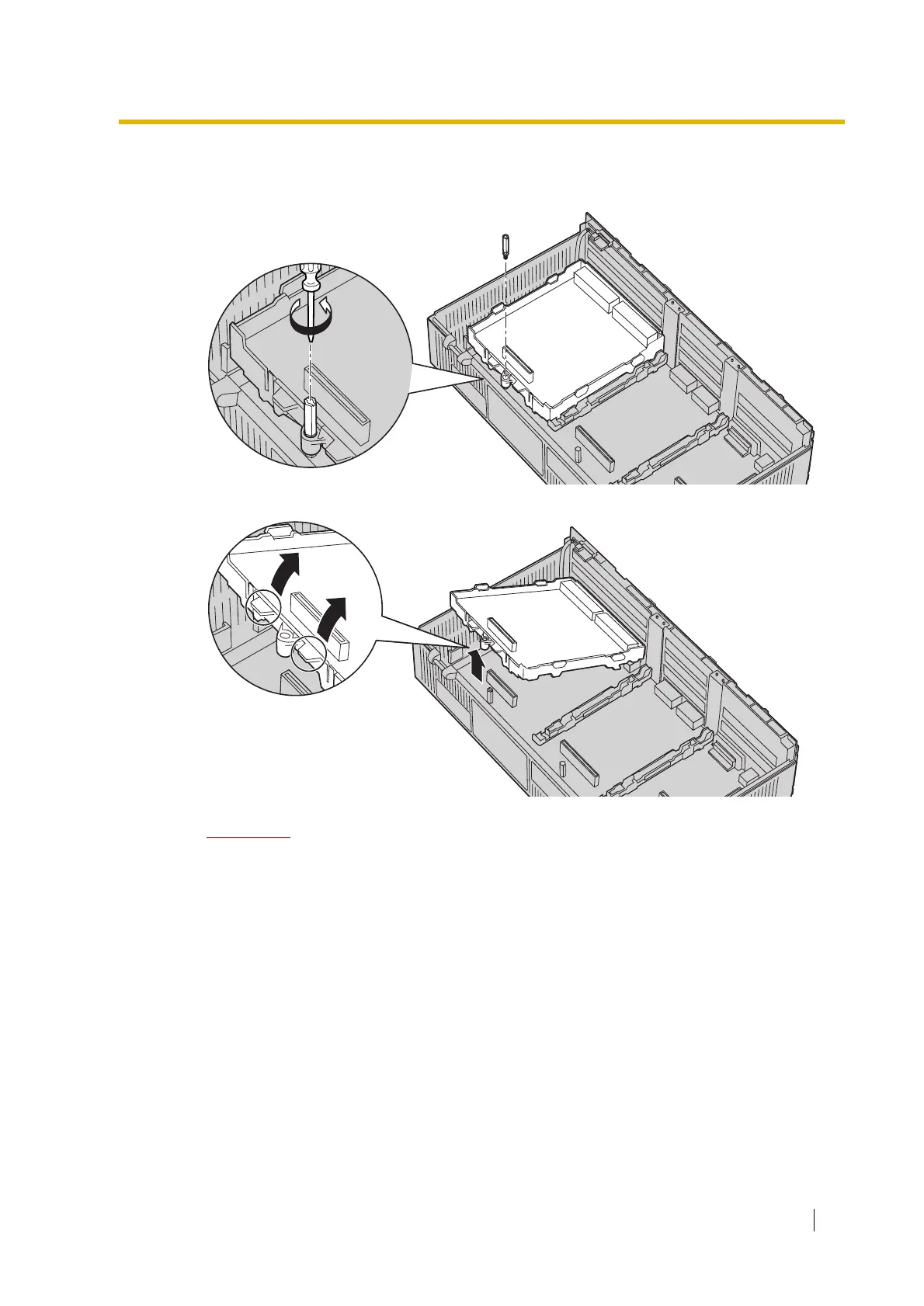

Removing the Optional Service Cards
1. Loosen and remove the extension bolt.
2. Holding the protrusions of the card, pull the card in the direction of the arrows.
CAUTION
When removing the optional service cards, do not put pressure on any parts of the main
board. Doing so may result in damage to the Hybrid IP-PBX.
To Next Page
