6.2 Installation of the Hybrid IP-PBX — KX-TDA30
272 Installation Manual

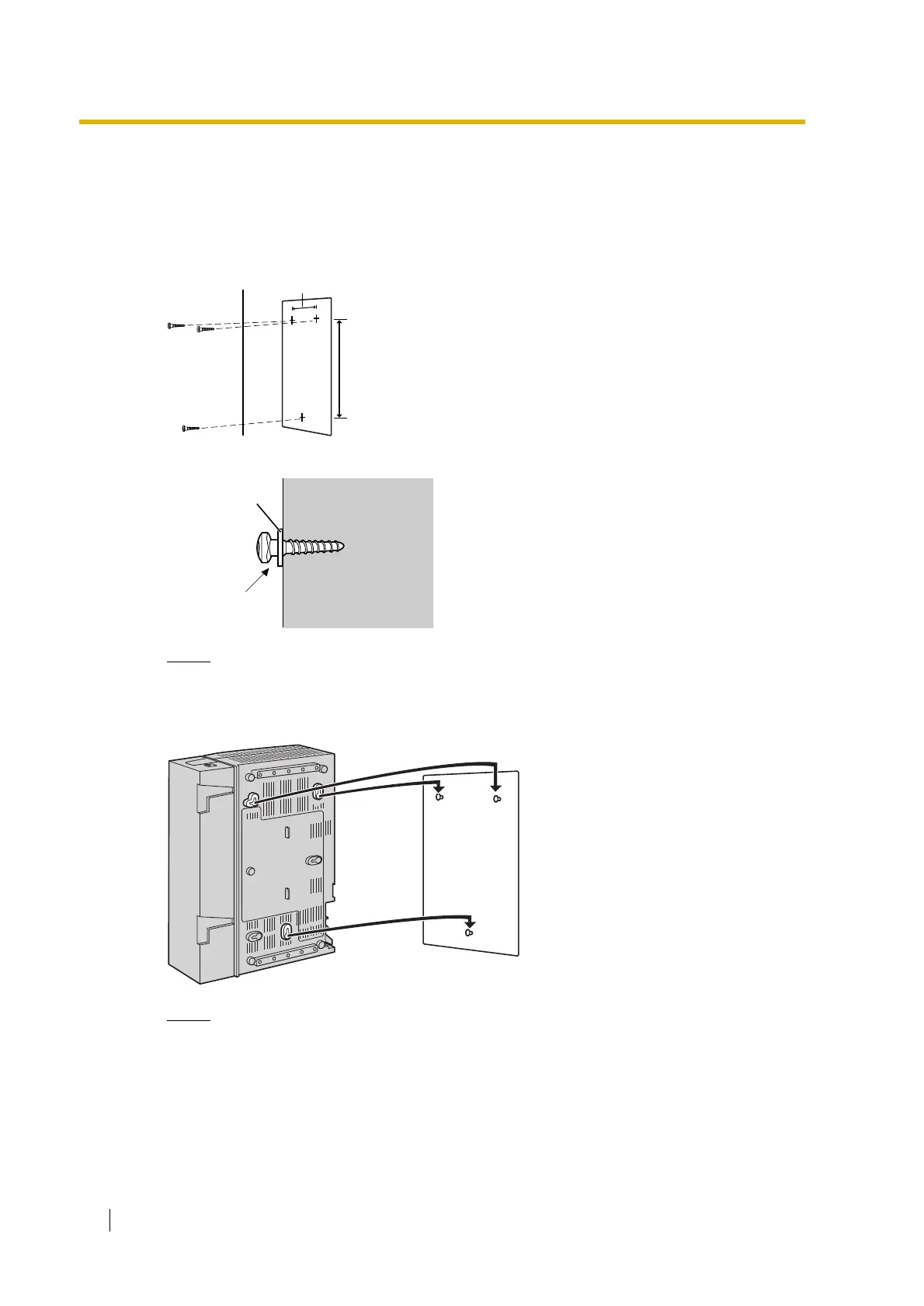

6.2.9 Wall Mounting (KX-TDA30)
Mounting on Wooden Wall
1. Place the reference for wall mounting (on the last page of this manual) on the wall to mark
the 3 screw positions.
2. Install the screws and washers (included) in the wall.
Notes
• Make sure that the screw heads are at the same distance from the wall.
• Install the screws perpendicular to the wall.
3. Hook the main unit on the screw heads.
Notes
• Do not block the openings of the cabinet. Allow space of at least 20 cm above and 10
cm at the sides of the cabinet.
• Make sure that the wall behind the cabinet is flat and free of obstacles, so that the
openings on the back of the cabinet will not be blocked.
• Be careful not to drop the cabinet.
250 mm
130 mm
Washer
Drive the screw
to this position.
To Next Page
