6.5 Installation of the Other Cards — KX-TDA30
6.5.1 DPH4 Card
Function
4-port doorphone card for 4 doorphones and 4 door openers.
Accessory and User-supplied Items
User-supplied (not included): Copper wire
Notice
The connector type may be RJ45 or RJ11 depending on the country/area.
Shown above is a card having the RJ45 connectors.
Note
For details about connection to doorphones and door openers, refer to "6.9.1 Connection
of Doorphones and Door Openers".
Accessory (included): Extension Bolt × 1, Strap × 1, 8-pin terminal block × 1, 10-pin
terminal block × 1, Telephone Line Cord × 2, Terminal Box × 1 (for
DPH4 card with RJ45 connectors) or 2 (for DPH4 card with RJ11
connectors)

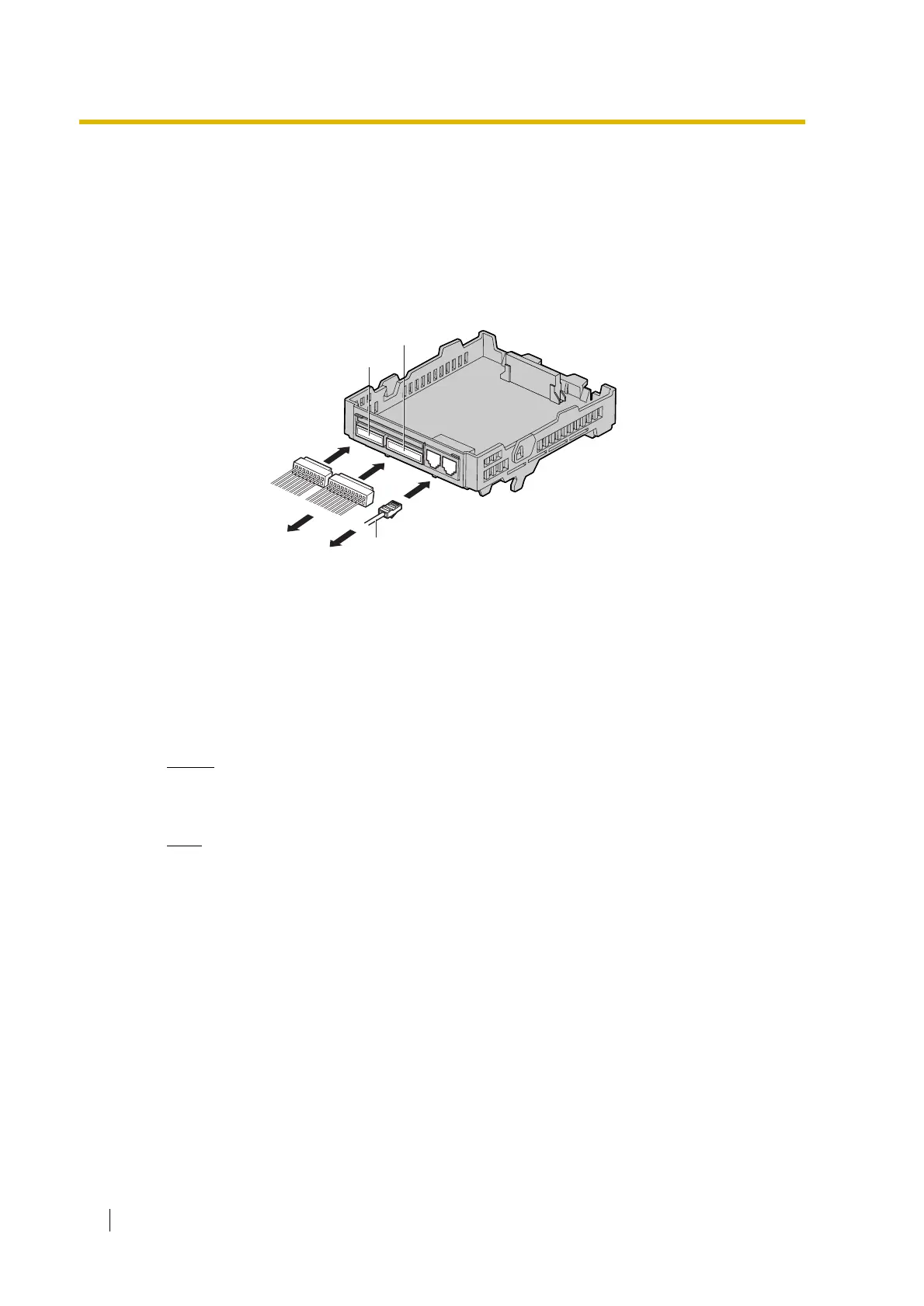

To doorphones
To door openers
Telephone Line Cord
8-pin
10-pin
