2.6 Installation of the Other Cards — KX-TDA100/KX-TDA200
118 Installation Manual
2.6.2 DPH4 Card
Function
4-port doorphone card for 4 doorphones and 4 door openers. To be mounted on the OPB3
card.
Accessory and User-supplied Items
Accessory (included): Screws × 3, 10-pin terminal block × 1, 8-pin terminal block × 1
User-supplied (not included): Copper wire
Notes
• Maximum of 3 DPH4 cards can be mounted on the OPB3 card.
• For details about connection to doorphones and door openers, refer to "2.10.1
Connection of Doorphones and Door Openers".

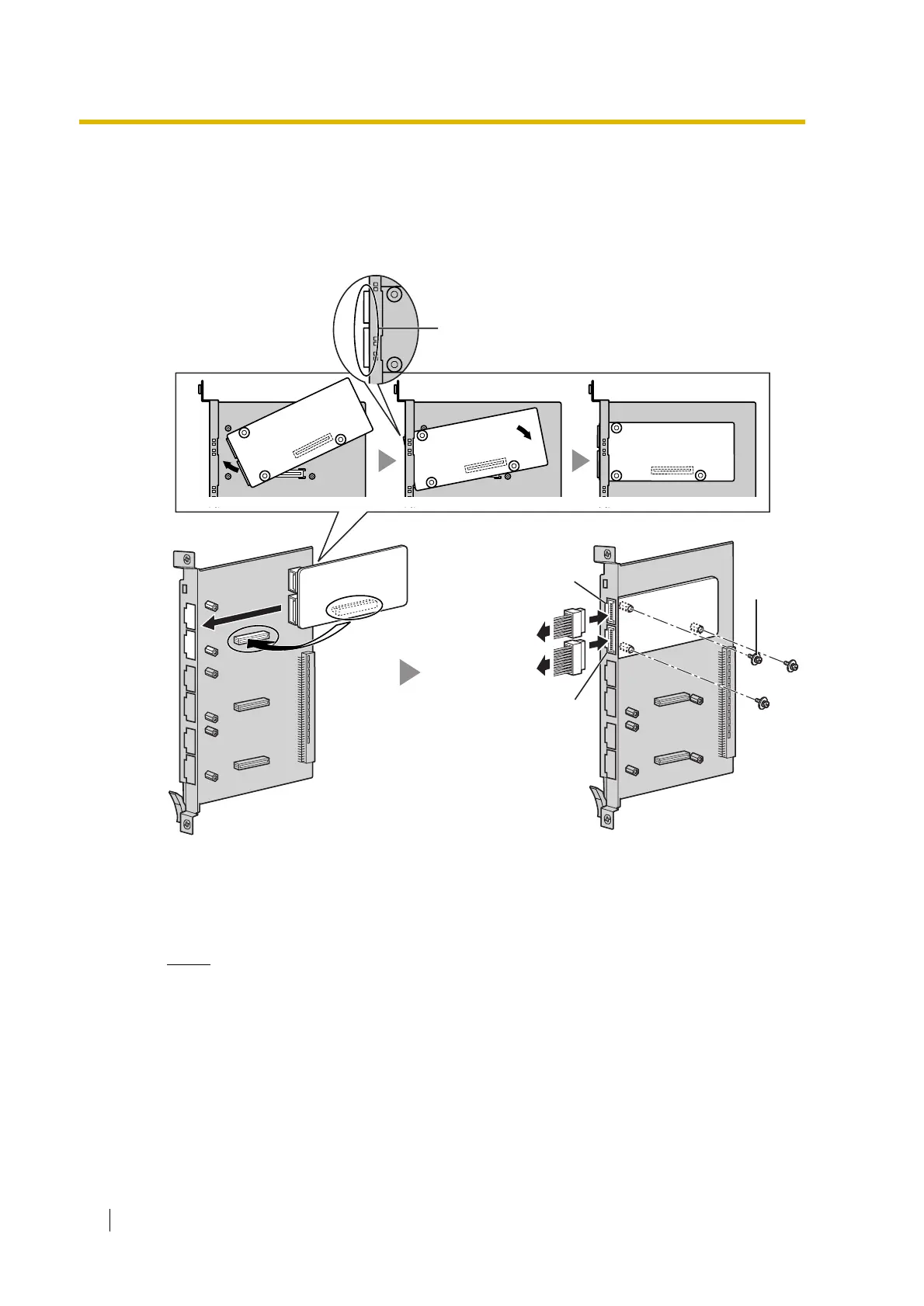

Screw
DPH4 Card
OPB3 Card
Fully insert the connectors through
the panel openings.
To door openers
To doorphones
10-pin
8-pin
