6.3 Installation of the Trunk Cards — KX-TDA30
Installation Manual 283

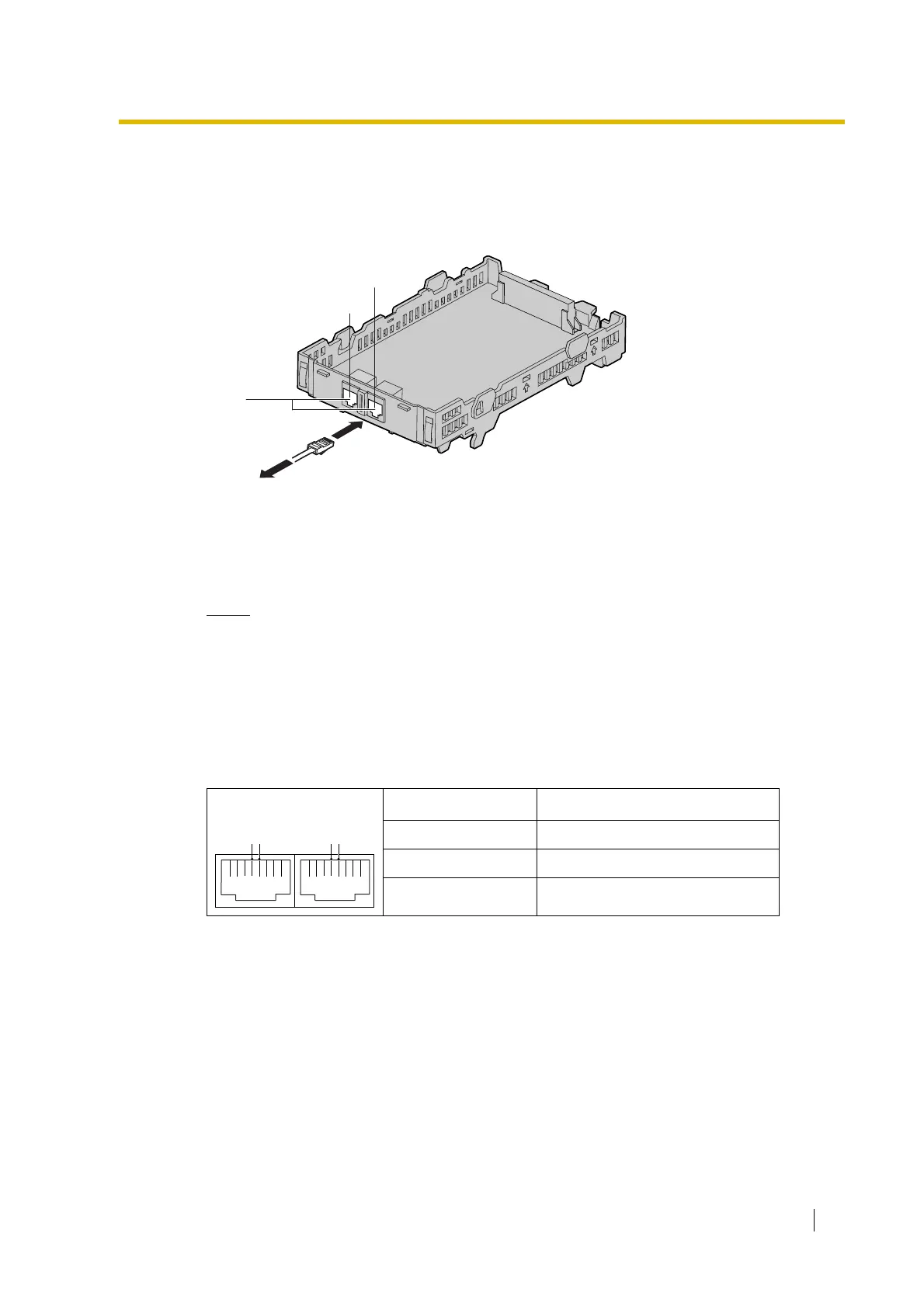

6.3.2 LCOT2 Card
Function
2-port analogue trunk card with 2 power failure transfer (PFT) ports.
Accessory and User-supplied Items
Accessory (included): Extension Bolt × 1, Strap × 1
User-supplied (not included): RJ45 connector
Notes
• To confirm the trunk connection, refer to "Confirming the Trunk Connection" in "6.12.1
Starting the Hybrid IP-PBX".
• For details about power failure transfer, refer to "6.11.1 Power Failure Connections".
Pin Assignments
RJ45 Connector
Signal Name Function
RRing
TTip
– Reserved
To trunk
RJ45
PFT Port 1
PFT Port 2
9 161 8
T R T R
