2.2 Installation of the Hybrid IP-PBX — KX-TDA100/KX-TDA200
42 Installation Manual
2.2.4 Installing/Replacing the Power Supply Unit
Function
Accessory and User-supplied Items
Accessory (included): Screws × 4
User-supplied (not included): earthing wire, Back-up Battery Cable (KX-A228 for PSU-S and
PSU-M, or KX-A229 for PSU-L)
Notes
• For details about frame earth connection, refer to "2.2.5 Frame Earth Connection".
• For details about backup batteries connection, refer to "2.2.6 Backup Batteries
Connection".
Safety Instructions
Each PSU complies with Safety Class 1 of IEC60950, EN60950, UL60950,
CAN/CSA-C22.2 No.60950, and AS/NZS60950; therefore a protective earth connection exists
between the mains outlet ground and the PSU case. To ensure the PBX chassis is safely
grounded, it is essential that the PSU case be securely fastened to the PBX chassis with the 4
screws provided with each PSU.
When installing or replacing PSU, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:

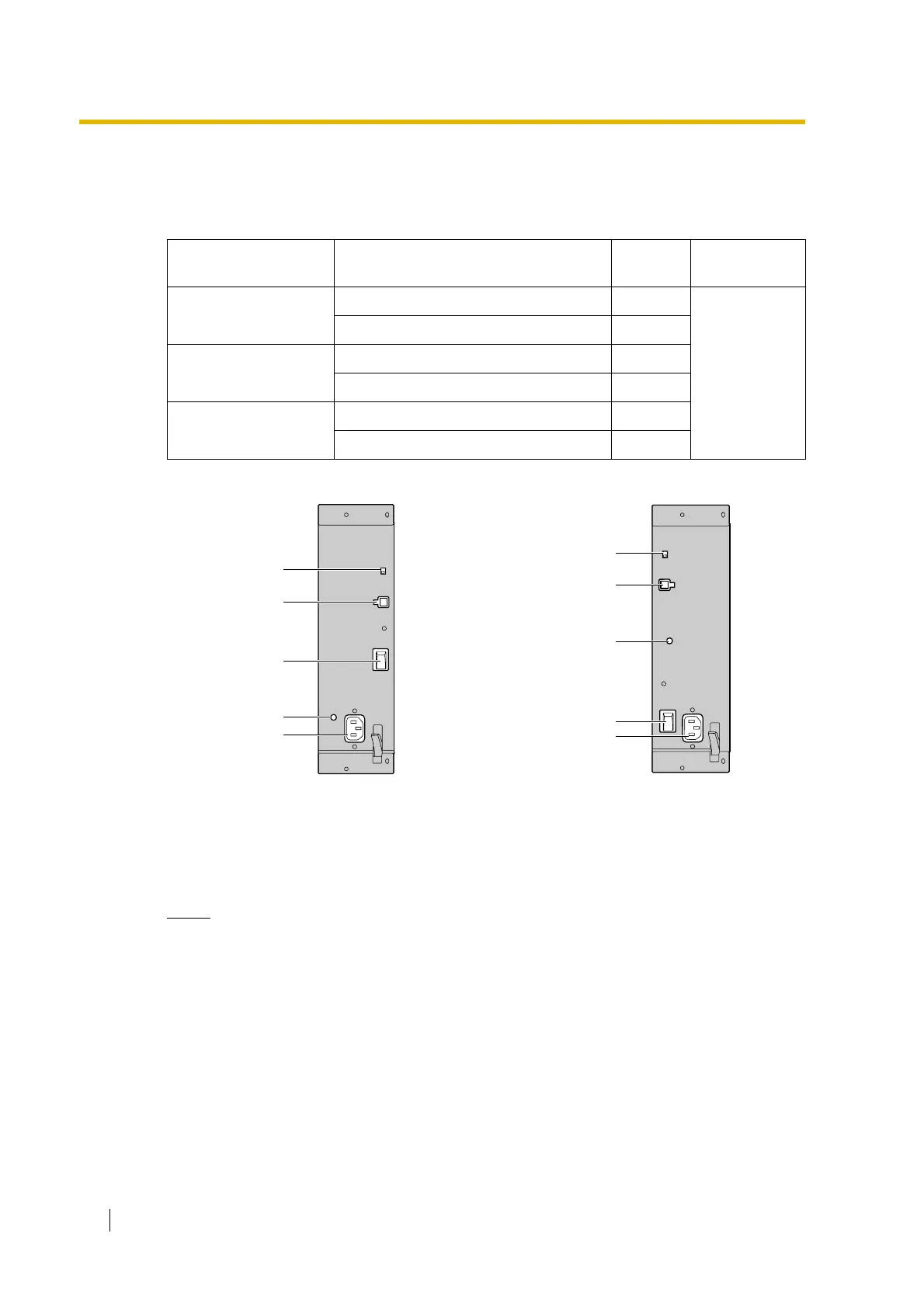

PSU Type Lower/Upper Input Voltage Range Current Input
Frequency
PSU-S
(for KX-TDA100)
Lower: 100 V AC to 130 V AC 1.4 A
50 Hz or 60 Hz
Upper: 200 V AC to 240 V AC 0.8 A
PSU-M
(for KX-TDA100/200)
Lower: 100 V AC to 130 V AC 2.5 A
Upper: 200 V AC to 240 V AC 1.4 A
PSU-L
(for KX-TDA200)
Lower: 100 V AC to 130 V AC 5.1 A
Upper: 200 V AC to 240 V AC 2.55 A
AC Inlet
Power Switch
AC Inlet
Power Switch
PSU-S PSU-M/PSU-L
Battery Switch
Earth Terminal
Battery Switch
Earth Terminal
Battery Connector
Battery Connector
To Next Page
