2.2 Installation of the Hybrid IP-PBX — KX-TDA100/KX-TDA200
Installation Manual 57
2.2.10 Fastening Amphenol Type Connector
An Amphenol 57JE type connector is used on some of the optional service cards.
To connect an Amphenol connector, use the spring latch or screw to fix the upper part and use
Velcro® tape to fix the lower part of the connector.

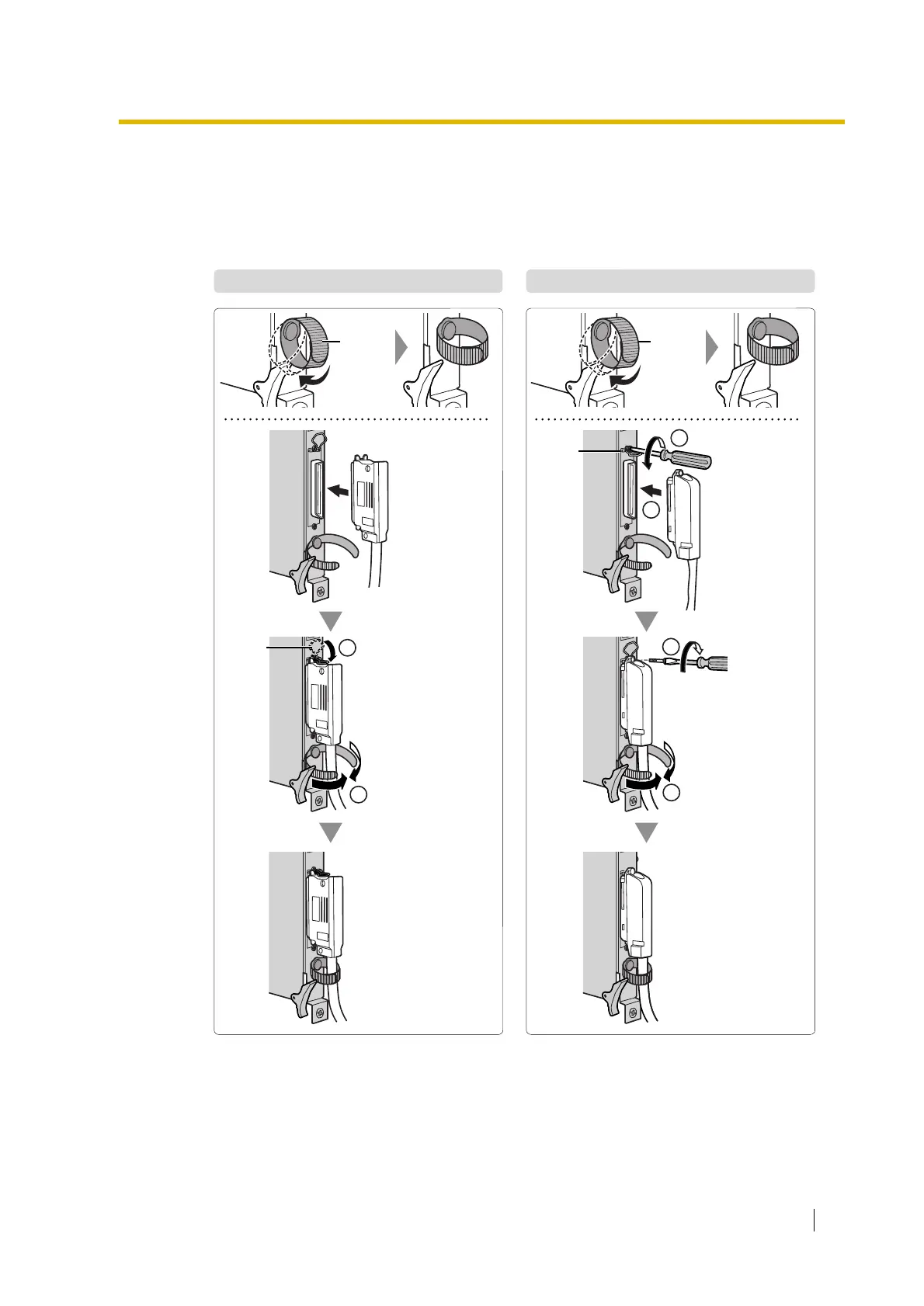

Type A (Spring Latch + Velcro Tape)
Type B (Screw + Velcro Tape)
Velcro
Tape
Velcro
Tape
2
1
2
2
1
Spring
Latch
1
Spring
Latch
Remove the
screw on the
optional service
card.
Insert the screw (included
with the Amphenol or
optional service card).
