Panasonic KX-TDA30

2.2 Installation of the Hybrid IP-PBX — KX-TDA100/KX-TDA200
Installation Manual 53

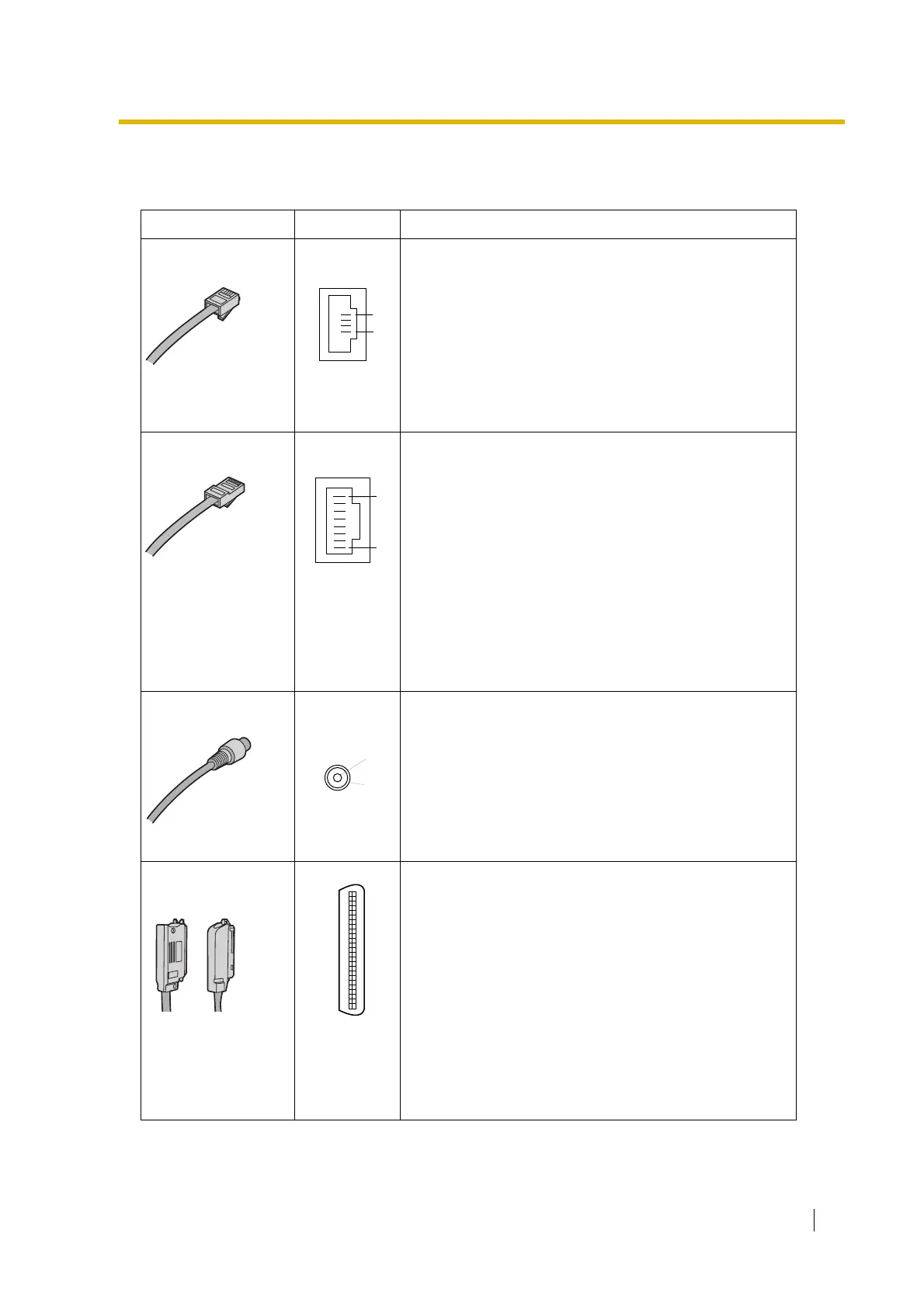

2.2.8 Types of Connectors
Connector Type Pin Number Used for
(Twisted pair cable)
• DHLC8 (KX-TDA0170)
• SLC8 (KX-TDA0173)
• SLC16 (KX-TDA0174)
• MSLC16 (KX-TDA0175)
• LCOT8 (KX-TDA0180)
• LCOT16 (KX-TDA0181)
• LCOT4 (KX-TDA0183)
(Twisted pair cable)
• CSIF4 (KX-TDA0143)
• CSIF8 (KX-TDA0144)
• T1 (KX-TDA0187)
• E1 (KX-TDA0188)
• BRI4 (KX-TDA0284)
• BRI8 (KX-TDA0288)
• PRI30 (KX-TDA0290CE/CJ)
• PRI23 (KX-TDA0290)
• CTI-LINK (KX-TDA0410)
• IP-GW4 (KX-TDA0480)
• IP-GW4E (KX-TDA0484)
• E1 (KX-TDA0188)
• PRI30 (KX-TDA0290CE/CJ)
(Shielded twisted
pair cable)
• DHLC8 (KX-TDA0170)
• DLC8 (KX-TDA0171)
• DLC16 (KX-TDA0172)
• SLC8 (KX-TDA0173)
• SLC16 (KX-TDA0174)
• MSLC16 (KX-TDA0175)
• LCOT8 (KX-TDA0180)
• LCOT16 (KX-TDA0181)
• DID8 (KX-TDA0182)
• LCOT4 (KX-TDA0183)
• E&M8 (KX-TDA0184)
RJ11
1
4
RJ45
8
1
BNC
1
2
Amphenol
Type A Type B
50 25
26 1
