2.5 Installation of the Extension Cards — KX-TDA100/KX-TDA200
106 Installation Manual
2.5.2 DHLC8 Card
Function
8-port digital hybrid extension card for DPTs, APTs, SLTs, DSS consoles, and PT-interface
CSs, with 2 power failure transfer (PFT) ports.
Accessory and User-supplied Items
Accessory (included): Screws × 2, Ferrite core × 1
User-supplied (not included): Amphenol connector
Notes
• Attach the included ferrite core to the cable. Refer to "2.2.9 Attaching a Ferrite Core".
• To connect the Amphenol connector, refer to "2.2.10 Fastening Amphenol Type
Connector".
• For details about power failure transfer, refer to "2.12.1 Power Failure Connections".

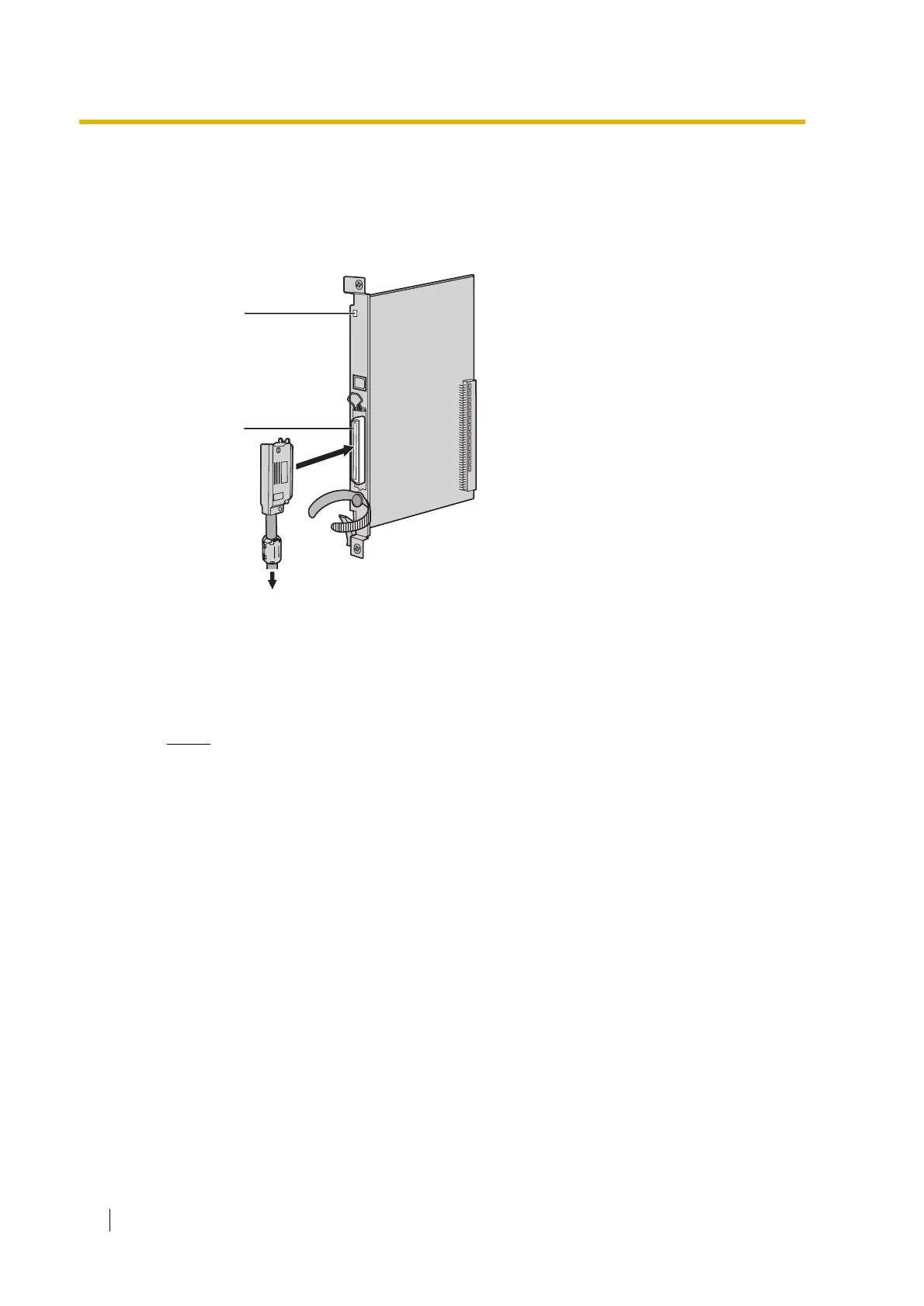

LED
Amphenol
To extensions
