2.4 Installation of the Trunk Cards — KX-TDA100/KX-TDA200
Installation Manual 73
2.4 Installation of the Trunk Cards — KX-
TDA100/KX-TDA200
2.4.1 LCOT4, LCOT8, and LCOT16 Cards
Function
Accessory and User-supplied Items
Accessory (included): Screws × 2
User-supplied (not included): Amphenol connector
Notes
• To connect the Amphenol connector, refer to "2.2.10 Fastening Amphenol Type
Connector".
• For details about power failure transfer, refer to "2.12.1 Power Failure Connections".
• To confirm the trunk connection, refer to "Confirming the Trunk Connection" in "2.13.1
Starting the Hybrid IP-PBX".
LCOT4: 4-port analogue trunk card with 2 power failure transfer (PFT) ports.
LCOT8: 8-port analogue trunk card with 2 power failure transfer (PFT) ports. One CID8 or
CID/PAY8 card can be mounted on the LCOT8 card (refer to "2.4.3 CID/PAY8
Card" and "2.4.4 CID8 Card").
LCOT16: 16-port analogue trunk card with 4 power failure transfer (PFT) ports. A maximum
of 2 CID8 and CID/PAY8 cards can be mounted on the LCOT16 card (refer to
"2.4.3 CID/PAY8 Card" and "2.4.4 CID8 Card").

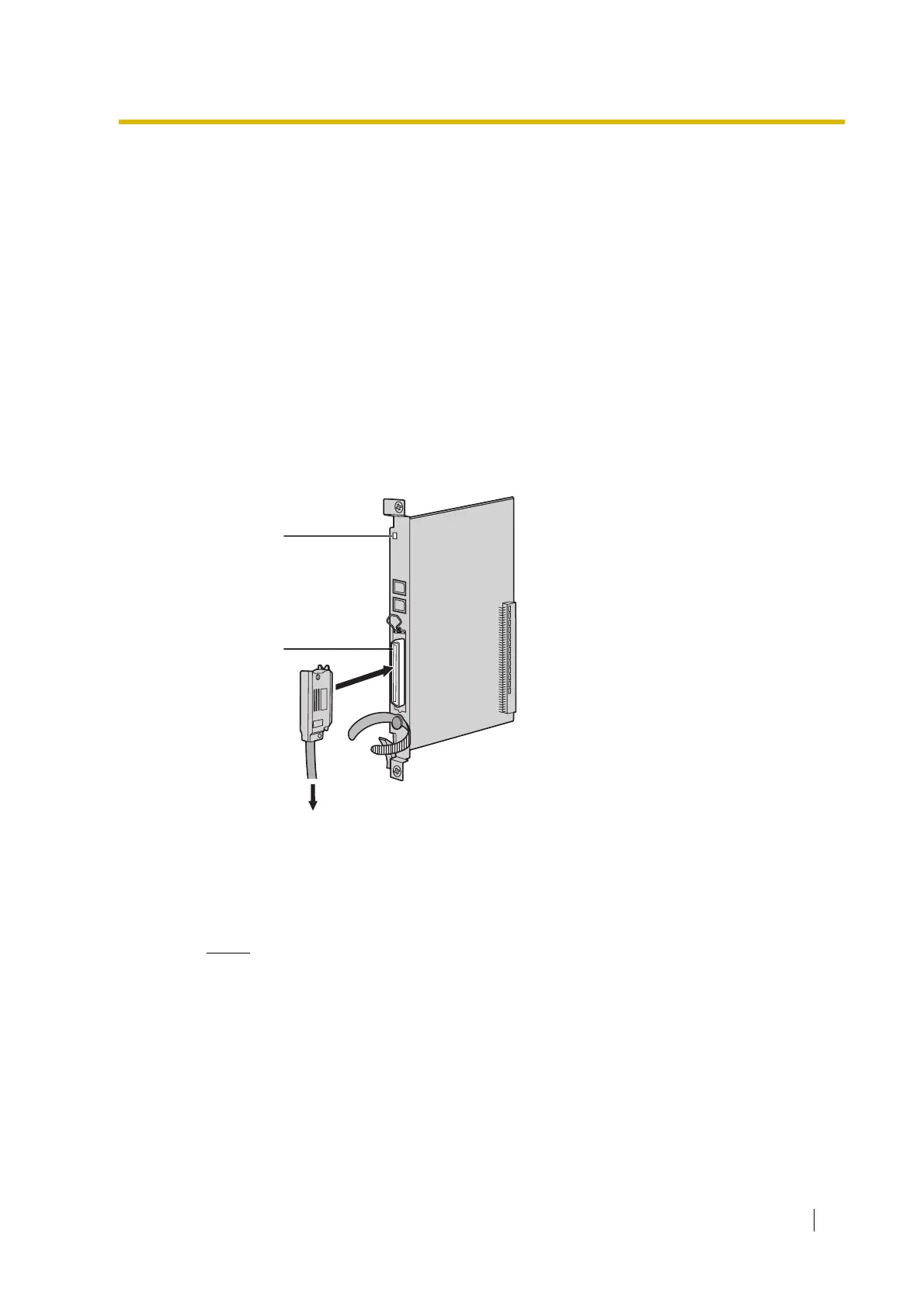

Amphenol
To trunk
LED
To Next Page
