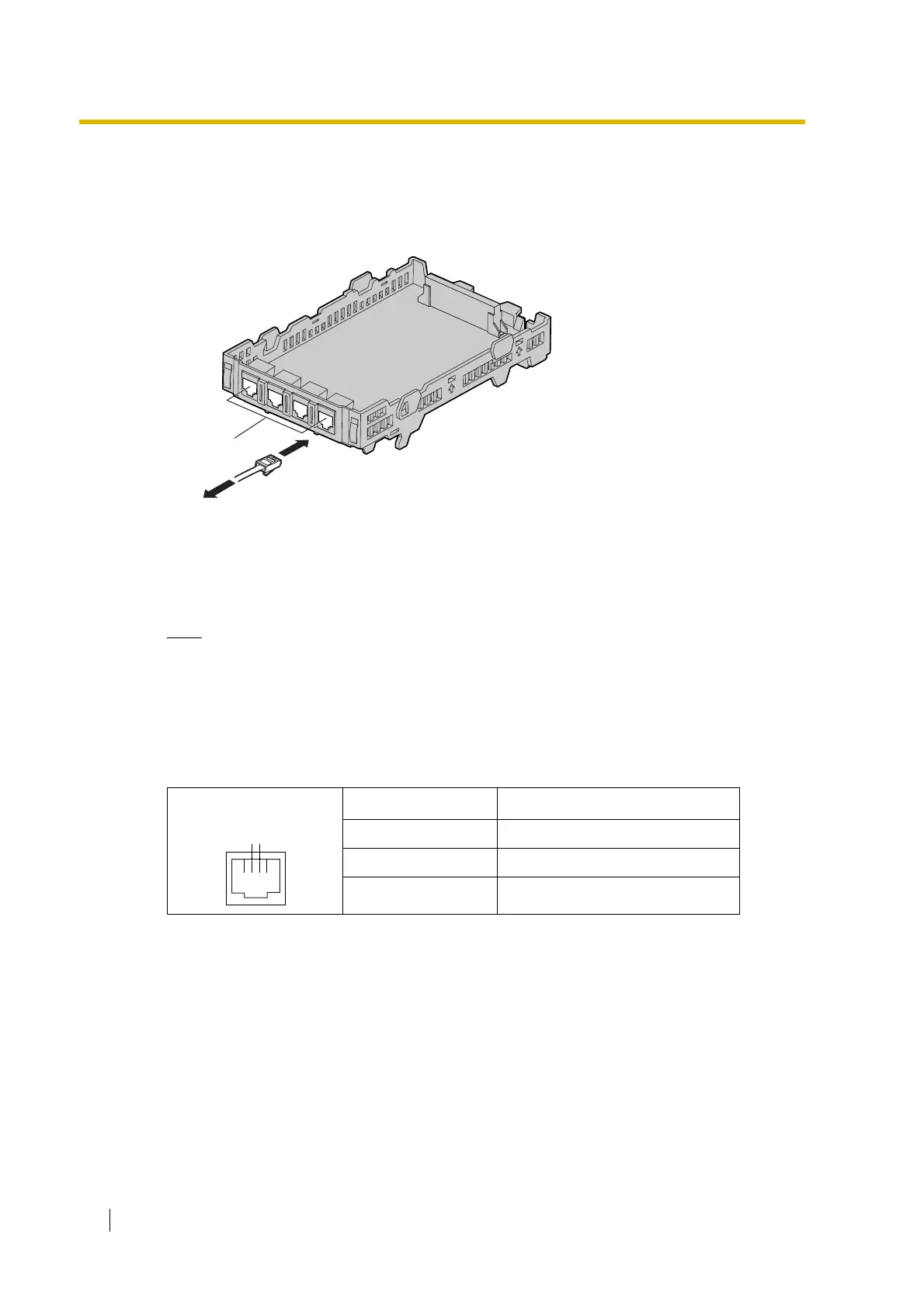

6.3 Installation of the Trunk Cards — KX-TDA30
284 Installation Manual
6.3.3 DID4 Card
Function
4-port DID trunk card.
Accessory and User-supplied Items
Accessory (included): Extension Bolt × 1, Strap × 1
User-supplied (not included): RJ11 connector
Note
To confirm the trunk connection, refer to "Confirming the Trunk Connection" in "6.12.1
Starting the Hybrid IP-PBX".
Pin Assignments
RJ11 Connector
Signal Name Function
RRing
TTip
– Reserved
To trunk
RJ11
4 1
T R
To Next Page
