2.11 Connection of Peripherals — KX-TDA100/KX-TDA200
192 Installation Manual
2.11 Connection of Peripherals — KX-TDA100/
KX-TDA200

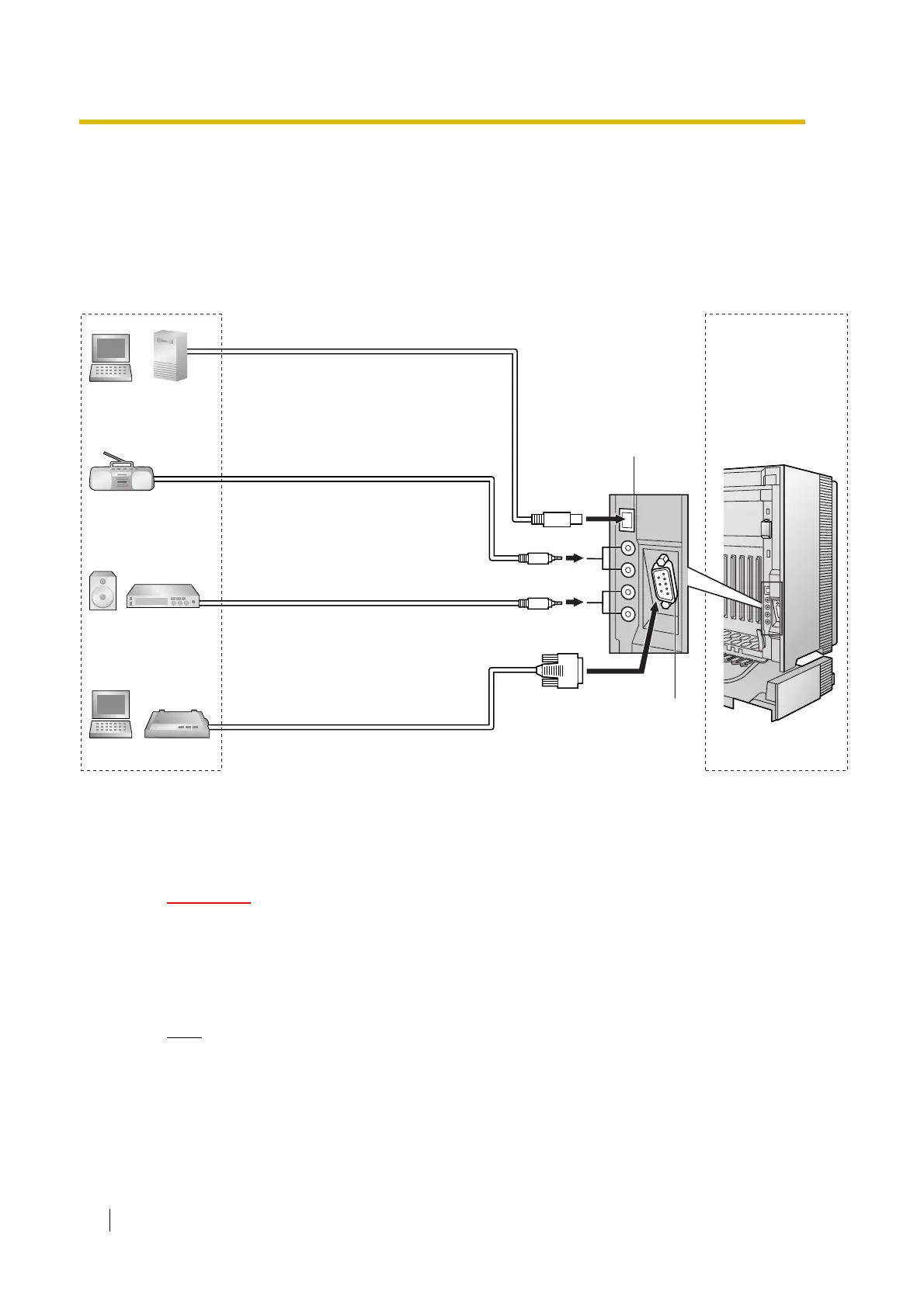

2.11.1 Connection of Peripherals
BGM/MOH
The Hybrid IP-PBX provides Background Music and Music on Hold. Up to 2 external music
sources (e.g., user-supplied radios) can be connected to the Hybrid IP-PBX.
CAUTION
• Wiring should be done carefully to prevent undue force being exerted on the plug.
Otherwise, music may intermittent.
• External Music Jacks are SELV ports and should only be connected to approved
SELV devices, or in Australia, via the Line Isolation Unit with the Telecommunications
Compliance Label.
Note
When the Hybrid IP-PBX and external music sources are not connected to the same
earth, hum noise may be induced into Background Music and Music on Hold.
BGM/
Music on Hold
Pager:
Amplifier/Speaker
PC
Printer
PC
Cable Maximum Distance
ø 0.4 mm: Under 10 m
ø 0.5 mm: Under 10 m
ø 0.6 mm: Under 10 m
CAT 5: Under 10 m
Cable Maximum Distance
ø 0.4 mm: Under 10 m
ø 0.5 mm: Under 10 m
ø 0.6 mm: Under 10 m
CAT 5: Under 10 m
Maximum Distance
Under 5 m
Maximum Distance
Under 2 m
USB
RS-232C
Server PC
