Panasonic KX-TDA30

6.5 Installation of the Other Cards — KX-TDA30
Installation Manual 301

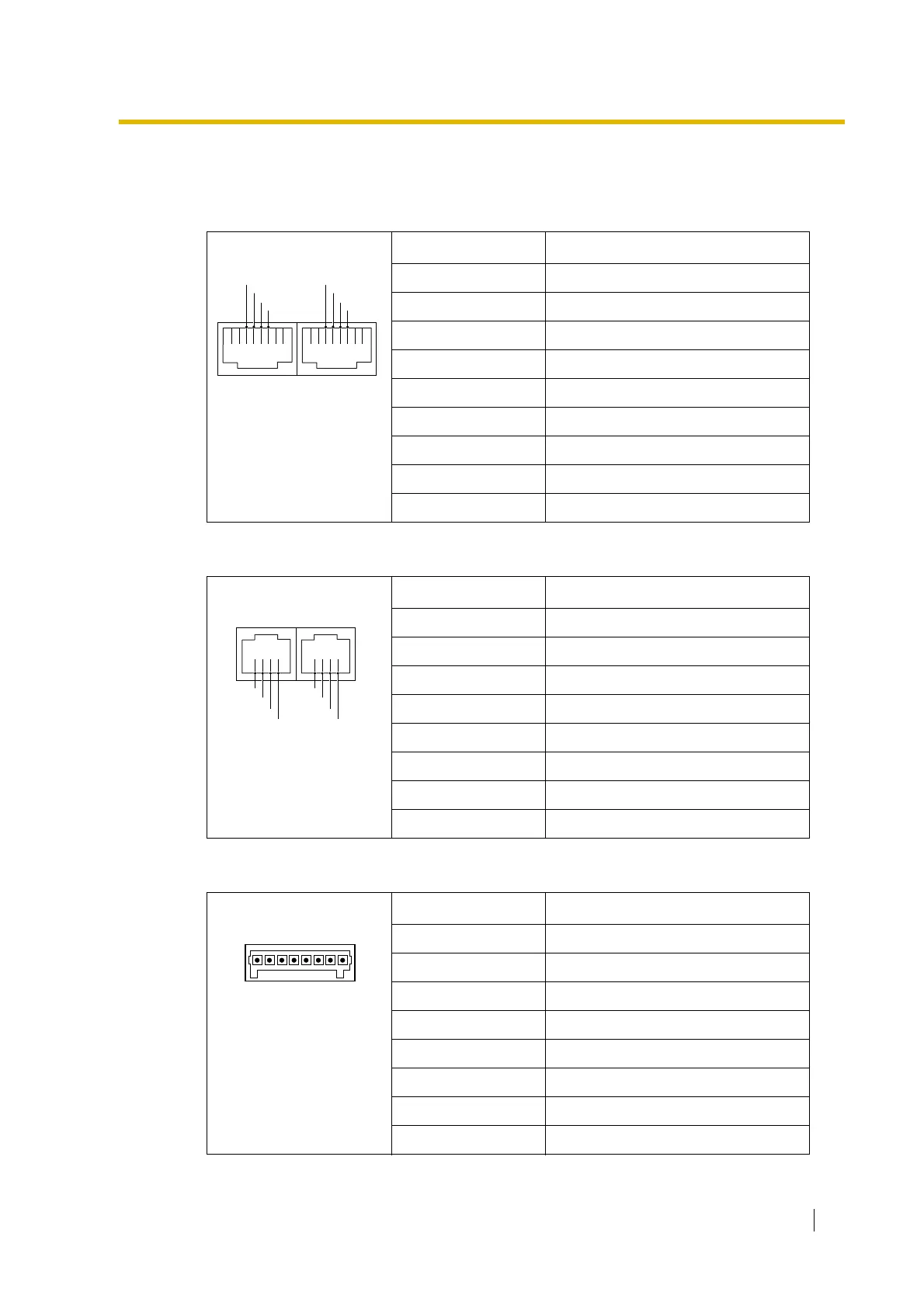

Pin Assignments
RJ45 Connector
RJ11 Connector
8-pin Terminal Block
Signal Name Function
DP2 Doorphone 2 transmit
DP1 Doorphone 1 transmit
com1 Doorphone 1 receive
com2 Doorphone 2 receive
DP4 Doorphone 4 transmit
DP3 Doorphone 3 transmit
com3 Doorphone 3 receive
com4 Doorphone 4 receive
– Reserved
Signal Name Function
DP2 Doorphone 2 transmit
DP1 Doorphone 1 transmit
com1 Doorphone 1 receive
com2 Doorphone 2 receive
DP4 Doorphone 4 transmit
DP3 Doorphone 3 transmit
com3 Doorphone 3 receive
com4 Doorphone 4 receive
Signal Name Function
– Reserved
– Reserved
– Reserved
– Reserved
– Reserved
– Reserved
– Reserved
– Reserved
1 8
DP2
DP1
com1
com2
9 16
DP4
DP3
com3
com4
DP2
DP1
com1
com2
DP4
DP3
com3
com4
5 81 4
1
8
