2.9 Connection of 2.4 GHz Portable Stations — KX-TDA100/KX-TDA200
180 Installation Manual
Using a DHLC/DLC Card

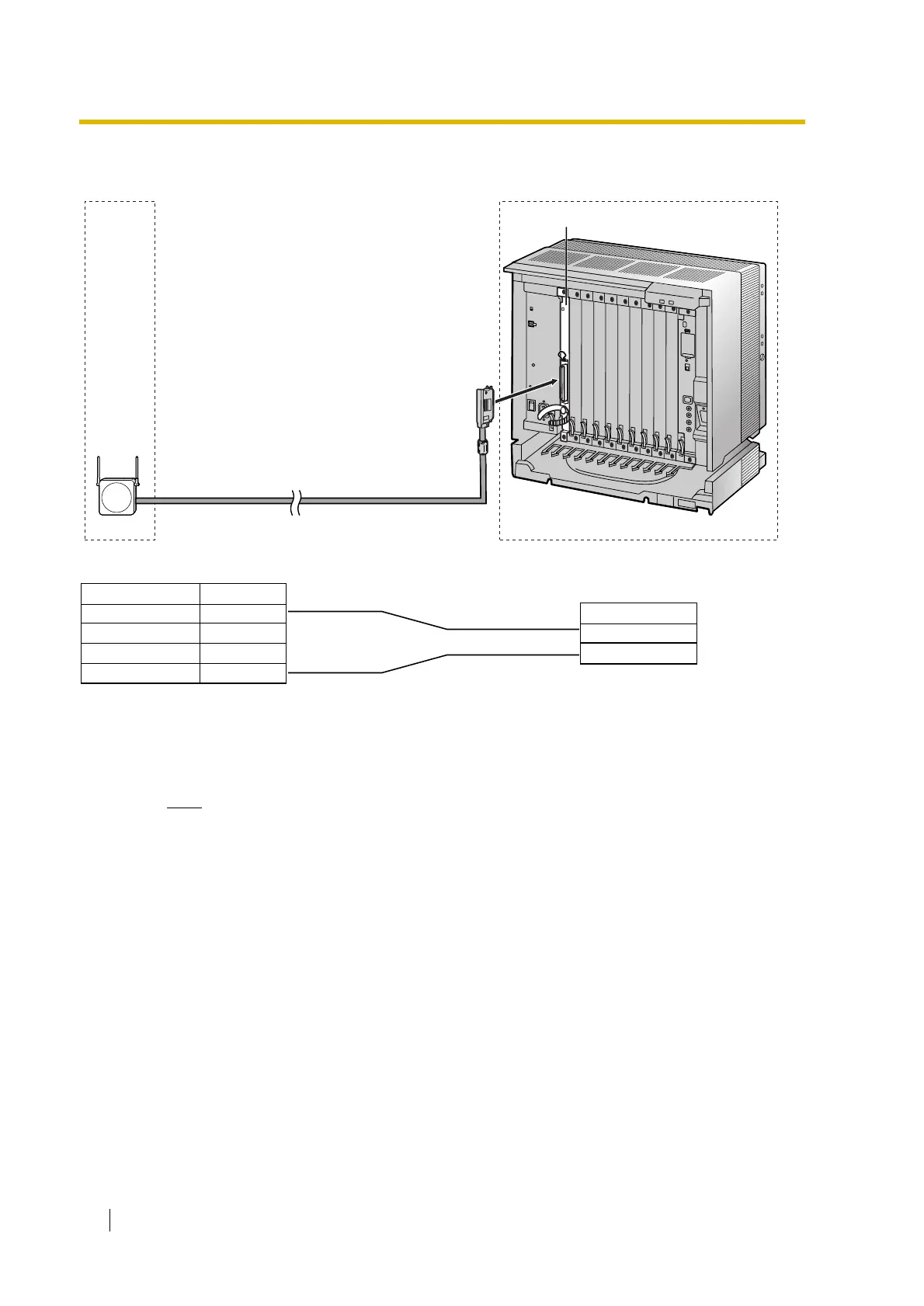

Refer to the following example to connect a CS to the Hybrid IP-PBX.
Accessory and User-supplied Items for the CS
Accessory (included): Screws × 2, Washers × 2
User-supplied (not included): RJ11 connector
Note
For details about DHLC card or DLC card, refer to "2.5.2 DHLC8 Card", "2.5.3 DLC8
Card", or "2.5.4 DLC16 Card".
Signal Name
D1
D2
DHLC/DLC card
(Amphenol)
Cable Maximum Distance
ø 0.4 mm: Under 222 m
ø 0.5 mm: Under 347 m
ø 0.6 mm: Under 500 m
CAT 5: Under 347 m
Signal Name
Pin No.
1
2
3
4
D1
D2
CS (RJ11)
DHLC8 Card
