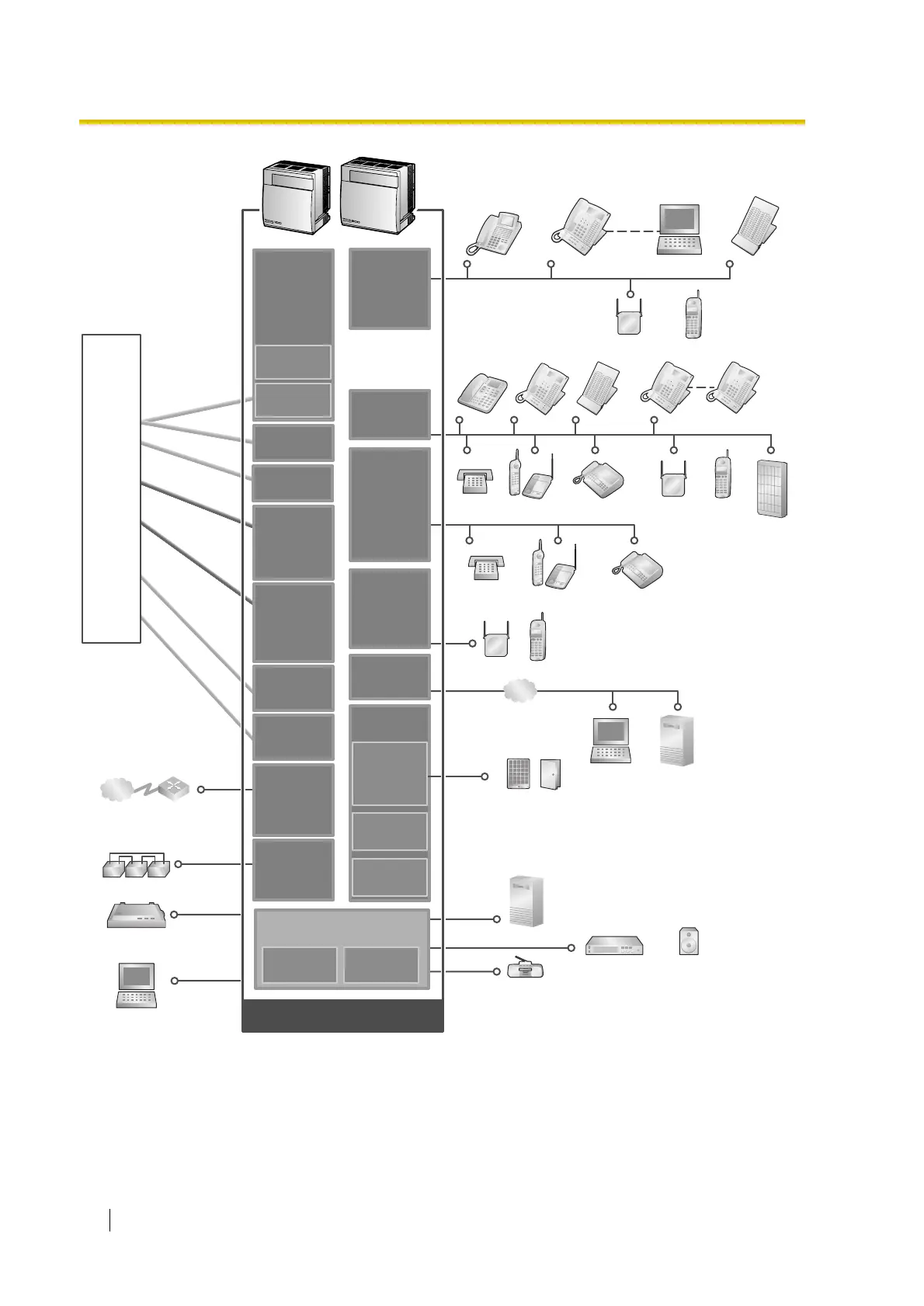

1.2 Basic System Construction — KX-TDA100/KX-TDA200
26 Installation Manual
*1 The KX-TDA100CN and KX-TDA200CN have a power supply unit (PSU-S and PSU-M, respectively)
pre-installed.
*2 Only 1 Server PC can be connected to the Hybrid IP-PBX. Two or more Server PCs cannot be used
simultaneously.
SLT Wireless Phone Fax Machine
CS PS
PCKX-T7636/KX-T7633 DSS
Console
Doorphone & Door Opener
PT-interface CS PS
Private
IP Network
Station Message
Detail Recording (SMDR)
PC
Router
ISDN BRI Line
ISDN BRI Line
(Digital Trunk)
(Digital Trunk)
ISDN BRI Line
(Digital Trunk)
ISDN PRI Line
ISDN PRI Line
(Digital Trunk)
(Digital Trunk)
ISDN PRI Line
(Digital Trunk)
T1 Line
T1 Line
(Digital Trunk)
(Digital Trunk)
T1 Line
(Digital Trunk)
LCOT16
(KX-TDA0181)
LCOT8
(KX-TDA0180)
LCOT4
(KX-TDA0183)
DLC16
(KX-TDA0172)
DLC8
(KX-TDA0171)
DHLC8
(KX-TDA0170)
MSLC16
(KX-TDA0175)
SLC16
(KX-TDA0174)
SLC8
(KX-TDA0173)
CSIF4
(KX-TDA0143)
CSIF8
(KX-TDA0144)
CTI-LINK
(KX-TDA0410)
OPB3
(KX-TDA0190)
E1
(KX-TDA0188)
IP-GW4
(KX-TDA0480)
IP-GW4E
(KX-TDA0484)
PRI30
(KX-TDA0290
CE/CJ)
PRI23
(KX-TDA0290)
BRI4
(KX-TDA0284)
BRI8
(KX-TDA0288)
T1
(KX-TDA0187)
E&M8
(KX-TDA0184)
DID8
(KX-TDA0182)
Analogue
Analogue
Trunk
Trunk
Analogue
Trunk
E & M Line
E & M Line
E & M Line
E1 Line
E1 Line
(Digital Trunk)
(Digital Trunk)
E1 Line
(Digital Trunk)
Telephone
Company
SLT Wireless Phone Fax Machine
Hybrid IP-PBX
Mountable Equipment
DPT
APT DPT DSS Console
PT-interface CS PS
Voice
Processing
System
Batteries
PSU-S/M/L
*
1
(KX-TDA0108/
KX-TDA0104/
KX-TDA0103)
Radio
Amplifier Pager/Speaker
Server PC
*
2
PC
LAN
Server PC
*
2
DPH4
(KX-TDA0161)
DPH2
(KX-TDA0162)
ECHO16
(KX-TDA0166)
MSG4
(KX-TDA0191)
CID/PAY8
(KX-TDA0189)
CID8
(KX-TDA0193)
MPR
(Installed by default)
RMT
(KX-TDA0196)
MEC
(KX-TDA0105)
KX-T7600 DPT KX-T7600 DPT
