Mounting on Concrete or Mortar Wall
CAUTION
Drive mounting screws into the wall. Be careful to avoid touching any metal laths, wire
laths or metal plates in the wall.

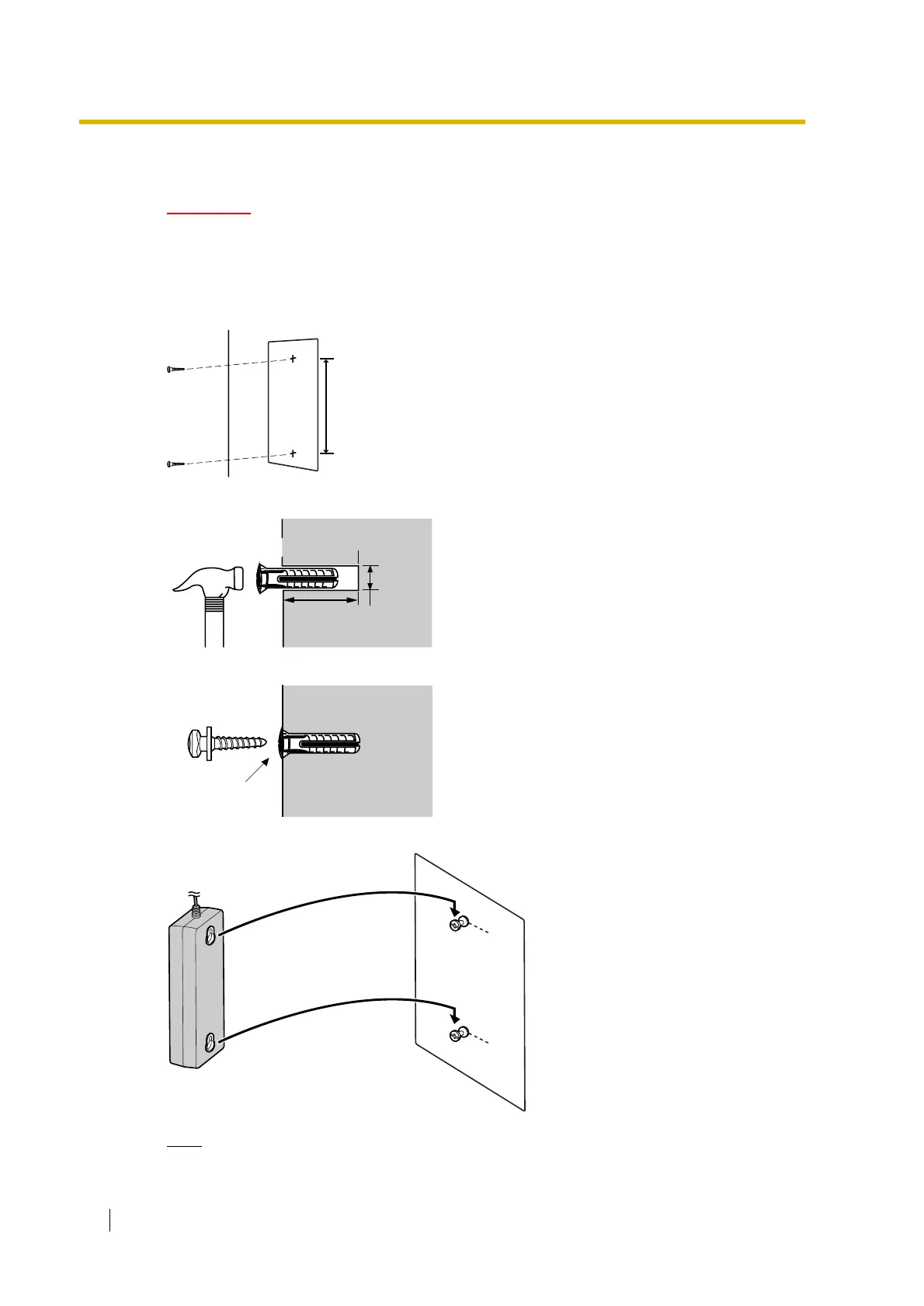

1. Place the reference for wall mounting (on the following page) on the wall to mark the 2
screw positions.
2. Install two anchor plugs (user-supplied) in the wall.
3. Install the screws (included) in the wall.
4. Hook the AC adaptor on the screw heads.
Note
Be careful not to drop the AC adaptor.
110 mm
Hammer
29 mm
Anchor Plug
6.4 mm
Drive the screw
to this position.
To Next Page
