Panasonic KX-TDA30

6.6 Connection of Extensions — KX-TDA30
318 Installation Manual
With KX-T7600E Series DPT

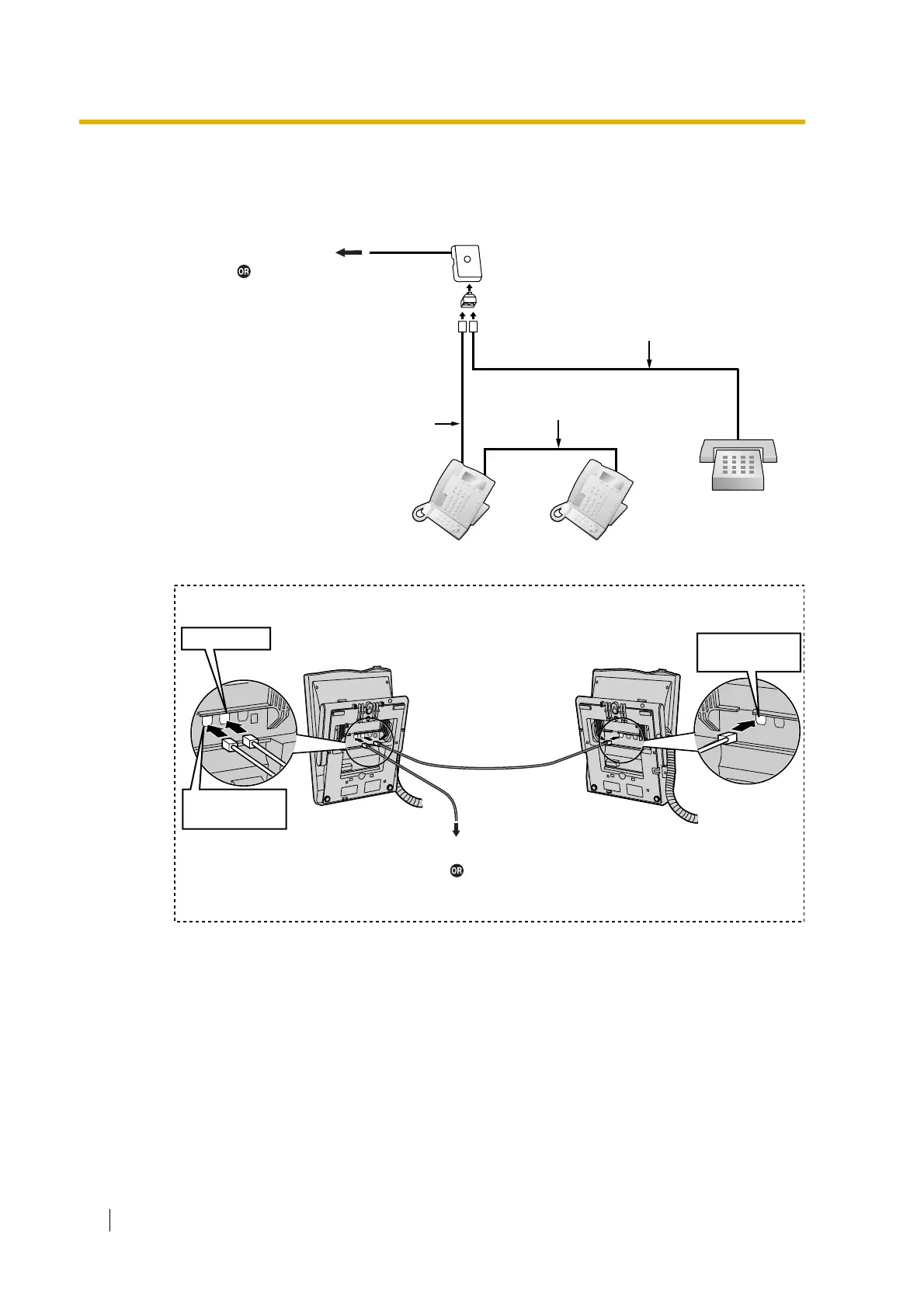

Using a Modular T-Adaptor
4-conductor wiring cord
Connect pins "D1" and "D2".
Slave DPT
SLT
Master DPT
Modular
T-Adaptor
4-conductor wiring cord
Connect pins "D1" and "D2".
2-conductor wiring cord
Connect pins "T" and "R".
Slave DPTMaster DPT
TO MAIN UNIT
/ PABX
TO DIGITAL
TO MAIN UNIT
/ PABX
Cable Maximum Distance
ø 0.4 mm: Under 30 m
ø 0.5 mm: Under 50 m
ø 0.6 mm: Under 60 m
CAT 5: Under 50 m
Back View of DPTs
To DLC4/DLC8 card
To a Super Hybrid Port
(for connection of SLT)
To DLC4/DLC8 card
To a Super Hybrid Port
(for connection of SLT)
