Panasonic KX-TDA30

6.10 Connection of Peripherals — KX-TDA30
Installation Manual 381
Pager
Only 1 paging device (user-supplied) can be connected to the Hybrid IP-PBX.
CAUTION
An External Paging Jack is an SELV port and should only be connected to an approved
SELV device, or in Australia, via the Line Isolation Unit with the Telecommunications
Compliance Label.
PC/Printer (via RS-232C)
The Hybrid IP-PBX is equipped with an RS-232C interface. This interface provides
communication between the Hybrid IP-PBX and the user-supplied devices such as PC or line
printers. The RS-232C port is used for system programming, SMDR, diagnostics and external
system database storage (save/load) functions.
Note
Use an RS-232C cross cable for connection between the Hybrid IP-PBX and PC.

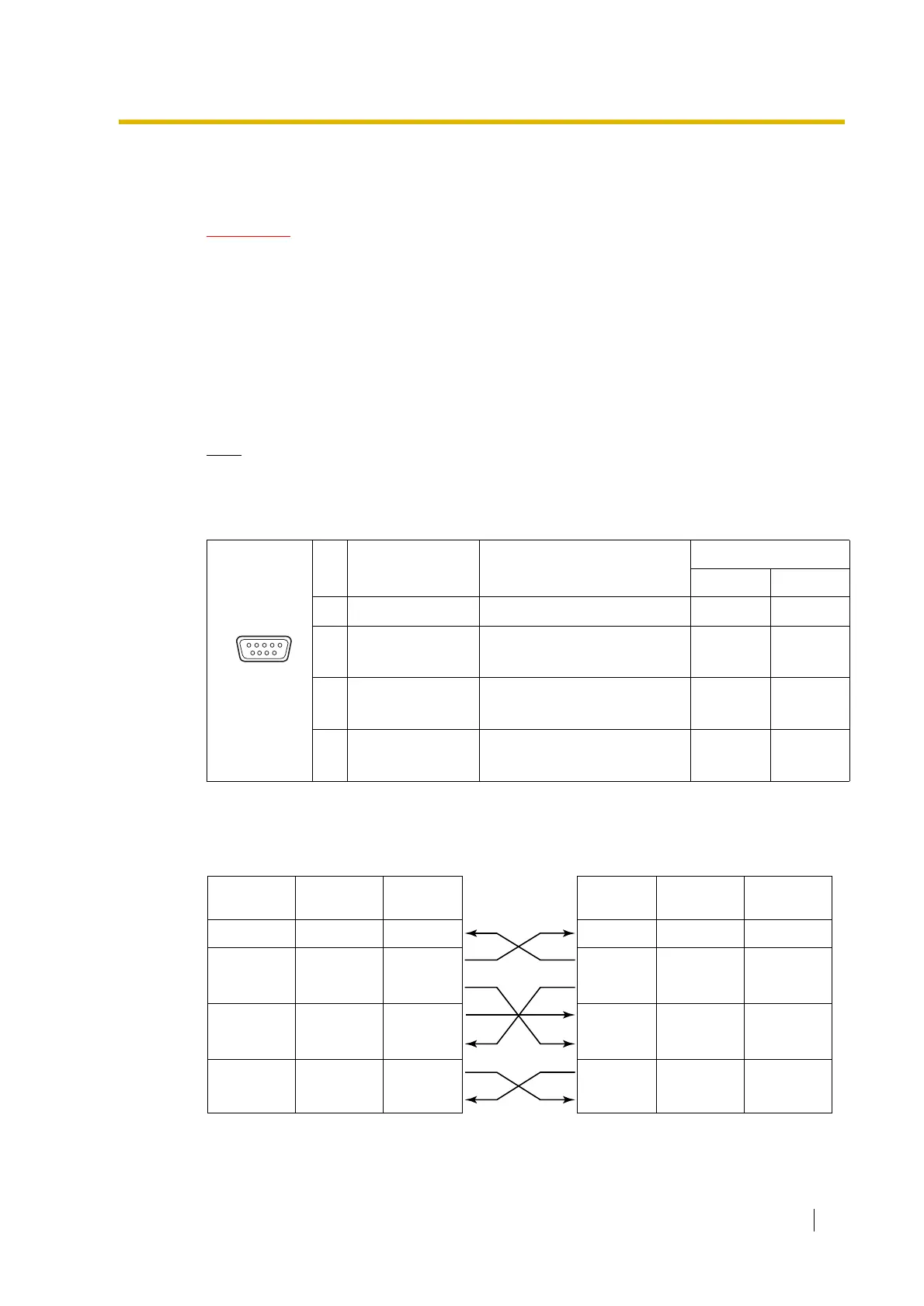

Pin Assignments
Connection Charts
For connecting a printer/PC with a 9-pin RS-232C connector
No. Signal Name Function
Circuit Type
EIA CCITT
2 RD (RXD) Receive Data BB 104
3
4
SD (TXD)
ER (DTR)
Tra ns mi t D at a
Data Terminal Ready
BA
CD
103
108.2
5
6
SG
DR (DSR)
Signal Ground
Data Set Ready
AB
CC
102
107
7
8
RS (RTS)
CS (CTS)
Request To Send
Clear To Send
CA
CB
105
106
6 9
1 5
Hybrid IP-PBX Printer/PC
Circuit Type
(EIA)
Signal
Name
Pin No. Pin No.
Signal
Name
Circuit Type
(EIA)
BB RD (RXD) 2
BA SD (TXD) 3
CD ER (DTR) 4
AB SG 5
CC DR (DSR) 6
CA RS (RTS) 7
CB CS (CTS) 8
2 RD (RXD) BB
3 SD (TXD) BA
4 ER (DTR) CD
5SG AB
6 DR (DSR) CC
7 RS (RTS) CA
8 CS (CTS) CB
