Panasonic KX-TDA30

6.11 Power Failure Connections — KX-TDA30
Installation Manual 385

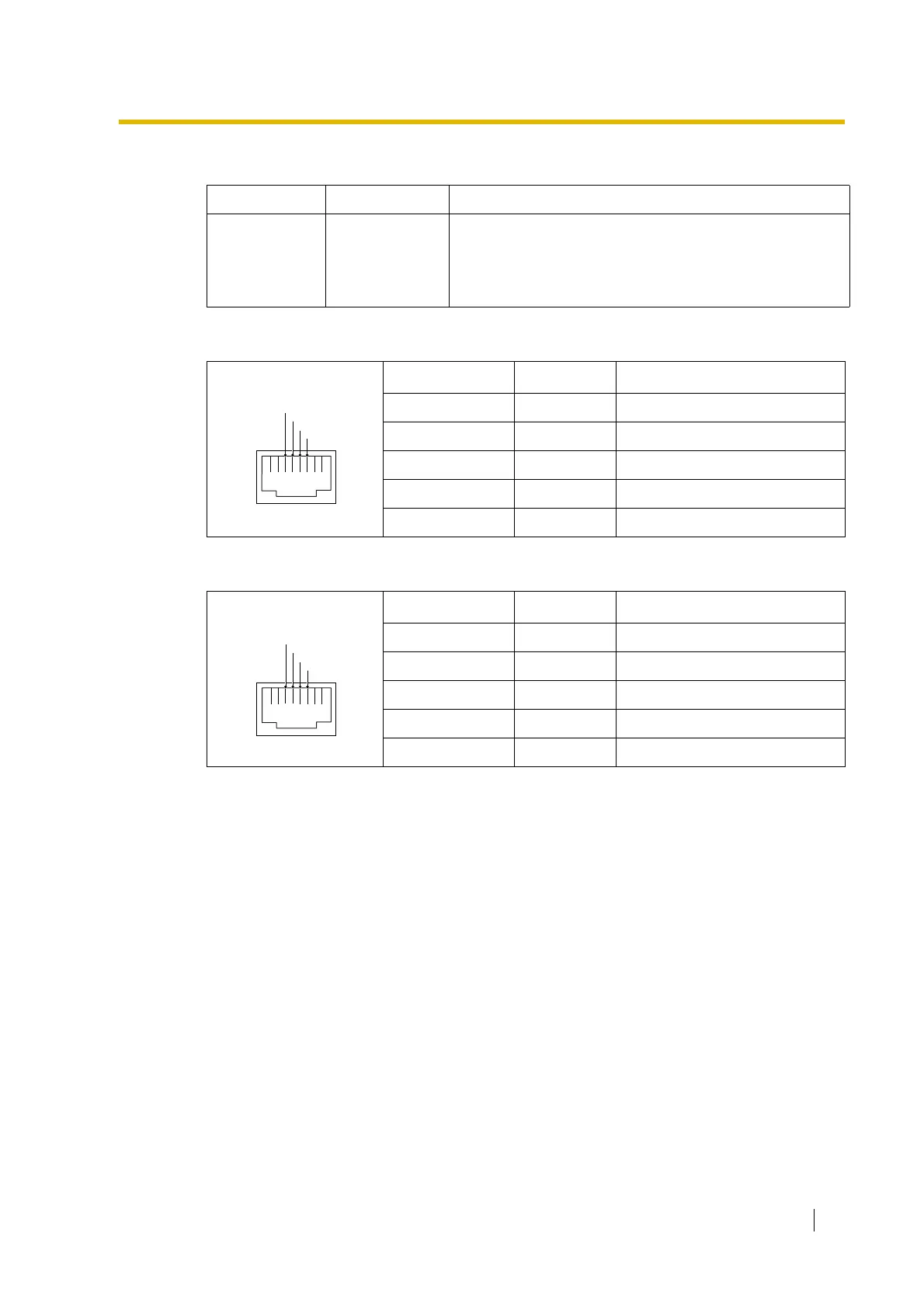

Switch Settings
RJ45 Connector LINE 1 Pin Assignments
RJ45 Connector LINE 2 Pin Assignments
Switch Type Usage and Status Definition
PFT Setting DIP Set all DIP switches to "ON" positions to use LINE 1 and
LINE 2 as a PFT port.
LINE 1: Power Failure LINE (NT1)
LINE 2: Power Failure EXTN (extension)
Signal Name Level [V] Function
TX1 (+) Transmit data 1
RX2 (+) Receive data 2
RX1 (-) Receive data 1
TX2 (-) Transmit data 2
––Reserved
Signal Name Level [V] Function
RX2 (+) Receive data 2
TX1 (+) Transmit data 1
TX2 (-) Transmit data 2
RX1 (-) Receive data 1
––Reserved
1 8
TX1(+)
RX2(+)
RX1(-)
TX2(-)
RX2(+)
TX1(+)
TX2(-)
RX1(-)
1 8
