2.2 Installation of the Hybrid IP-PBX — KX-TDA100/KX-TDA200
Installation Manual 49

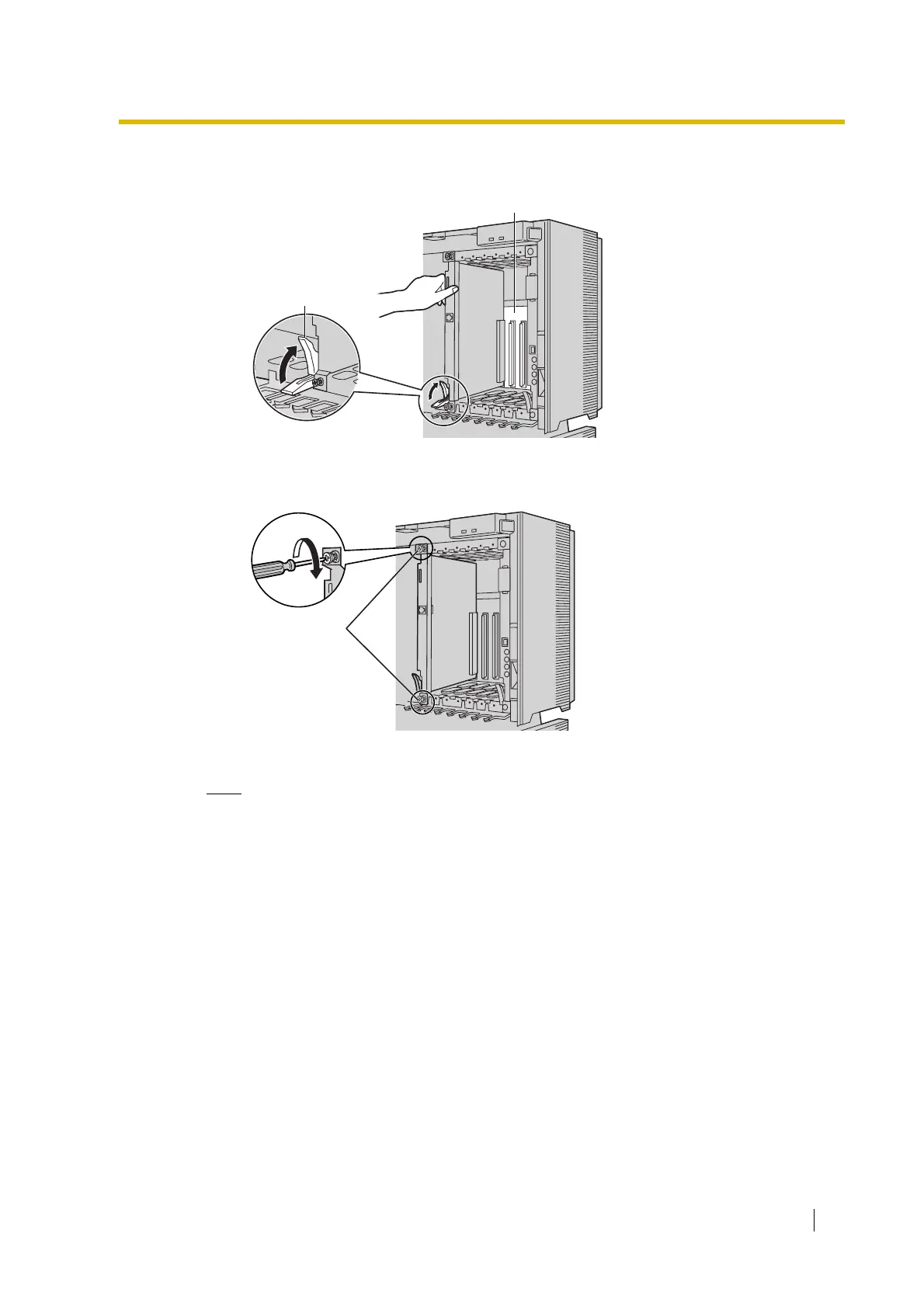

2. Holding the card as shown below, push the release lever in the direction of the arrow so
that the card engages securely with the connector on the back board.
3. Turn the 2 screws clockwise to fix the card in place.
Note
Make sure the screws are tightened to earth the card securely.
Release Lever
Back Board
Screws
