2.2 Installation of the Hybrid IP-PBX — KX-TDA100/KX-TDA200
60 Installation Manual

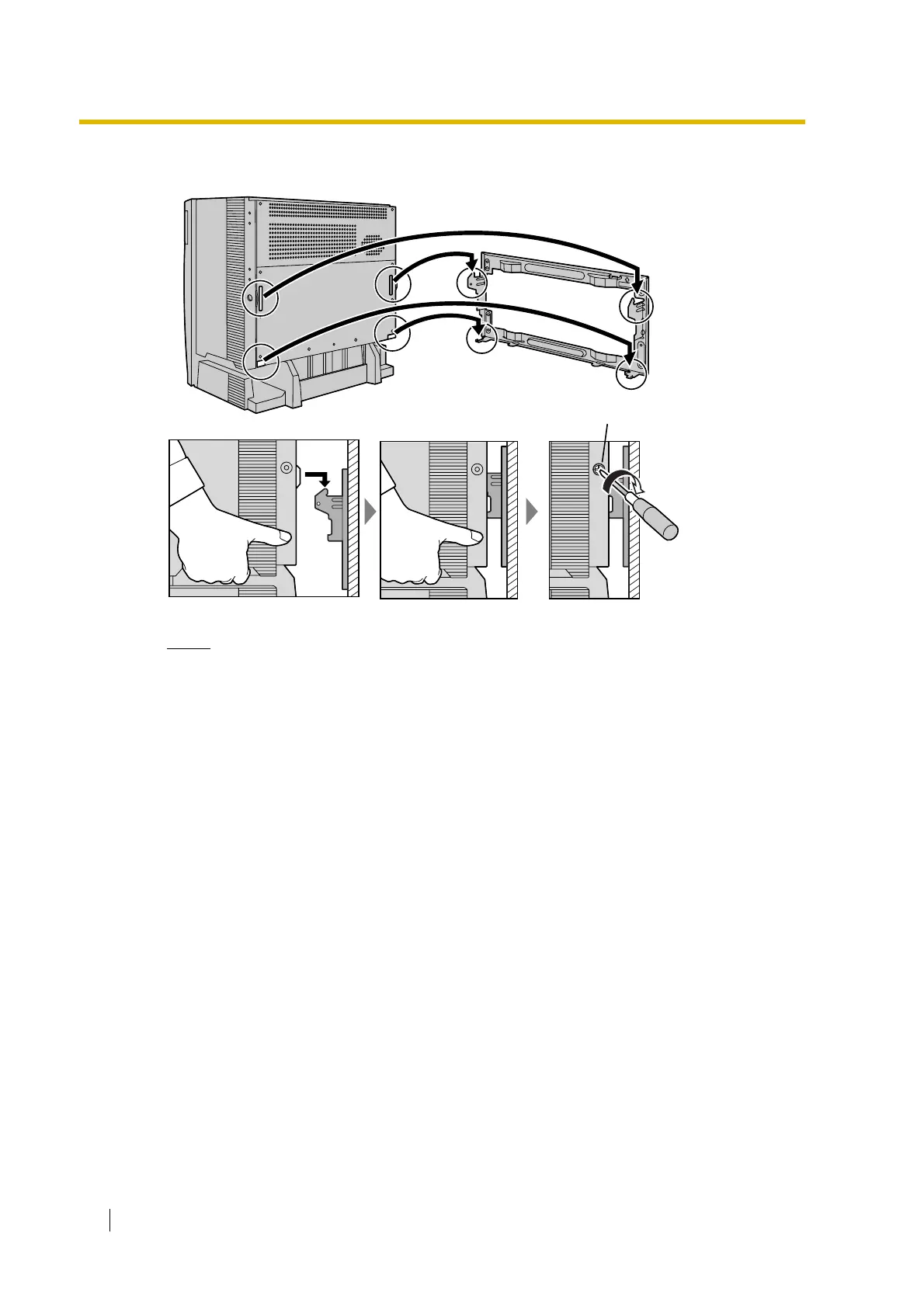

2. Hook the cabinet onto the metal bracket, making sure that the unit slides down and onto
the hooked parts of the metal bracket. Use 2 screws (B) to fix both sides of the cabinet.
Notes
• Do not block the openings of the cabinet. Allow space of at least 20 cm above and 10
cm at the sides of the cabinet.
• Make sure that the wall behind the cabinet is flat and free of obstacles, so that the
openings on the back of the cabinet will not be blocked.
• Make sure that the wall behind the cabinet is not made of wood.
• Be careful not to drop the cabinet.
T
O
P
Screw (B)
