Panasonic Lumix S5

1. Introduction
30
10
9
8
7
5
6
2
3
4
1
13 14 1512 1611 1

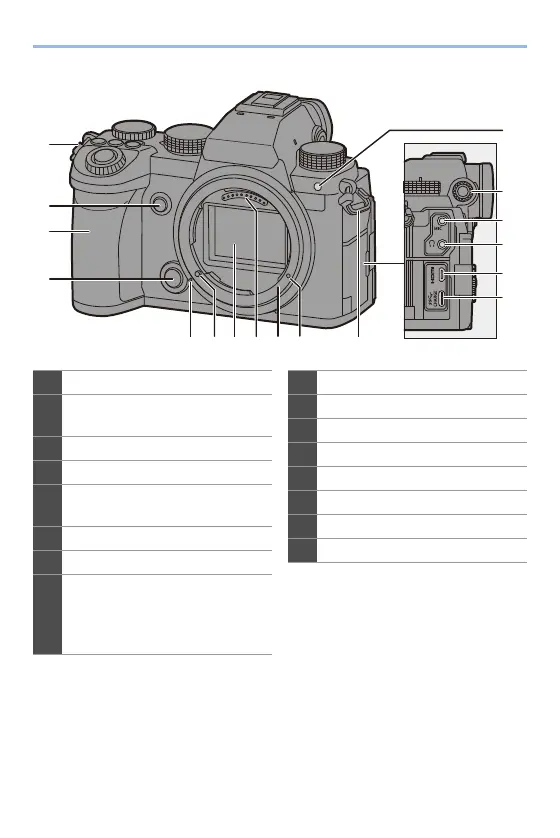

1 Shoulder strap eyelet (l 33)
2
Preview button (l 195)/
Fn button (Fn2) (l 321)
3
Grip
4
Lens release button (l 49)
5
Self-timer light (l 154)/
AF assist light (l 355)
6
Diopter adjustment dial (l 65)
7
[MIC] socket (l 293)
8
Headphone socket (l 298)
0 Excessive sound pressure from
earphones and headphones can
cause hearing loss.
9 [HDMI] socket (l 289, 473)
10 USB port (l 39, 474)
11
Lens fitting mark (l 49)
12
Lens lock pin
13
Sensor
14
Contact points
15
Mount
16
Screw hole for function expansion
