Panasonic SA-BT100P - Disassembly of BD;DVD Drive Unit

DVD Module P.C.B.

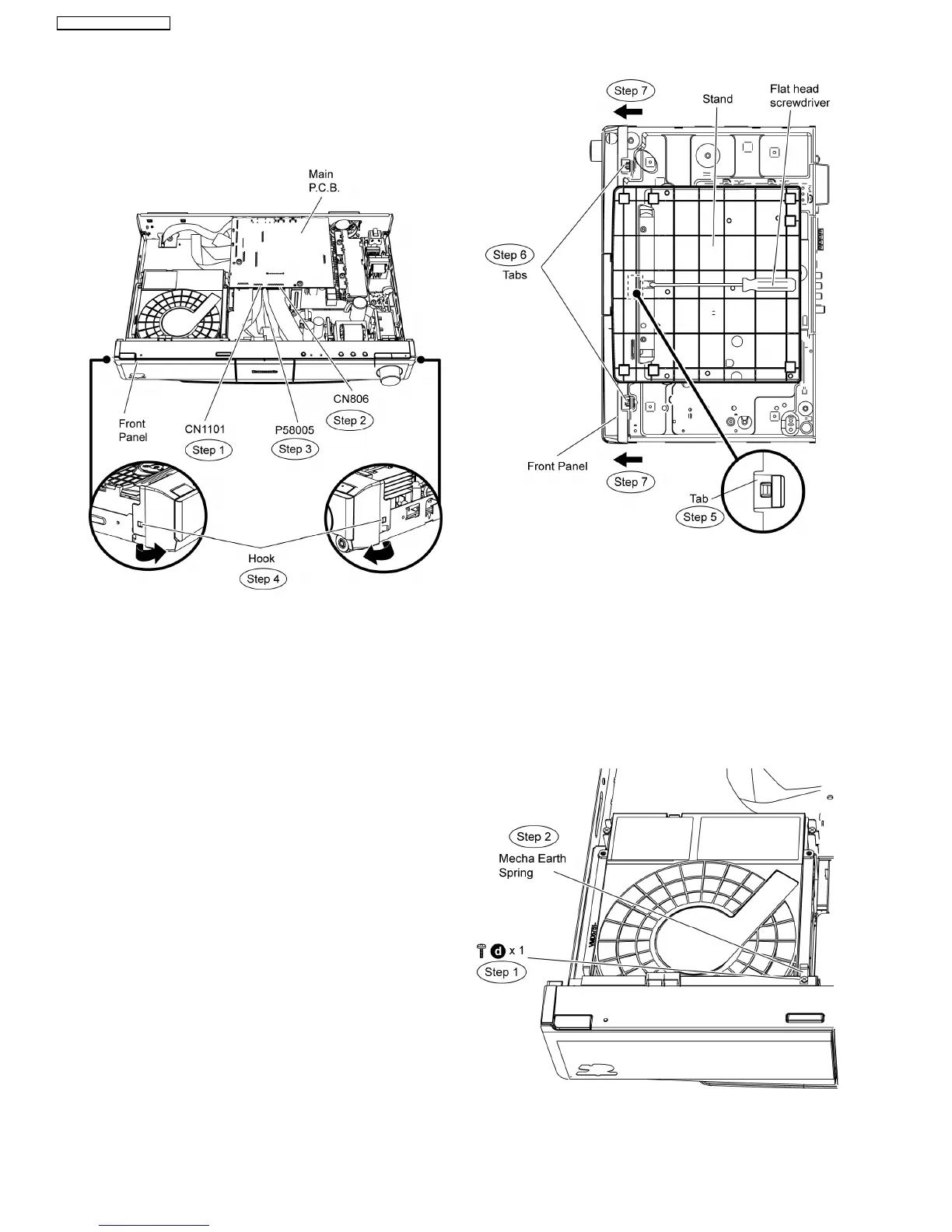

Step 4 Release the hook at left & right side of the front panel
in the direction of arrow.
Step 5 Release the tab behind the stand at the bottom of the
front panel by using flat head screwdriver.
Step 6 Release the tabs at the bottom of the front panel.
Step 7 Remove the front panel in the direction of arrow.
Caution: Do not attempt to exert strong force when
detaching the front panel.
10.6. Disassembly of BD/DVD Drive
Unit
•
• •
• Follow (Step 1) to (Step 3) of Item 10.3.
•
• •
• Disassembly of Mecha earth spring.
Step 1 Remove 1 screws from Mecha earth spring.
Step 2 Remove the Mecha earth spring.
Caution Note: Keep the Mecha earth spring in safe place.
Avoid denting it. Place it back during assembling.
44
SA-BT100P / SA-BT100PC
