12 Service Position
12.1. Checking & Repairing Main
P.C.B.

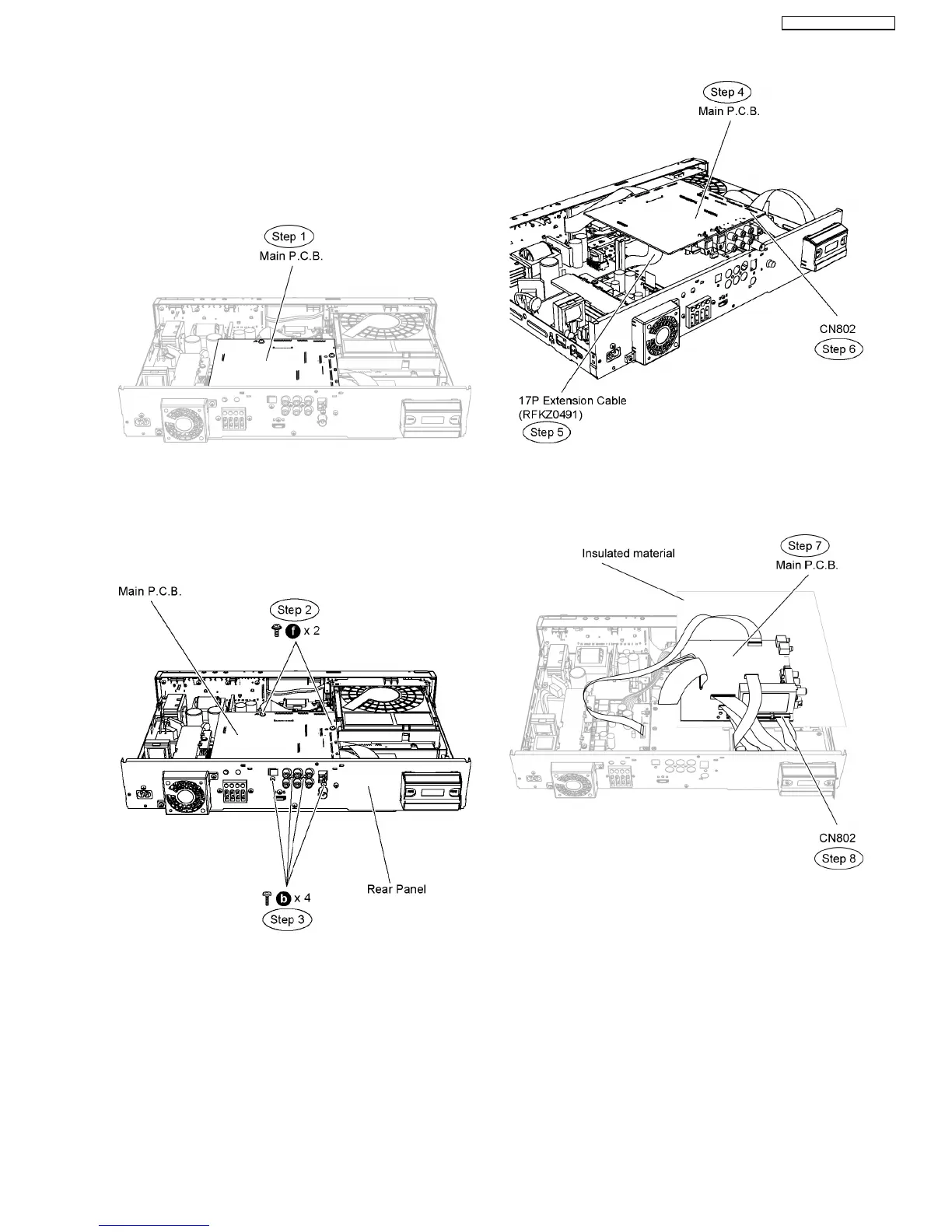

Step 1 Remove the top cabinet to service side A of Main P.C.B.
•
• •
• Servicing side B of Main P.C.B.
Step 2 Remove2screwsonMainP.C.B.
Step 3 Remove 4 screws at the rear panel.
Step 4 Detach Main P.C.B from the rear panel and position it
according to the diagram show.
Step 5 Attach original cable with extension cable RFKZ0491
(17P cable from CN5050 to CN503)
Step 6 Detach 19P FFC cable at the connector (CN802) on
Main P.C.B.
Step 7 Position Main P.C.B according to diagram show.
Step 8 Connect 19P FFC cable at the connector (CN802) on
Main P.C.B.
Caution: Insulate Main P.C.B from other parts insulating
material (eg:plastic).
12.2. Checking & Repairing D-Amp
P.C.B.
Step 1 Remove the top cabinet.
Step 2 Remove 3 screws at the rear panel.
61
SA-BT100P / SA-BT100PC
