heatsink unit B.
Special Note: Ensure the switch regulator diode (D5702) is
tightly screwed to the heatsink unit B.
Step 3 Fix the heatsink unit B on SMPS P.C.B. in the direction
of arrows.
Step 4 Fix and screw the switch regulator IC (IC5701) to the
heatsink unit B
Special Note: Ensure the heatsink unit B is properly seated on
SMPS P.C.B.
Step 5 Solder pins of the switch regulator diode (D5702) on the
reverse side of SMPS P.C.B.
Step 6 Solder pins of the heatsink unit B on the reverse side of
SMPS P.C.B.
Special Note: Ensure pins of the switch regulator diode
(D5702) are properly seated and soldered on SMPS P.C.B.

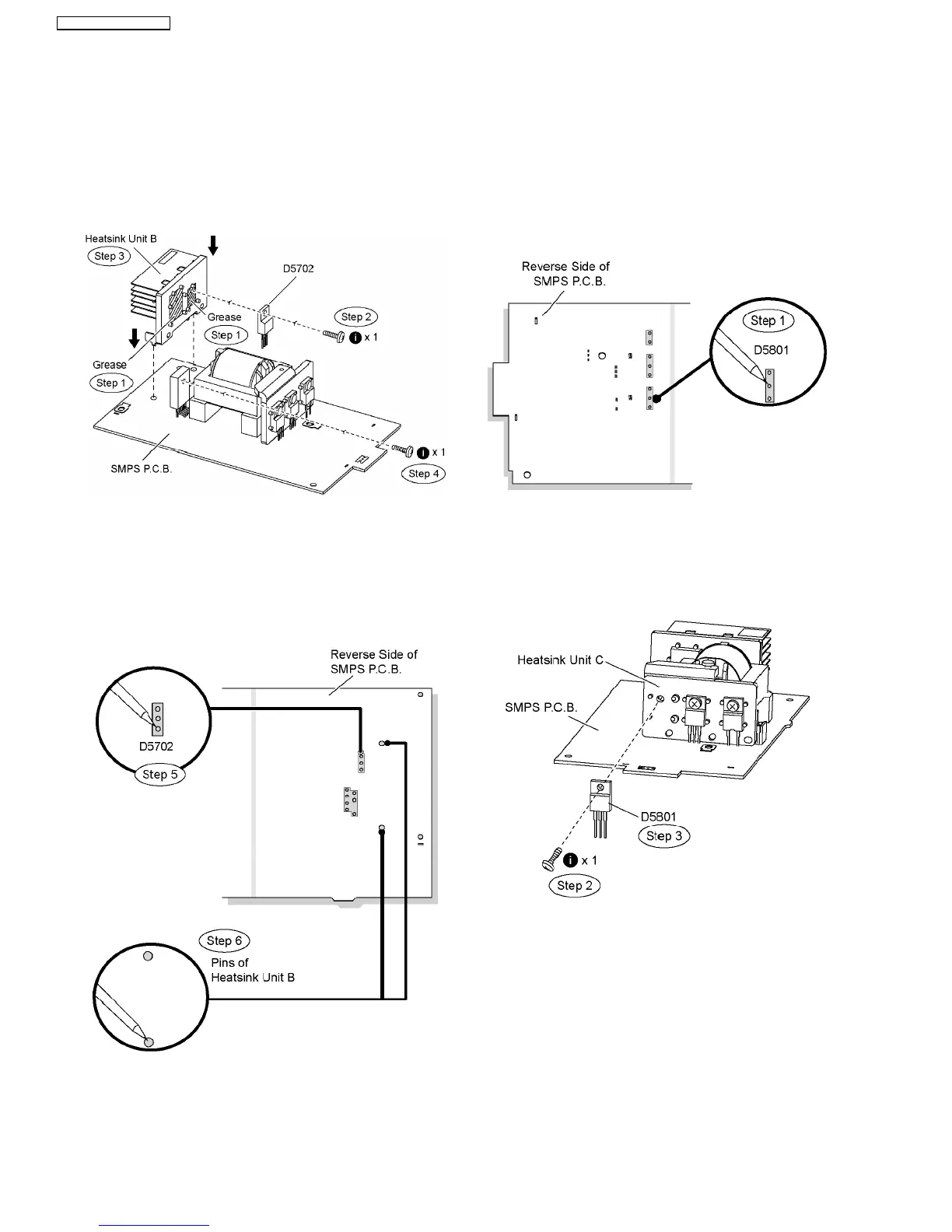

10.18. Replacement of Regulator
Diode (D5801)
Follow (Step 1) to (Step 3) of Item 10.3.
Follow (Step 1) to (Step 7) of Item 10.12.
Follow (Step 1) to (Step 6) of Item 10.17.
Step 1 Desolder pins of the regulator diode (D5801) on the
reverse side of SMPS P.C.B.
Step 2 Remove 1 screw from the regulator diode (D5801).
Step 3 Remove the regulator diode (D5801) from the heatsink
unit C.
Caution: Handle the heatsink unit C with caution due to its
high temperature after prolonged use. Touching it may
lead to injuries.
Note: Refer to the diagrams of SMPS P.C.B. (Item 20.7.) for
location of the part.
10.18.1. Assembly of Regulator Diode
(D5801)
Step 1 Apply grease to the heatsink unit C.
Step 2 Fix and screw the regulator diode (D5801) to the
heatsink unit C.
Special Note: Ensure the regulator diode (D5801) is tightly
screwed to the heatsink unit C.
54
SA-BT100P / SA-BT100PC
