Panasonic SA-BT100P - Disassembly of AC Inlet P.C.B

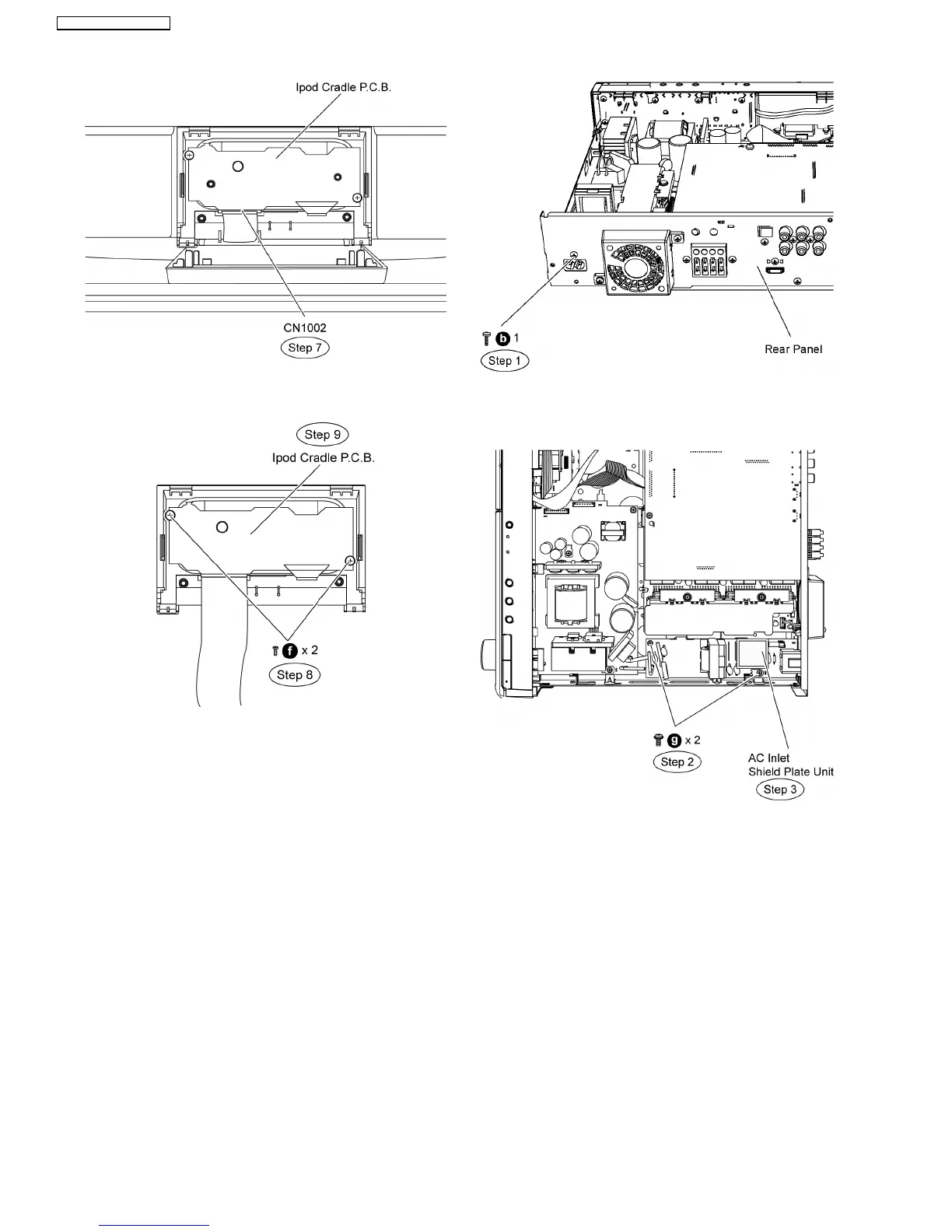

Step 8 Remove 2 screws on the Ipod cradle P.C.B.
Step 9 Remove Ipod cradle P.C.B.
10.11. Disassembly of AC Inlet P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 10.3.
•
• •
• Disassembly of AC Inlet Shield Plate Unit.
Step 1 Remove 1 screw at the rear panel.
Step 2 Remove 2 screws from the AC Inlet shield plate unit.
Step 3 Remove the AC Inlet shield plate unit.
Step 4 Remove the P.C.B. bracket.
Caution Note: Keep the P.C.B. bracket unit in safe place.
Avoid denting it. Place it back during assembling.
Step 5 Remove AC Inlet P.C.B.
