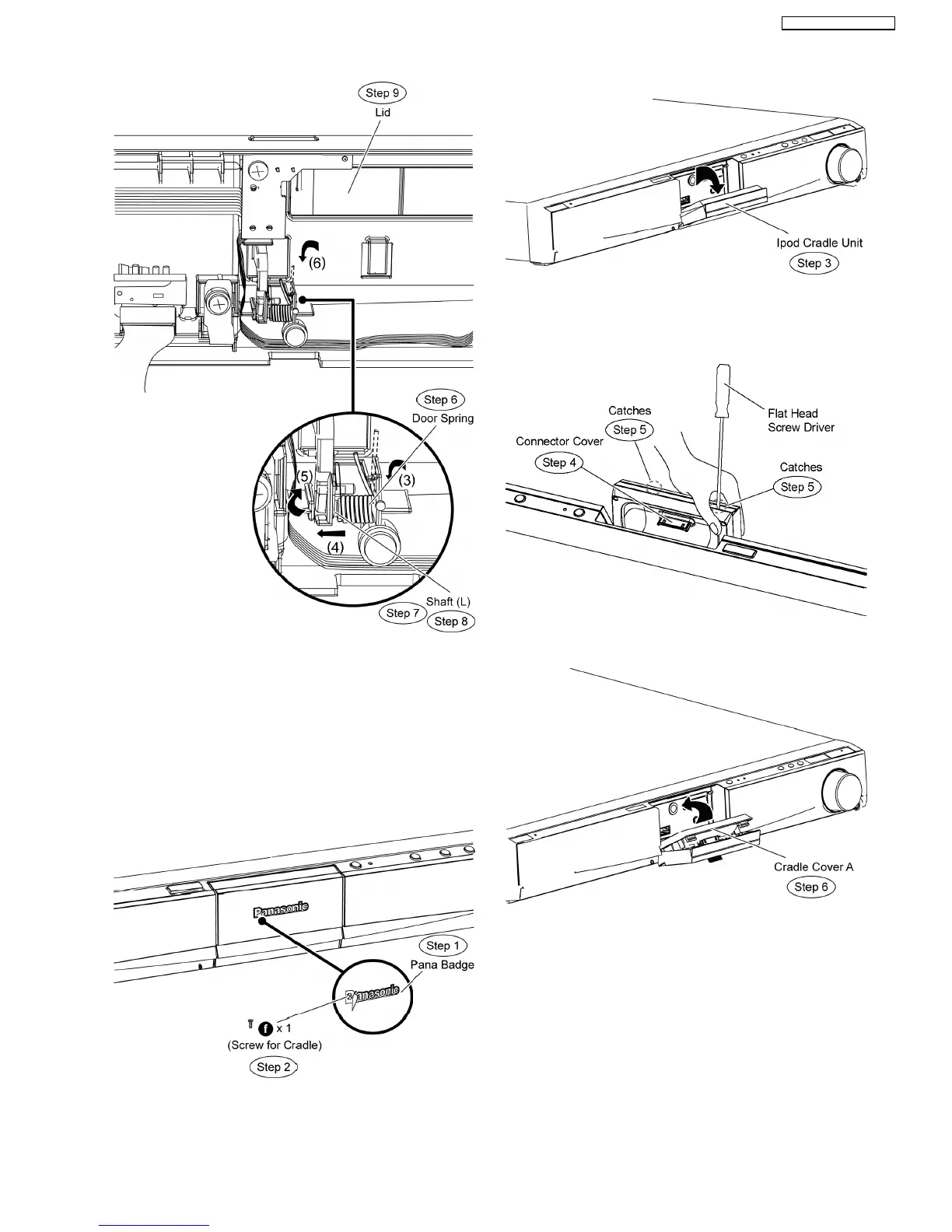

10.10. Disassembly of Ipod Cradle
P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 10.3.
Step 1 Peel off the portion of the pana badge (paste type) with
a pen knife.
Step 2 Remove the screw for cradle.
Caution Note: Keep the screw in safe place. Place it back
during assembling.
Step 3 Flip the Ipod cradle unit for 45 degree as the direction
of arrow.
Step 4 Remove the connector cover.
Step 5 Use a flat head screwdriver (0.5-0.7mm) to release the
catches according to the diagram show.
Step 6 Remove cradle cover A as the direction of arrow.
Step 7 Detach 14P FFC cable at the connector (CN1002) on
Ipod cradle P.C.B.
47
SA-BT100P / SA-BT100PC
