Panasonic SA-BT100P - Waveform Chart

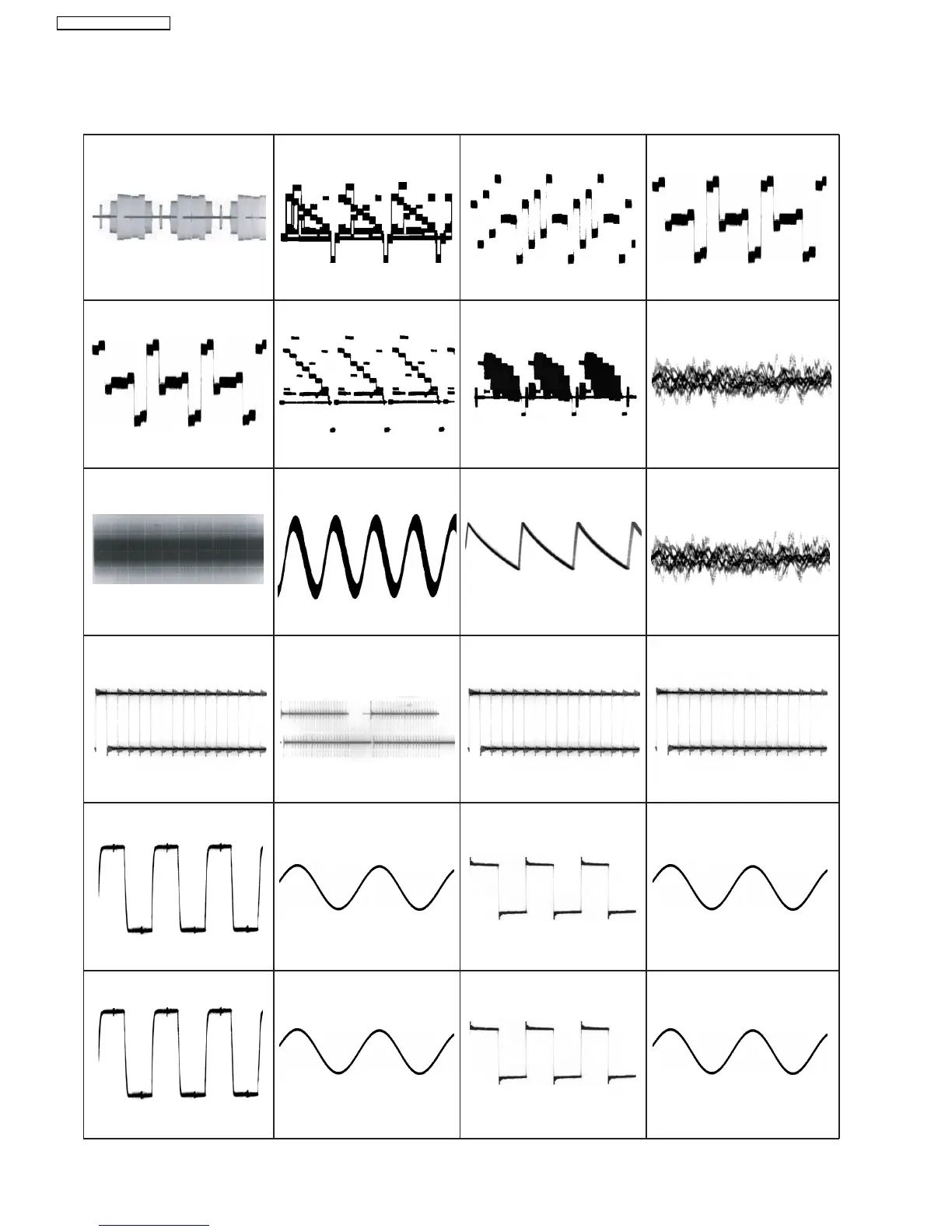

14.9. Waveform Chart
14.9.1. Waveform 1
WF No. IC801-1 (PLAY)
0.6Vp-p(20usec/div)
WF No. IC801-5,12 (PLAY)
1.1Vp-p(20usec/div)
WF No. IC801-14,22 (PLAY)
0.48Vp-p(20usec/div)
WF No. IC801-16 (PLAY)
0.48Vp-p(20usec/div)
WF No. IC801-19 (PLAY)
0.96Vp-p(20usec/div)
WF No. IC500-9,10 (PLAY)
1.2Vp-p(2msec/div)
WF No. IC500-11,20 (PLAY)
0.15Vp-p(500usec/div)
WF No. IC500-12,19 (PLAY)
0.4Vp-p(500usec/div)
WF No. IC6001-5 (PLAY)
1.4Vp-p(2usec/div)
WF No. IC3201-1,2 (PLAY)
0.9Vp-p(2msec/div)
WF No. IC3201-9 (PLAY)
6Vp-p(500nsec/div)
WF No. IC3404-25,28 (PLAY)
4Vp-p(1usec/div)
WF No. IC3404-42 (PLAY)
3.4Vp-p(500nsec/div)
WF No. IC3501-3 (PLAY)
3.4Vp-p(500nsec/div)
WF No. IC801-26 (PLAY)
2.1Vp-p(20usec/div)
WF No. IC801-32 (PLAY)
2.2Vp-p(20usec/div)
WF No. IC5000-1 (PLAY)
5.6Vp-p(1usec/div)
WF No. IC5000-2 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5000-10,14 (PLAY)
80Vp-p(1usec/div)
WF No. IC5000-22 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5200-10,14 (PLAY)
80Vp-p(1usec/div)
WF No. IC5200-22 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5200-1 (PLAY)
5.6Vp-p(1usec/div)
WF No. IC5200-2 (PLAY)
0.84Vp-p(200usec/div)
76
SA-BT100P / SA-BT100PC
