Panasonic SA-BT100P - Page 77

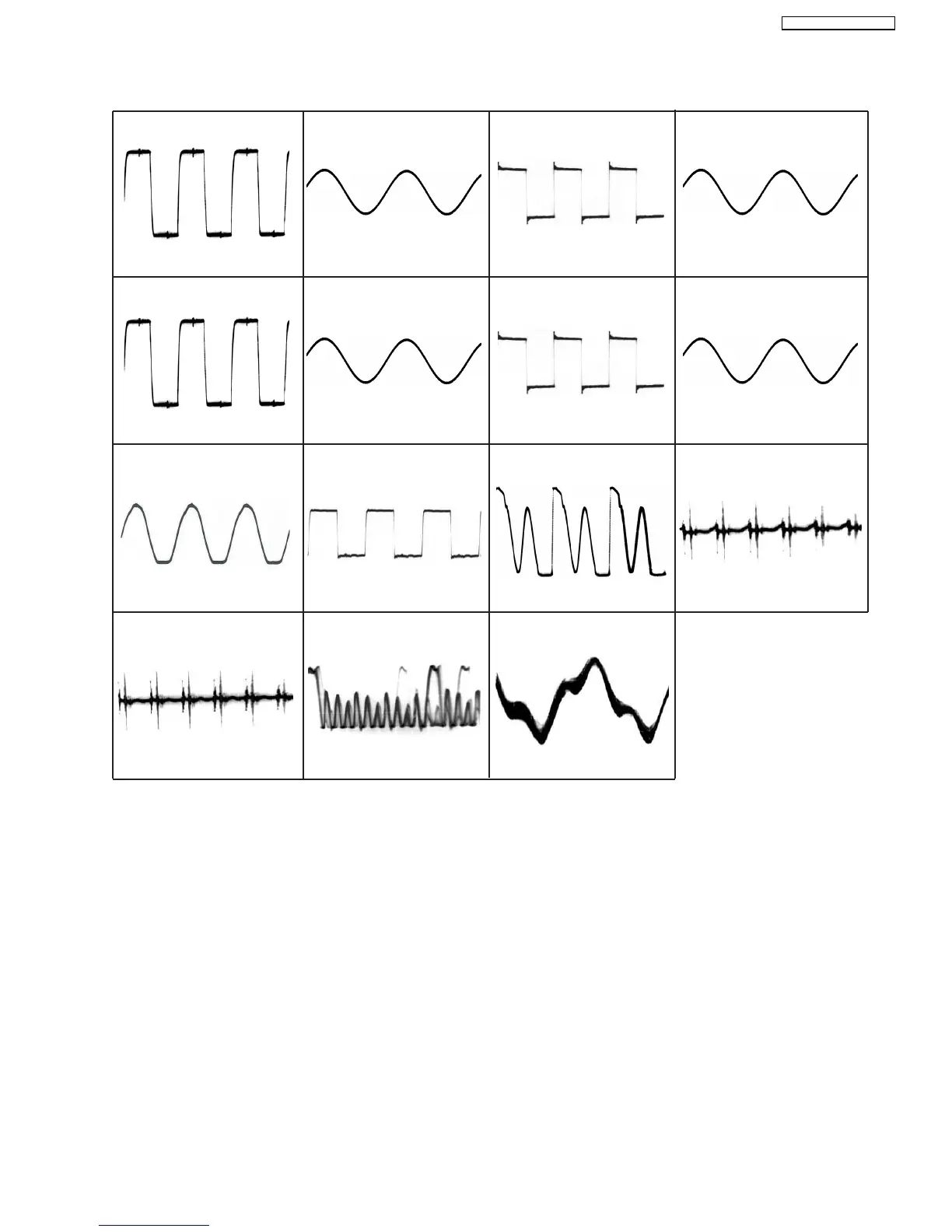

14.9.2. Waveform 2
WF No. IC5300-10,14 (PLAY)
80Vp-p(1usec/div)
WF No. IC5300-22 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5400-1 (PLAY)
5.6Vp-p(1usec/div)
WF No. IC5400-2 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5400-10,14 (PLAY)
80Vp-p(1usec/div)
WF No. IC5400-22 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5500-5 (PLAY)
7.2Vp-p(500nsec/div)
WF No. IC5500-8 (PLAY)
5.6Vp-p(500usec/div)
WF No. IC5701-1 (PLAY)
400Vp-p(2usec/div)
WF No. IC5701-4,6 (PLAY)
2Vp-p(5usec/div)
WF No. IC5799-2 (PLAY)
WF No. IC5799-3 (PLAY)
2Vp-p(5usec/div) 9.6Vp-p(5usec/div)
WF No. IC5300-1 (PLAY)
5.6Vp-p(1usec/div)
WF No. IC5300-2 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5799-5 (PLAY)
240Vp-p(50usec/div)
77
SA-BT100P / SA-BT100PC
