Panasonic SA-BT100P - Disassembly of D-Amp

Special Note: During reassembling procedures, ensure the
P.C.B. is seated properly at the locators.

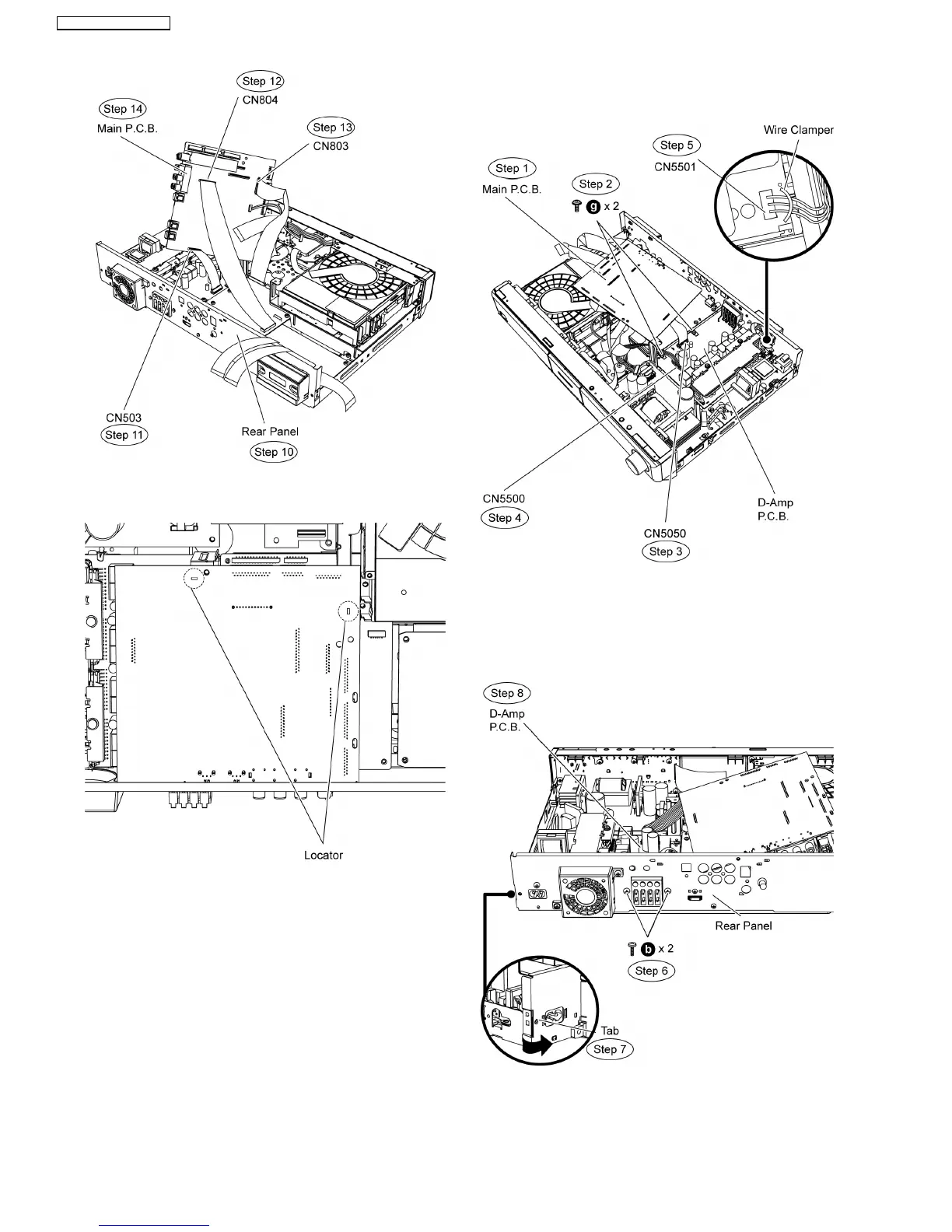

10.13. Disassembly of D-Amp P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 10.3.
•
• •
• Follow (Step 1) to (Step 4) of Item 10.11.
•
• •
• Follow (Step 1) to (Step 11) of Item 10.12.
Step 1 Move aside Main P.C.B. and position it according to the
diagram shown.
Step 2 Remove 2 screws on D-Amp P.C.B.
Step 3 Detach 17P cable at the connector (CN5050) on D-Amp
P.C.B.
Step 4 Detach 8P cable at the connector (CN5500) on D-Amp
P.C.B.
Step 5 Twist the wire clamper to detach 3P cable at the
connector (CN5501) on D-Amp P.C.B.
Step 6 Remove 2 screws at the rear panel.
Step 7 Release the tab of the rear panel in the direction of
arrow.
Step 8 Remove D-Amp P.C.B.
Special Note: During reassembling procedures, ensure the
P.C.B. is seated properly at the locators.
50
SA-BT100P / SA-BT100PC
