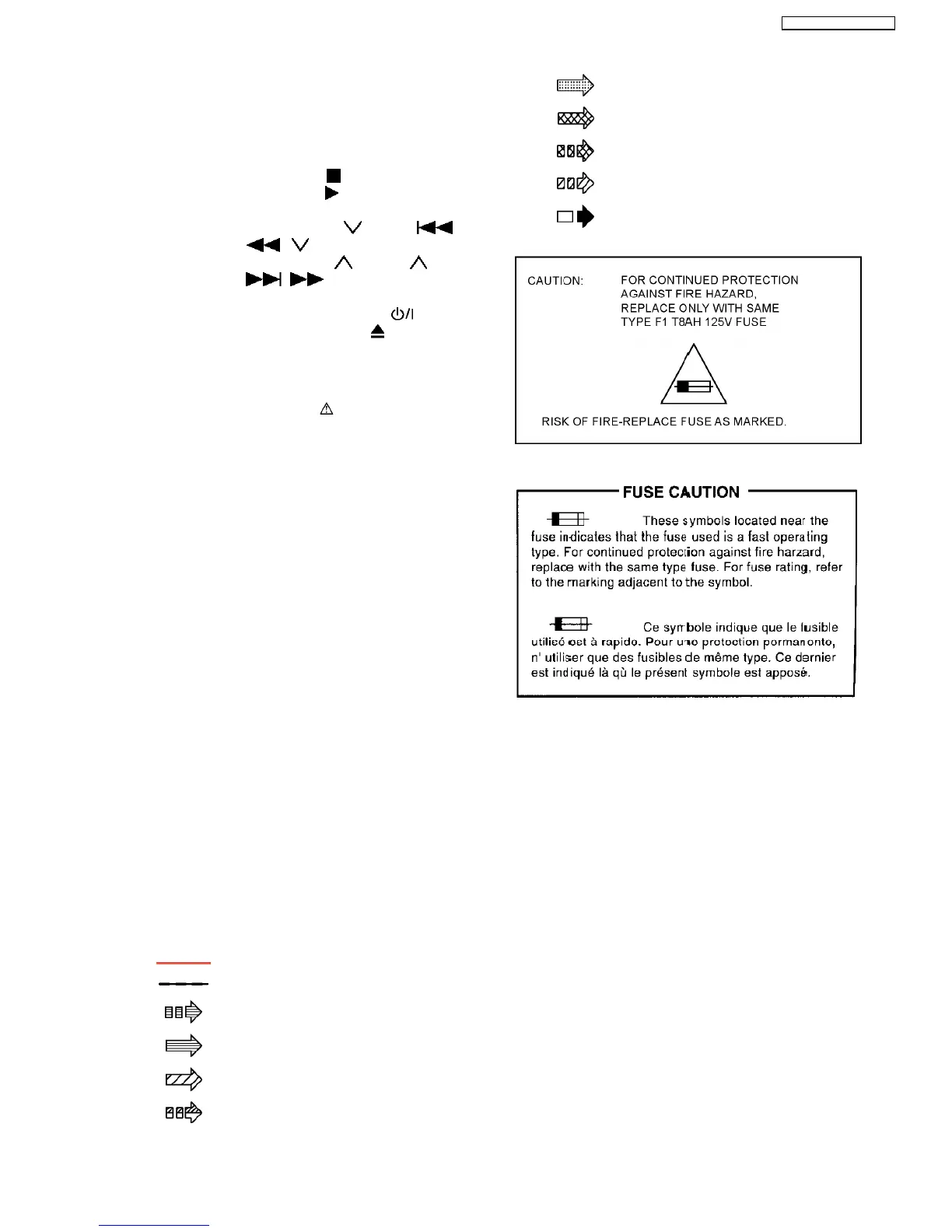

Panasonic SA-BT100P - 18 Schematic Diagram Notes

18 Schematic Diagram Notes
•
• •
• This schematic diagram may be modified at any time
with the development of new technology.
Notes:
S6001: Stop switch (
).
S6002: Play switch (
).
S6003: Selector switch.
S6004: Backward/Tune
switch ( /
)
S6005: Forward/Tune
switch (
/ ).
S6006: SW Boost switch.
S6101: Power switch (POWER
).
S6102: Open/Close switch (
OPEN/CLOSE).
VR6001: VR volume jog.
•
• •
• Important safety notice:
Components identified by
mark have special
characteristics important for safety.
Furthermore, special parts which have purposes of fire-
retardant (resistors), high-quality sound (capacitors), low-
noise (resistors), etc. are used.
When replacing any of components, be sure to use only
manufacturer´s specified parts shown in the parts list.
•
• •
• In case of AC rated voltage Capacitor, the part no. and
values will be indicated in the Schematic Diagram.
AC rated voltage capacitor:
C5700, C5701, C5703, C5704, C5705
•
• •
• Resistor
Unit of resistance is OHM [Ω] (K=1,000, M=1,000,000).
•
• •
• Capacitor
Unit of capacitance is µF, unless otherwise noted. F=Farad,
pF=Pico-Farad
•
• •
• Coil
Unit of inductance is H, unless otherwise noted.
•
• •
• *
For indication only.
•
• •
• Voltage and signal line
: +B signal line
: -B signal line
: BD / DVD Audio signal line
: BD / DVD Video signal line
: Main signal line
: SD signal line
: Audio signal line
: Ipod Video signal line
: Ipod Audio signal line
: AUX signal line
: AM/FM signal line
95
SA-BT100P / SA-BT100PC
