Panasonic SA-MAX200PH - Waveform Table

103

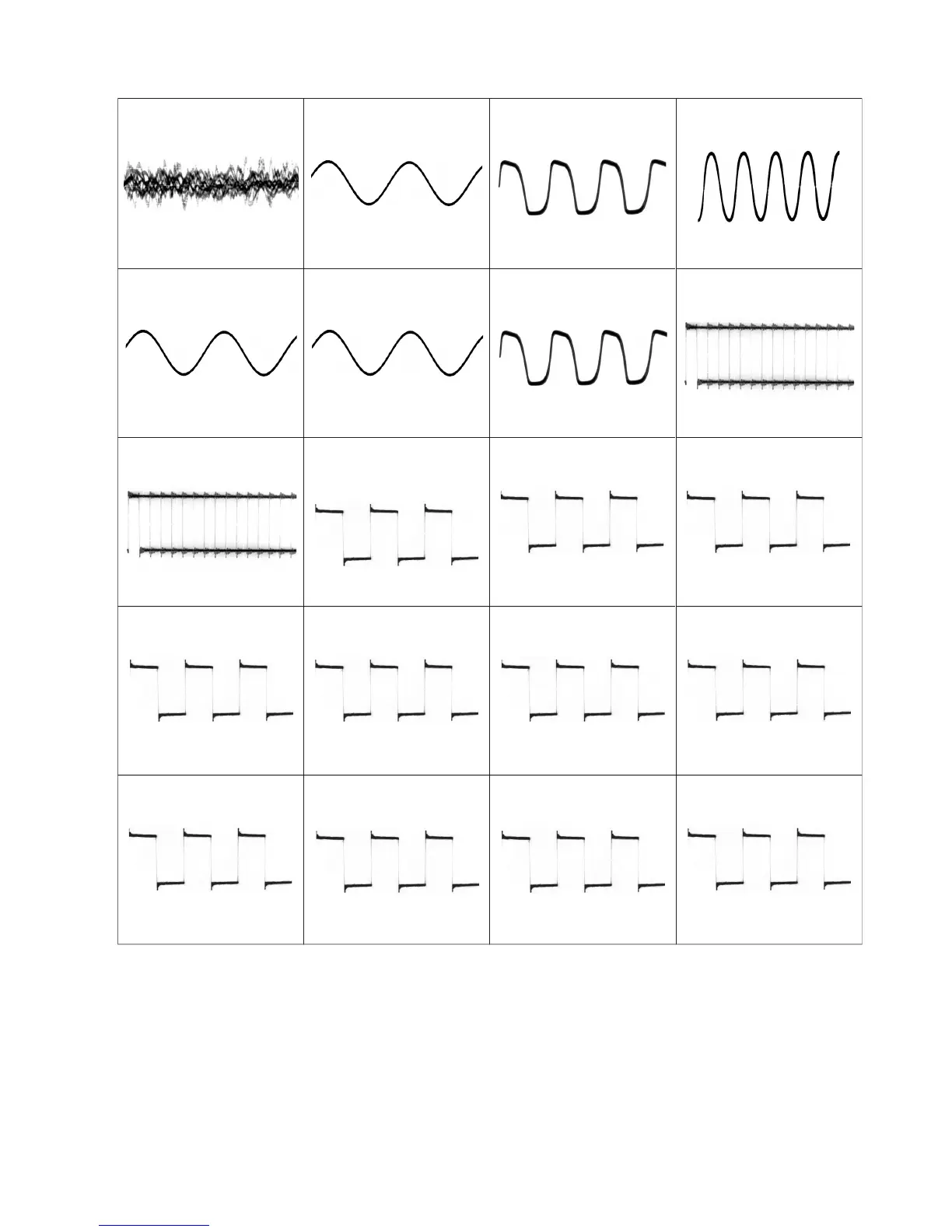

16.1.12. Waveform Table
WF No. IC2000-2,4,13 (TUNER)
0.1Vp-p(200usec/div)
WF No. IC2501-5,6,14,15 (PLAY)
1.6Vp-p(1usec/div)
WF No. IC2501-27,28,32,35
(PLAY)
28Vp-p(500nsec/div)
WF No. IC2501-39,40 (PLAY)
28Vp-p(1usec/div)
WF No. IC2502-5,6,14,15 (PLAY)
1.6Vp-p(1usec/div)
WF No. IC2503-5,6,14,15 (PLAY)
1.6Vp-p(1usec/div)
WF No. IC2502-27,28,32,35
(PLAY)
28Vp-p(500nsec/div)
WF No. IC2502-39,40 (PLAY)
28Vp-p(1usec/div)
WF No. IC2008-24 (PLAY)
1.8Vp-p(50usec/div)
WF No. IC2008-27 (PLAY)
3.2Vp-p(1usec/div)
WF No. IC2005-13 (PLAY)
1.6Vp-p(20nsec/div)
WF No. IC2006-12 (PLAY)
3.8Vp-p(50nsec/div)
WF No. IC2006-13 (PLAY)
4Vp-p(50nsec/div)
WF No. IC2006-15 (PLAY)
2Vp-p(10usec/div)
WF No. IC2006-16 (PLAY)
3.8Vp-p(10usec/div)
WF No. IC2005-14 (PLAY)
4.8Vp-p(20nsec/div)
WF No. IC2008-38,39,40,41,42,
43,44,45,46,48,
49 (PLAY)
5.2Vp-p(1usec/div)
WF No. IC2503-27,28,32,35
(PLAY)
28Vp-p(500nsec/div)
WF No. IC2503-39,40 (PLAY)
28Vp-p(1usec/div)
WF No. IC2504-5,6,14,15 (PLAY)
1.6Vp-p(1usec/div)
