Panasonic SA-VK480EE - Mechanical Replacement Part List

149

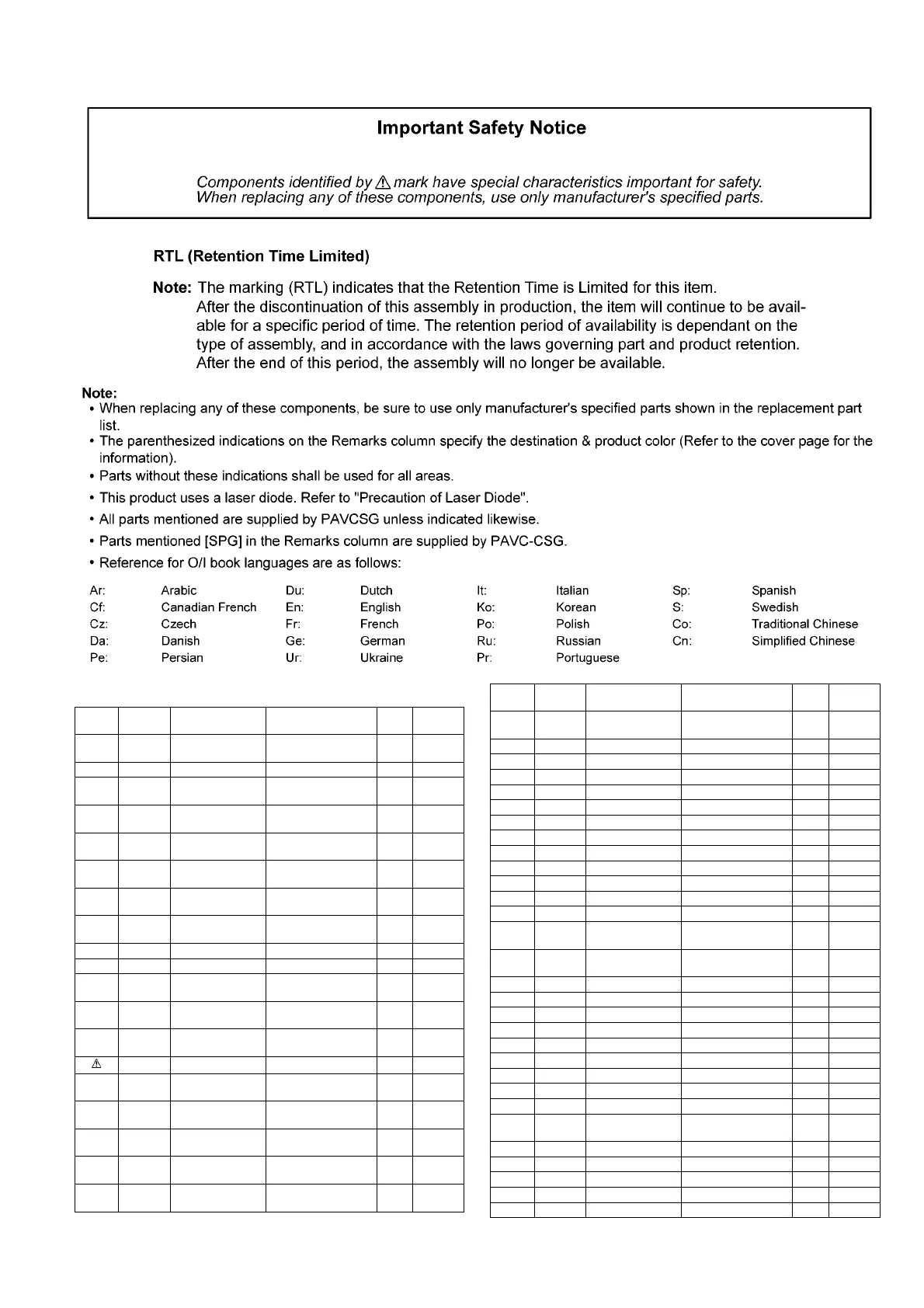

21.1.4. Mechanical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 RDGX0040 VOLUME GEAR 1
2 REEX0740 10P FFC (MUSIC-
MAIN)
1
3 REEX0881 17P FFC (MAIN-
DAMP)
1
6 REEX0883 27P FFC (MAIN-
PANEL)
1
7 REEX0904-J 11P FFC (OPU-
MAIN)
1
8 RGCX0010-W VOLUME LIGHT
REFLECTOR
1
9 RFKGAVK480GA FRONT PANEL
ASS'Y
1
10 RGKX0482-1S VOLUME ORNAMENT 1
11 RGKX0483B-K1 CD LID 1
12 RGKX0488A-B DYNAMIC BASS
ORNAMENT
1
13 RGLX0164-B VOLUME LIGHT
PIECE
1
14 RGLX0167-Q POWER LIGHT
PIECE
1
15 RGRX0070L-D1 REAR PANEL 1
16 RGUX0764C-1S MAIN FUNCTION
BUTTON L
1
17 RGUX0765-3S1 DYNAMIC BASS
BUTTON
1
18 RGUX0766A-K 5CD CHANGE BUT-
TON
1
19 RGUX0767B-K POWER CONTROL
BUTTON
1
20 RGUX0768-K CASSETTE EJECT
BUTTON
1
21 RGUX0777B-1S MAIN FUNCTION
BUTTON R
1
22 RGWX0056-1K1 MIC VOLUME KNOB 1
23 RGWX0072A-3S VOLUME KNOB 1
24 RHD26043-1 SCREW 5
25 RHD26046-L SCREW 15
26 RHD30007-K2J SCREW 6
27 RHD30070 SCREW 1
28 RHD30111-31 SCREW 14
29 RHD30119-S SCREW 16
30 RKA0072-KJ LEG CUSHION 4
31 RKFX0143A-K1 CASSETTE LID 1
32 J3CCBB000010 TUNER PACK 1
33 RMAX0333-2 CHASSIS SUPPORT 2
34 RMBV0042-2 CASSETTE LID
SPRING
1
35 RMBX0086-1 CD LID OPEN
SPRING
1
36 RMC0465 TR SPRING 1
37 RMGX0033 CUSHION RUBBER 2
38 RMKX0151C CD CHASSIS 1
39 RMNV0059 LED HOLDER 2
40 RMNV0079-1 FL HOLDER 1
42 RMZX0041 IC INSULATOR 1
43 RHD30008 SCREW 1
44 RMNX0287A USB JACK HOLDER 1
45 RMNX0190 LED HOLDER 3
46 RUS757ZAA CASSETTE HALF
SPRING
2
47 RXGX0002 DAMPER GEAR 1
48 XTB3+10JFJ SCREW 7
49 XTV3+10GFJ-M SCREW 4
50 XTW3+12TFJ SCREW 2
51 XTW3+8TFJ SCREW 1
