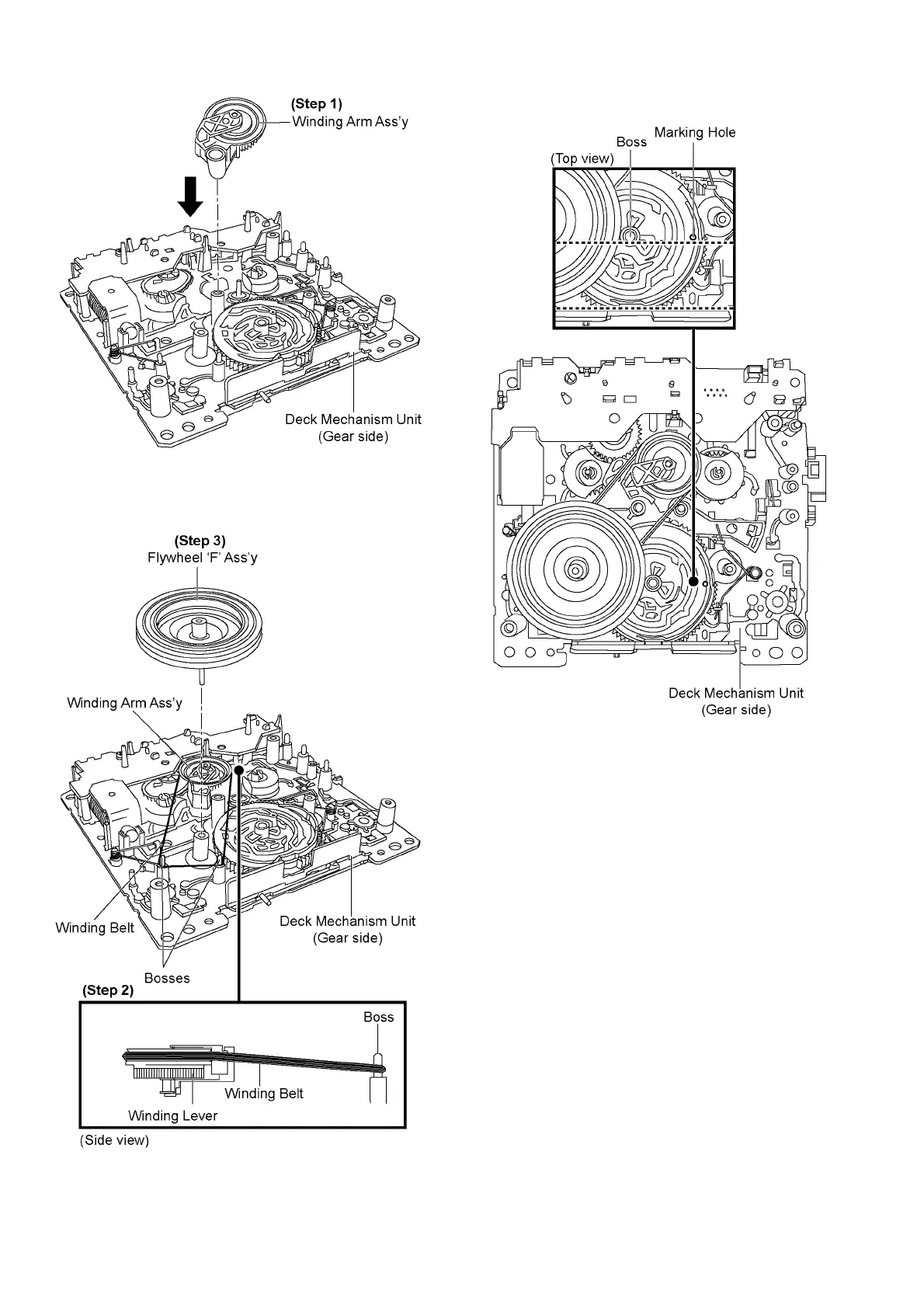

Step 1 Install the Winding Arm Ass’y.
Step 2 Coil the Winding Belt to the Winding Arm Ass’y and the
2 bosses temporarily as diagram shown.
Step 3 Install Flywheel ‘F’ Ass’y.
Caution: Ensure that the boss and the marking hole of the
Main Gear are positioned such that they form a horizontal
line parallel to the Deck Mechanism Unit.
To Next Page
