67

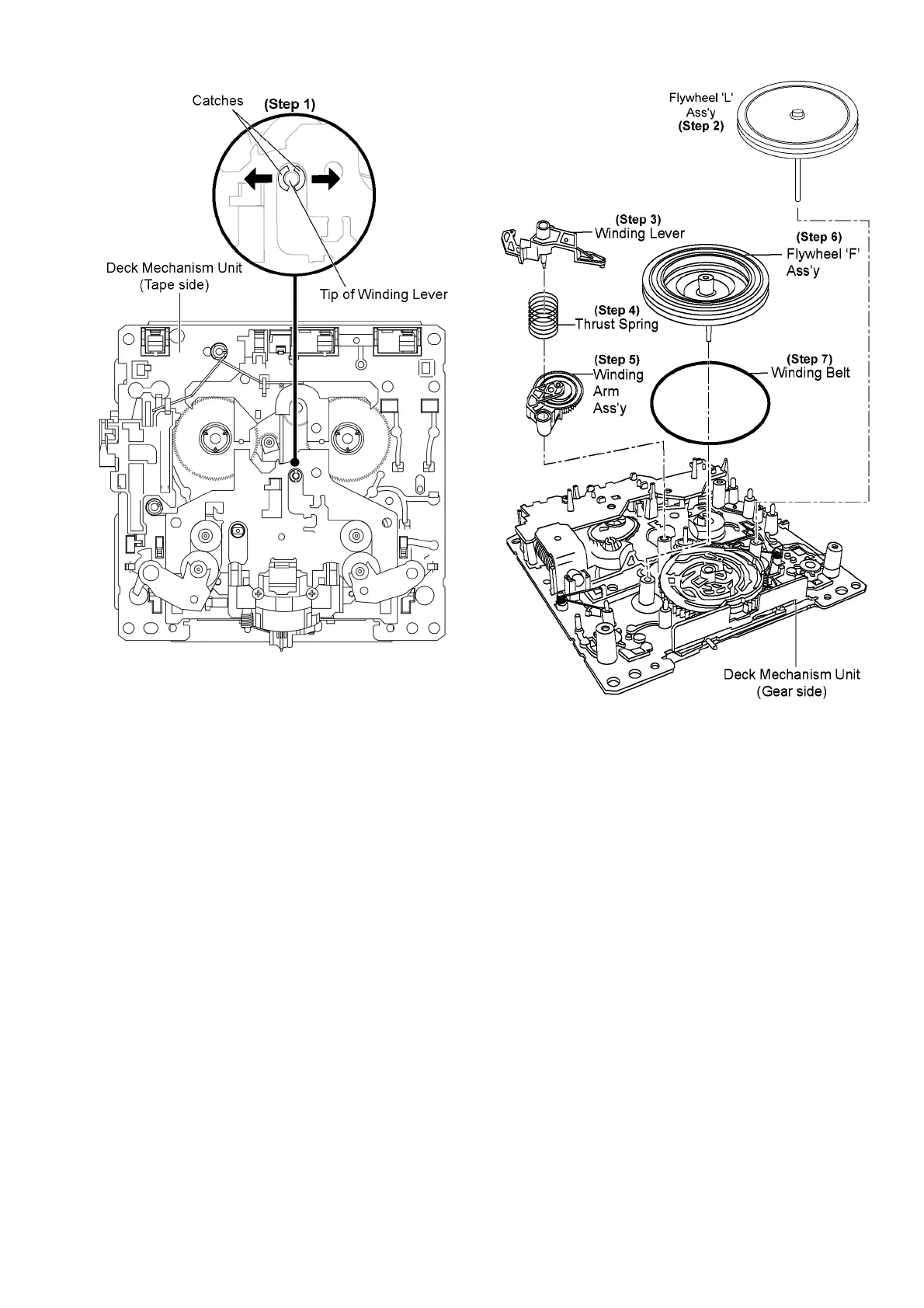

Step 1 Release 2 catches and press the tip of the Winding
Lever downwards.
Step 2 Remove Flywheel ‘L’ Ass’y.
Step 3 Remove the Winding Lever.
Step 4 Remove the Thrust Spring.
Step 5 Remove the Winding Arm Ass’y.
Step 6 Remove the Flywheel ‘F’ Ass’y.
Step 7 Remove the Winding Belt.
Caution: Keep Thrust Spring in a safe place for assembling
purpose.
- Assembly of Winding Belt
To Next Page
