Panasonic SA-VK480EE - Replacement of Winding Belt

66

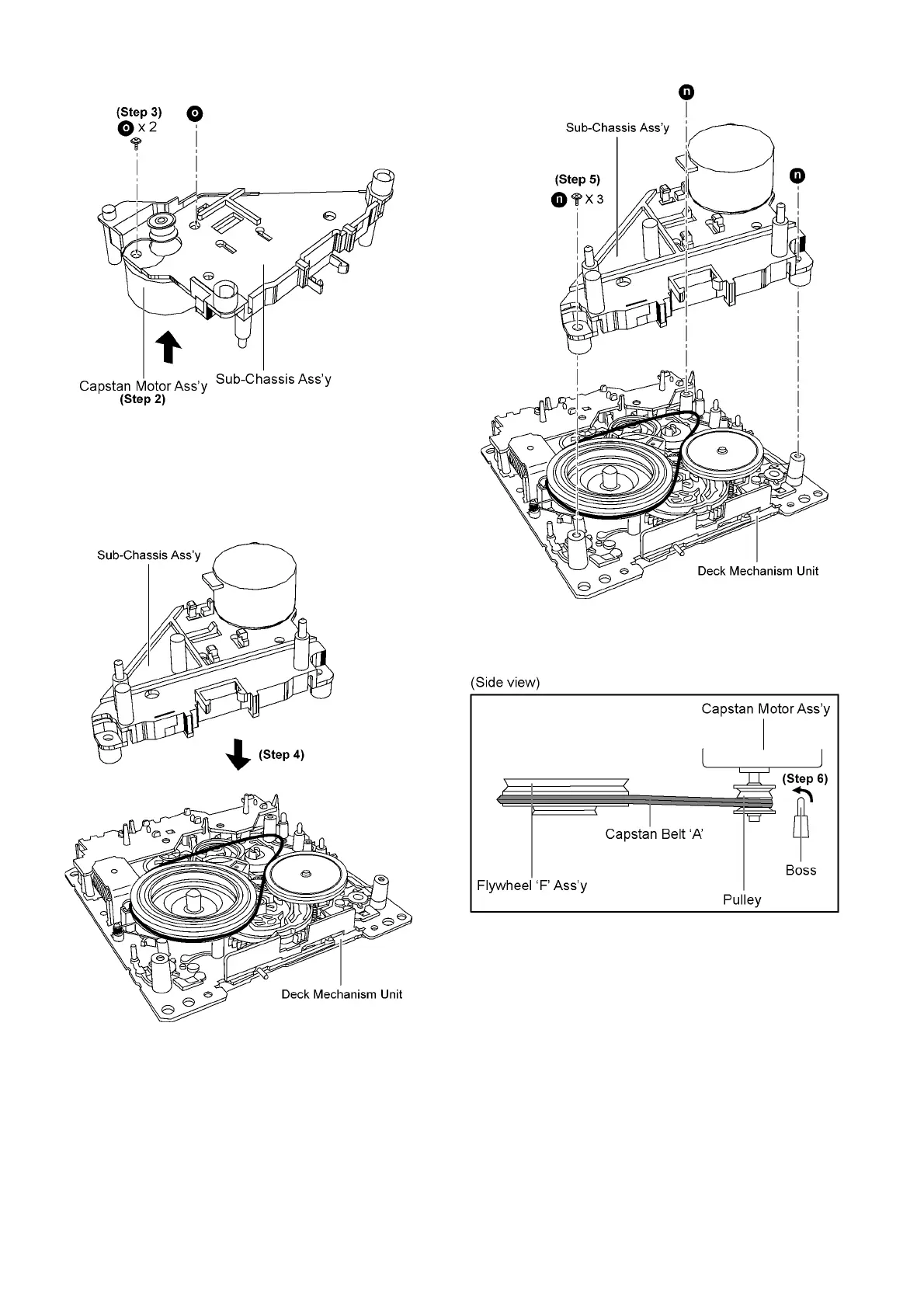

Step 2 Fit the Capstan Motor Ass’y to the Sub-Chassis Ass’y.
Caution: Ensure it seats properly.
Step 3 Fix the Capstan Motor Ass’y to the Sub-Chassis Ass’y
by 2 screws.
Step 4 Install the Sub-Chassis Ass’y to the Deck Mechanism
Unit.
Caution: Ensure the Sub-Chassis Ass’y seats properly on
the bosses.
Step 5 Fix 3 screws.
Step 6 Release Capstan Belt ‘A’ to the pulley of Capstan Motor
Ass’y as diagram shown.
9.16.3. Replacement of Winding Belt
• Follow the (Step 3) to (Step 4) of item 9.16.1.
• Follow the (Step 1) to (Step 4) of item 9.16.2.
- Disassembly of Winding Belt
