65

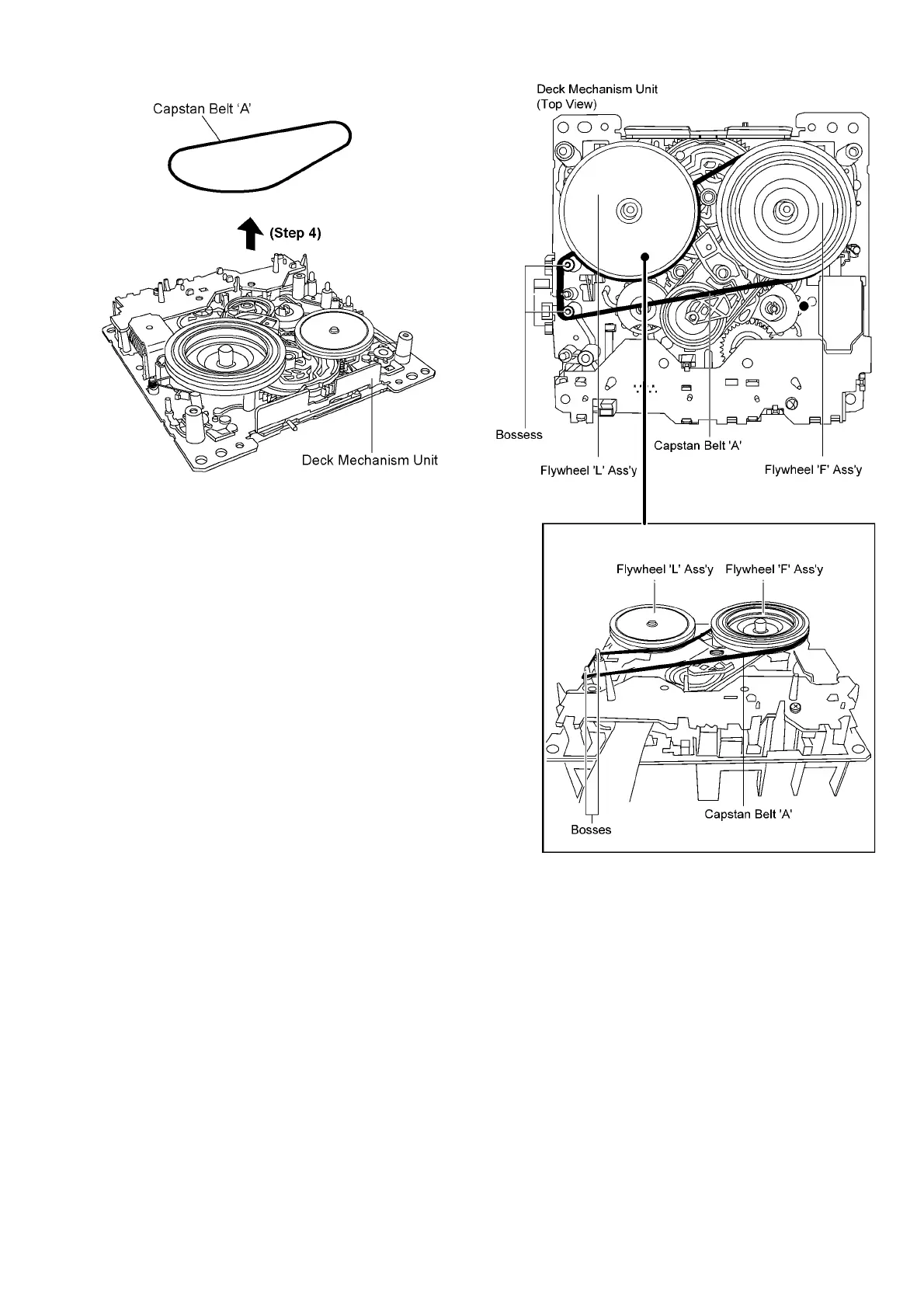

Step 4 Remove Capstan Belt ‘A’.
- Assembly of Capstan Motor Ass’y and Capstan Belt ‘A’
Step 1 Coil Capstan Belt ‘A’ to Flywheel ‘F’ Ass’y, Flywheel ‘L’
and the 2 bosses temporarily as diagram shown.
Caution: Keep Capstan Belt ‘A’ away from grease during
assembly of Capstan Belt ‘A’.
To Next Page
