DOC-0017-03-EN: AC15 Series - Hardware Installation Manual
DOC-0017-03-EN-B 04.04.2023 21 (125)

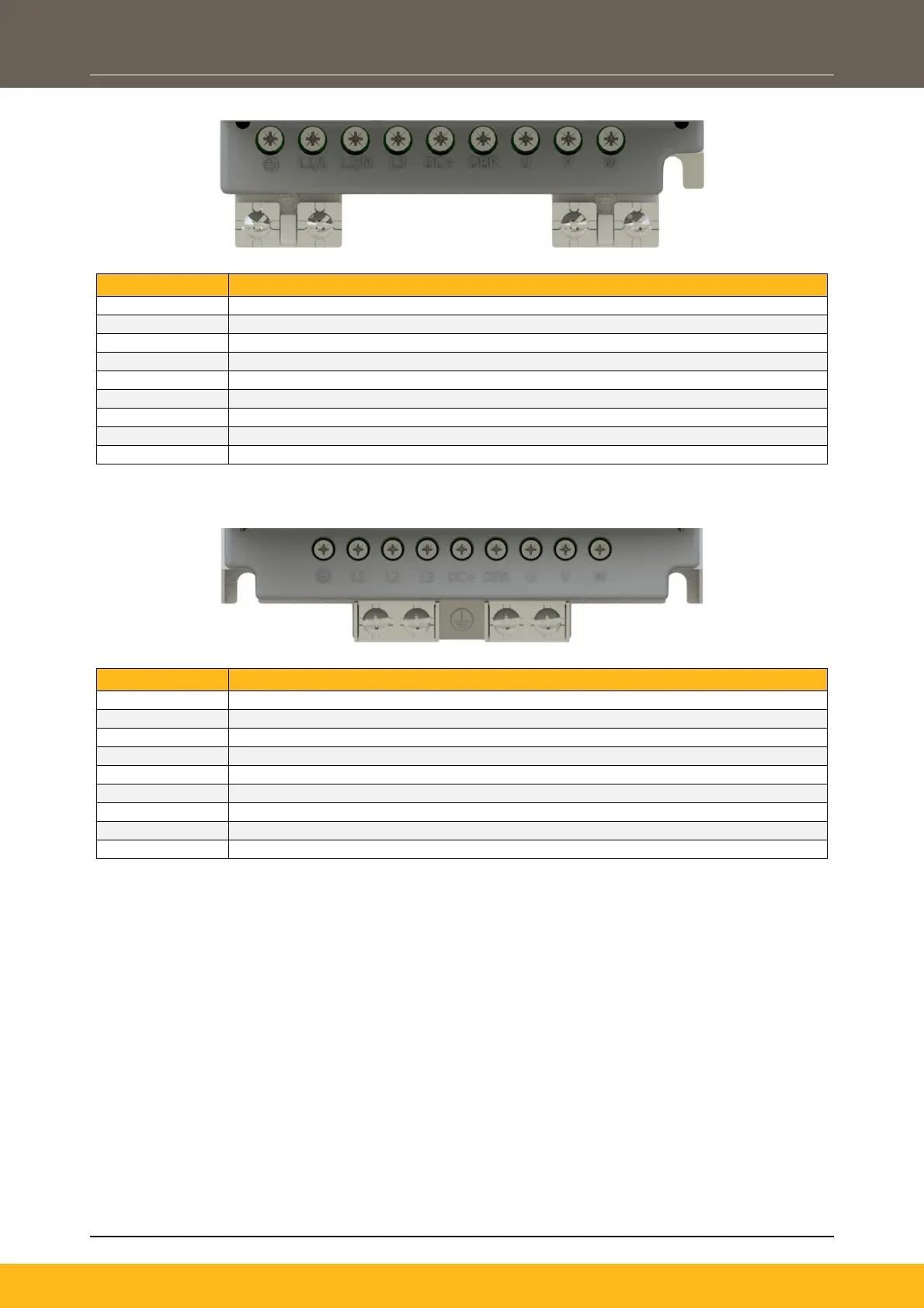

Frame 2:
Label
Description
PE
Protective Earth
L1 / L
Supply Input Phase L1 / Live
L2 / N
Supply Input Phase L2 / Neutral
L3
Supply Input Phase L3
DC+
DC+ / Dynamic Brake Resistor Connection (+)
DBR
Dynamic Brake Resistor Connection (-)
U
Motor Output Phase U
V
Motor Output Phase V
W
Motor Output Phase W
Frames 3 & 4:
Label
Description
PE
Protective Earth
L1
Supply Input Phase L1
L2
Supply Input Phase L2
L3
Supply Input Phase L3
DC+
DC+ / Dynamic Brake Resistor Connection (+)
DBR
Dynamic Brake Resistor Connection (-)
U
Motor Output Phase U
V
Motor Output Phase V
W
Motor Output Phase W
