5. To Change Motor Direction:
To change the direction of the motor with the onboard keypad:
- Ensure the drive is in a ‘Stopped’ state:
- Press the ‘Stop’ key and either the ‘Up’ (Forward) or ‘Down’ (Reverse) key simultaneously:

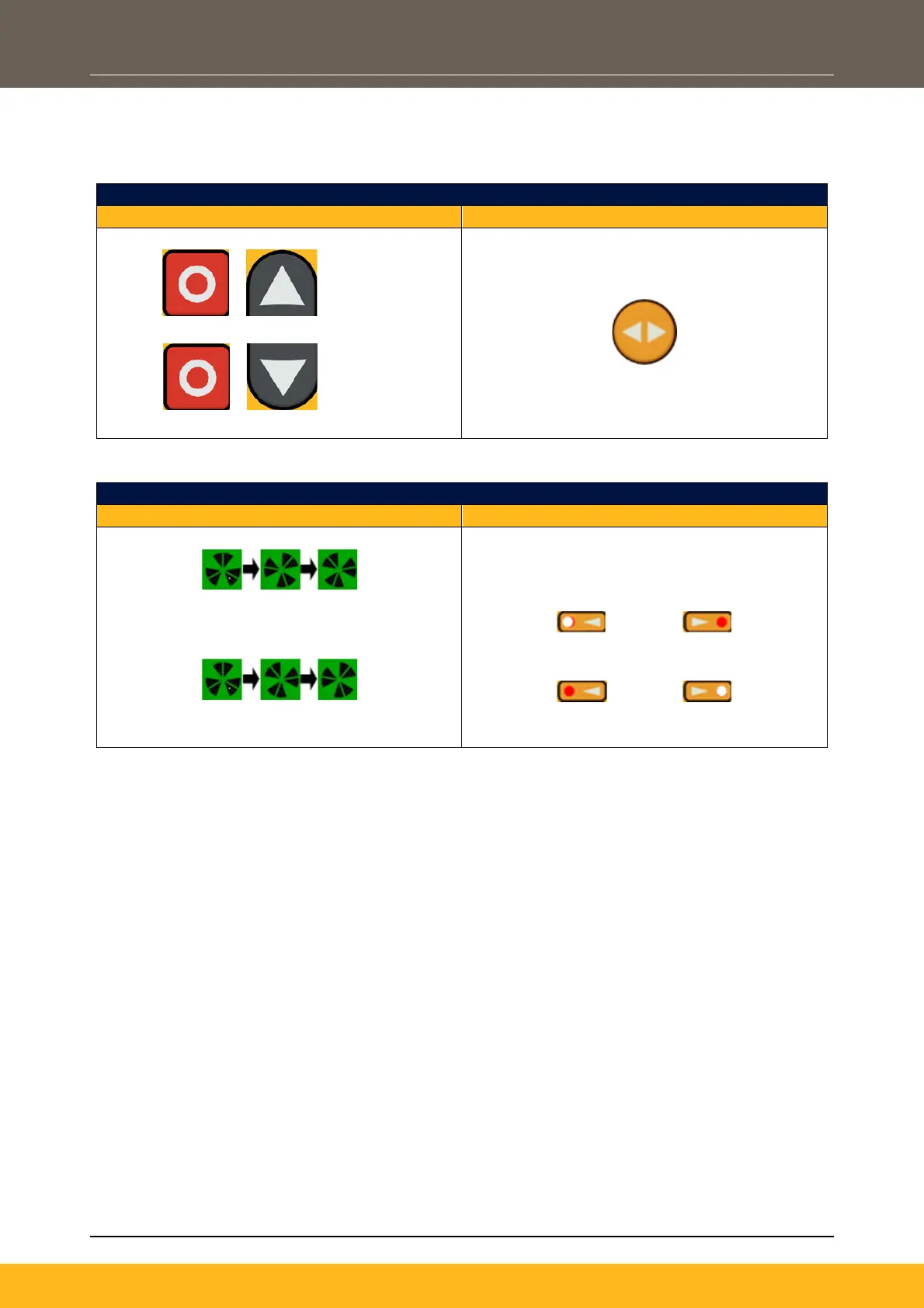

Changing Motor Direction Initiation
Onboard Keypad Display
6901 Remote Keypad Display
+ = Forward
+ = Reverse
The direction is indicated by:
Motor ‘Direction’ Indication
Onboard Keypad Display
6901 Remote Keypad Display
If ‘Forward’ direction is active:
When ‘Running’, icon will ‘rotate’ in ‘Forward’
direction.
If ‘Reverse’ direction is active:
When ‘Running’, icon will ‘rotate’ in ‘Reverse’
direction
.
If ‘Forward’ direction is active:
‘FWD’ LED will illuminate, ‘REV’ LED will turn off:
If ‘Reverse’ direction is active:
‘REV’ LED will illuminate, ‘FWD’ LED will turn off:
Note: The direction can be changed on the Remote keypad at any time (i.e., when drive is ‘Running’
or is ‘Stopped’.
