- The drive will enable and should accelerate the motor to the speed demanded. Parameter 0105
(Speed Percent) provides the real time speed feedback (% of motor nameplate rpm) value.
- When the drive is running, the drive will show the following status indication:

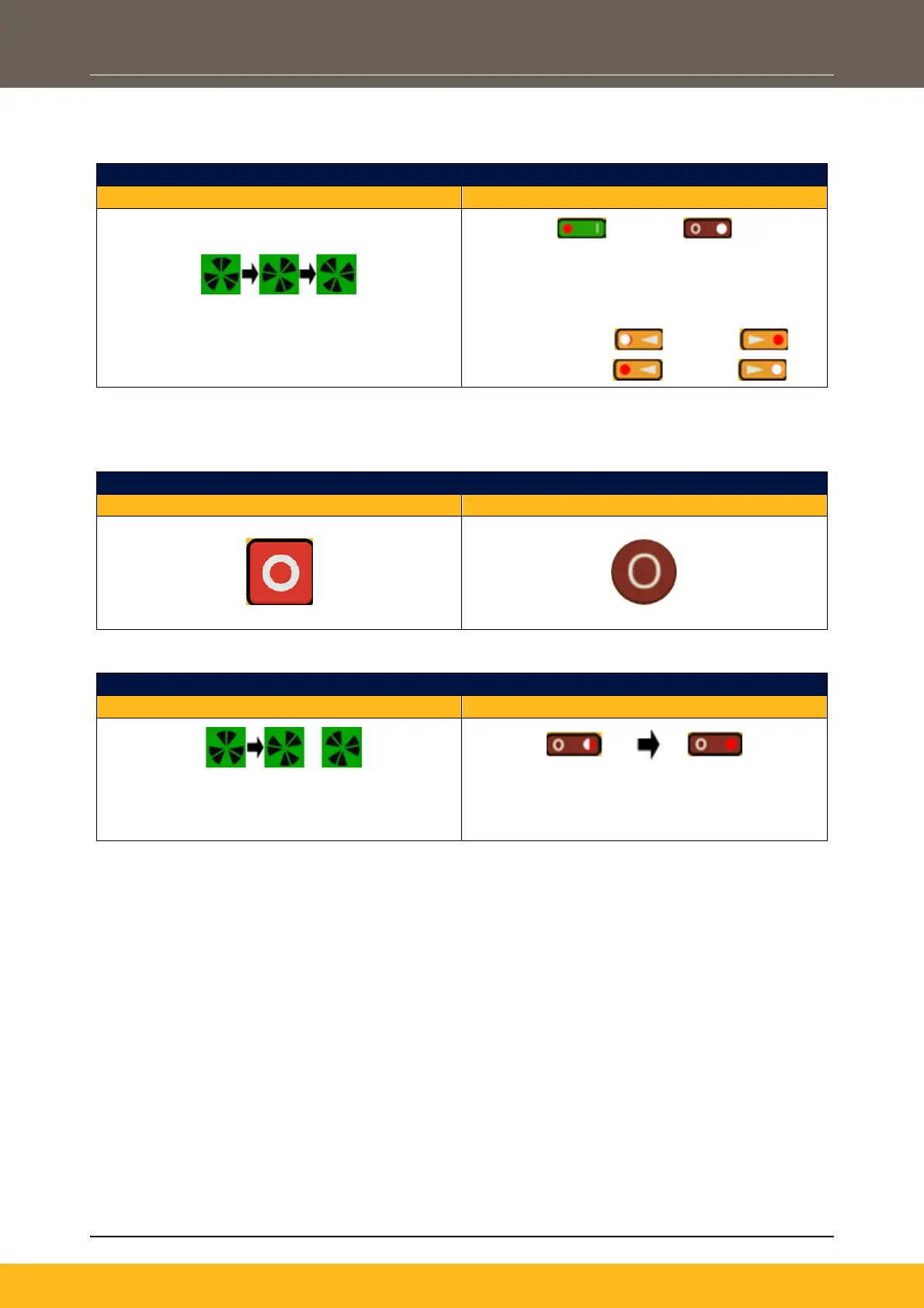

Drive ‘Running’ Indication
Onboard Keypad Display
6901 Remote Keypad Display
Motor ‘Running’ icon ‘rotates’ in the direction of
the shaft.
Motor ‘Running’ LED Illuminated, motor
‘Stopped’ LED off.
The shaft will rotate in the direction indicated by
the direction LEDs:
‘FWD’ direction:
‘REV’ direction:
4. Stopping The Drive:
To stop the drive:
- Press the ‘Stop’ key:
Local ‘Stop’ Mode Initiation
Onboard Keypad Display
6901 Remote Keypad Display
The drive should decelerate the motor to a standstill, before disabling:
Drive ‘Stopped’ Indication
Onboard Keypad Display
6901 Remote Keypad Display
,
Motor ‘Running’ icon will continue ‘rotating’ during
motor deceleration, until the motor has come to a
stop.
Motor ‘Stopped’ LED will flash during motor
deceleration, until the motor has come to a stop,
when the ‘Stopped’ LED will illuminate.
