Parker Service Master CONNECT User Manual

ENGLISH
3.3.2 D-IN/D-OUT F1/F2
The D-IN/D-OUT F1/F2 connection port is a galvanically separated,
doubly assigned connection and has one of the following functions ac-
cording to the setting in the device:
■ DIGITAL-IN and DIGITAL-OUT
■ 2× frequency input
INFORMATION
The frequency inputs are also suitable for the connection of volume
flow sensors.
Information on switching the connection is available in Chapter
&"Sensors" on Page228.
Refer to the following overview for the PIN assignment:
3 4
5
12

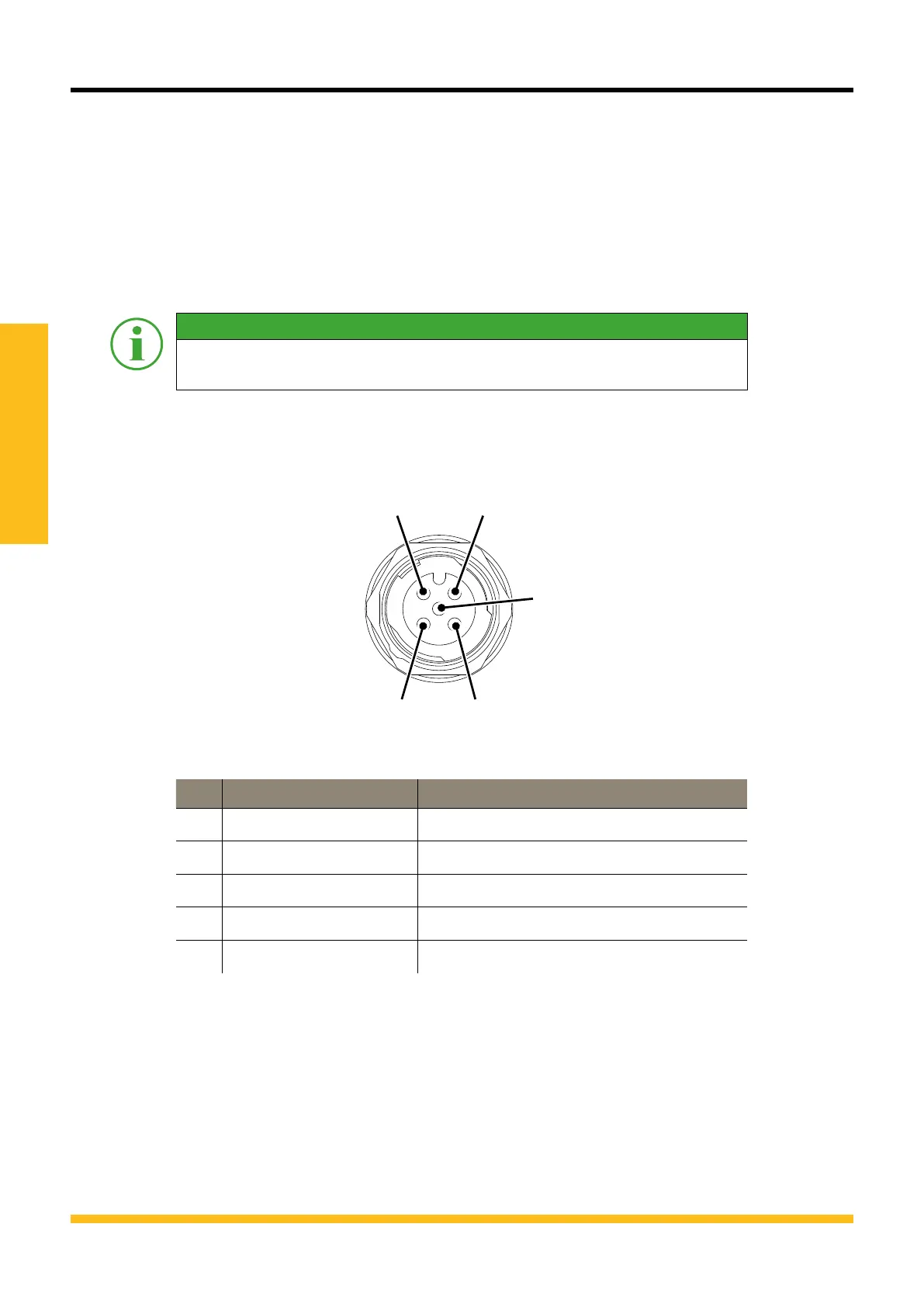

Fig.5 Connection port, D-IN/D-OUT F1/F2
PIN D-IN/D-OUT F1/F2
1 Digital-In+ Frequency signal 1
2 Digital-In GND Frequency signal 1 GND
3 Digital-Out+ Frequency signal 2
4 Digital-Out GND Frequency signal 2 GND
5 +Ub (+24 V
DC
) +Ub (+24 V
DC
)
162
The Parker Service Master CONNECT V1.0/04/20
Design and Function
