4.4.2 Analog Input Module (SCMI-600-01)
The analog input module (SCMI-600-01) is equipped with three analog
connection ports, IN1-3, for sensors with automatic sensor detection
(Parker analog) and an analog connection, IN4/5, for up to two external
sensors without automatic sensor detection (e.g. standard industrial
sensors).
The IN4/5 analog connection can be used to complete fast measure-
ments.
The figure indicates the connection ports on the analog input module:
1 2 3 4

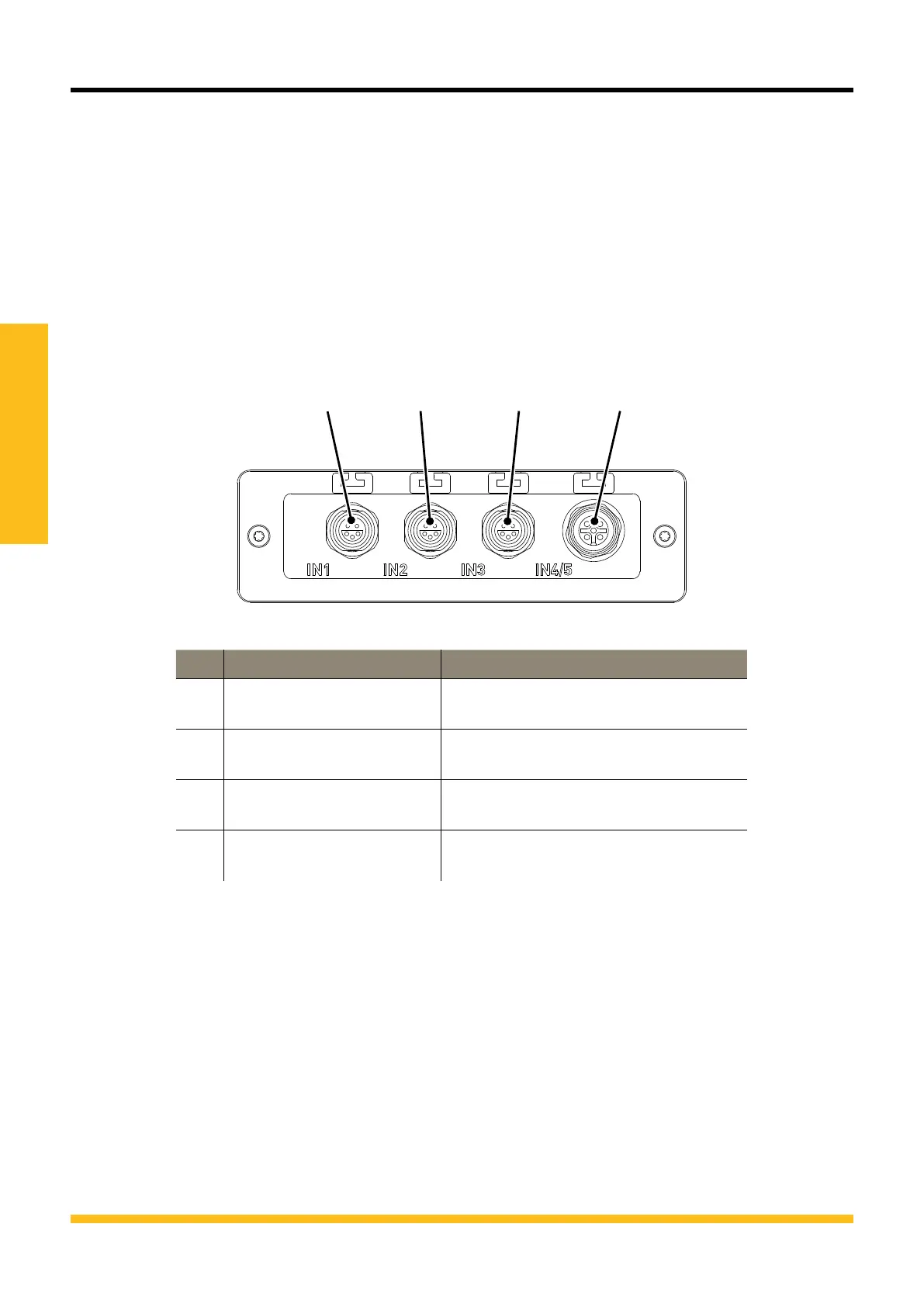

Fig.8 Analog input module (SCMI-600-01)
Pos. Designation Description
1 Analog port (IN1) To connect sensors with automatic
sensor detection
2 Analog port (IN2) To connect sensors with automatic
sensor detection
3 Analog port (IN3) To connect sensors with automatic
sensor detection
4 Analog port (IN4/5) To connect sensors without auto-
matic sensor detection
166
The Parker Service Master CONNECT V1.0/04/20
Input Modules

Parker Service Master CONNECT Specifications

General

Data Logging	Yes
Connectivity	Bluetooth
Software Compatibility	Parker Service Master Software
Communication Interface	Bluetooth
Power Supply	Rechargeable battery
