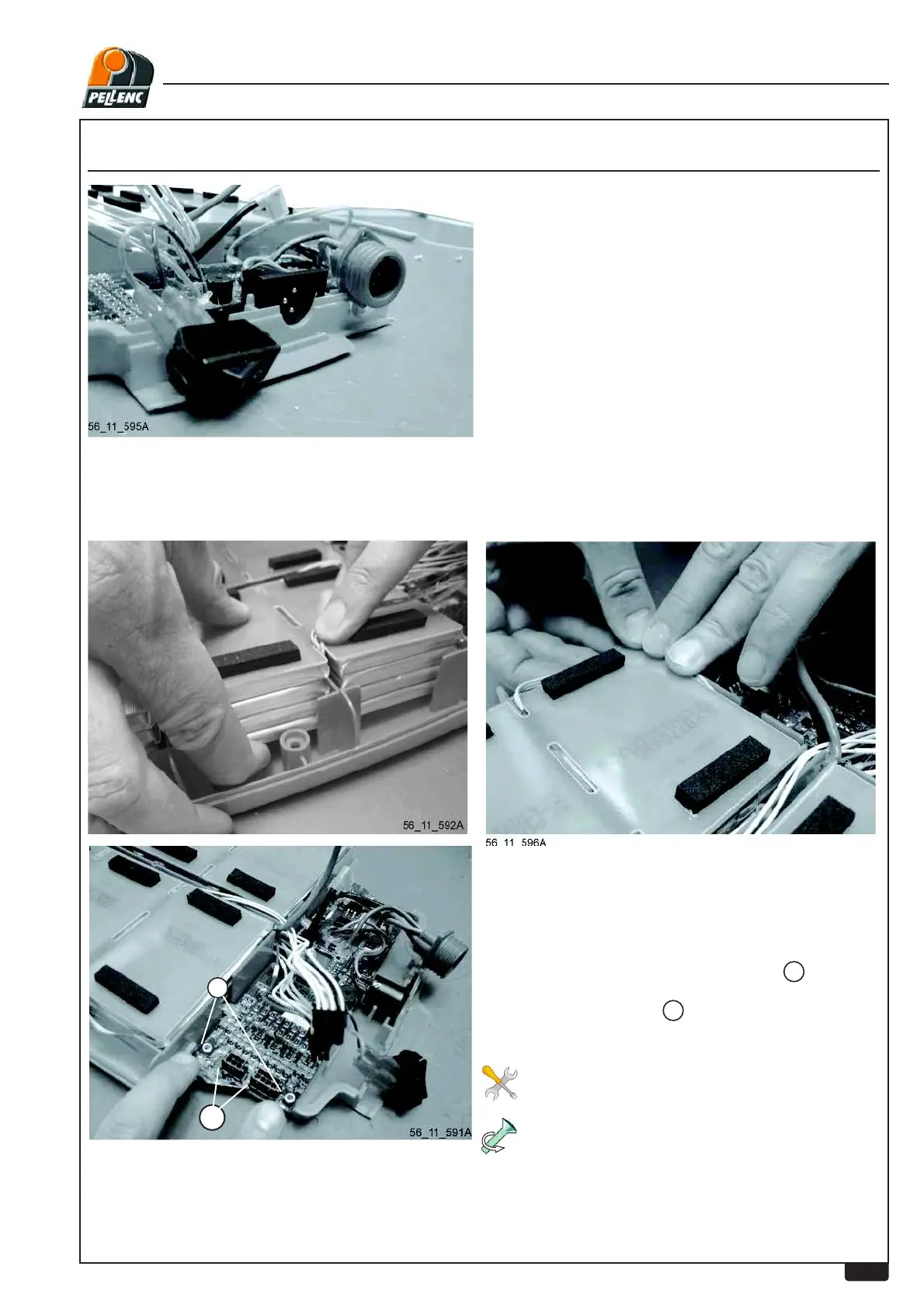

"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
- Position the connectors and the switch in their locations
in the half-casing
- Reinstall the temperature probes; to make it easier to position them, slightly lift the cell pack on each side
- Push the wires that come out of the temperature probes between the casing and the cell packs (see photo)
- Reinstall the 4 power screws in the board
3
- Reconnect J12 and J13.
4
Pozidriv screwdriver
Torque to 0.6 Nm
