"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

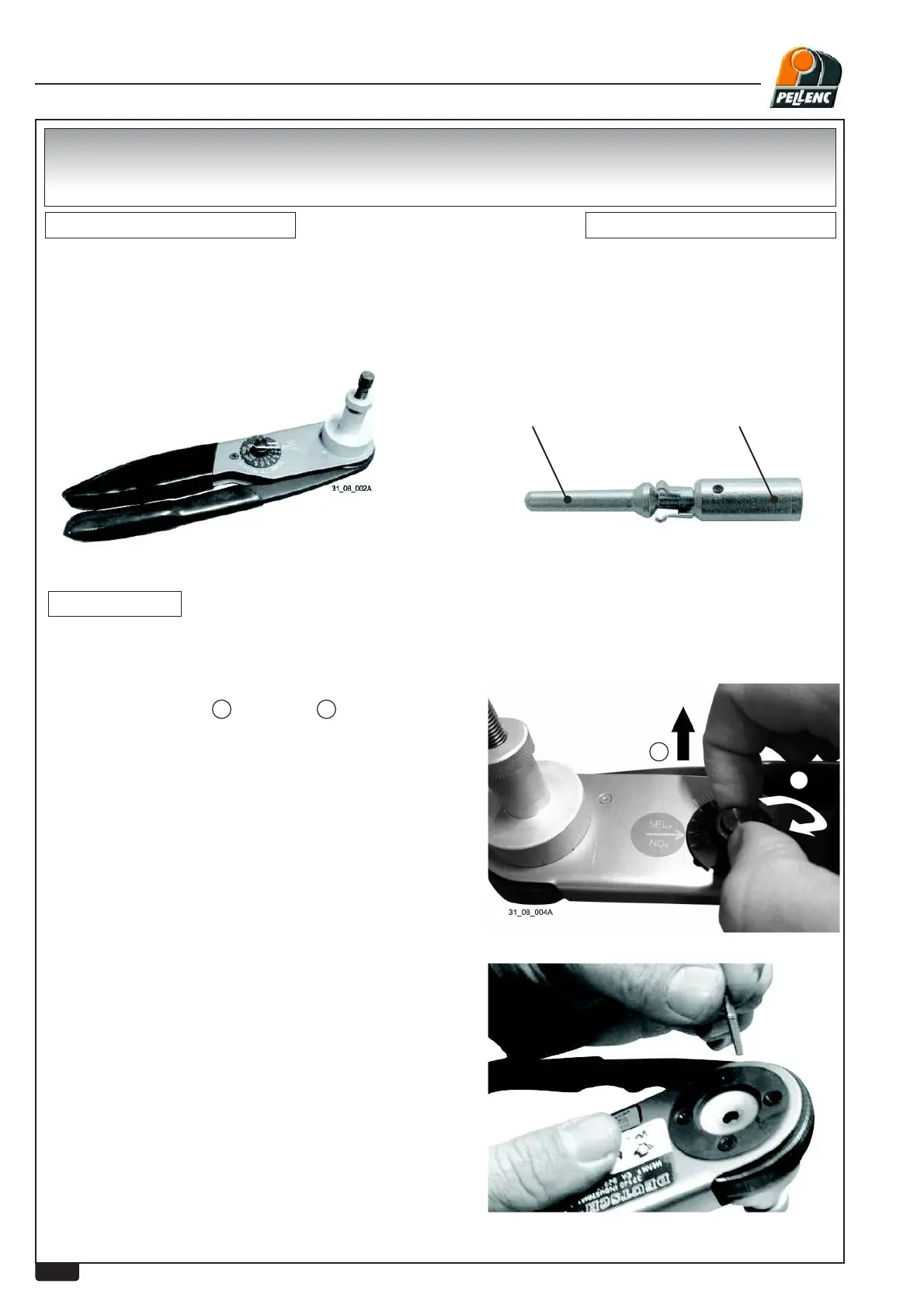

USING THE DEUTSCH CRIMPING PLIERS FOR CRIMPING
CLOSED BARREL CONTACTS
PROCEDURE:
SPECIFIC TOOLS: TIME REQUIRED:
DEUTSCH T12-20 CRIMPING PLIERS
1- Remove the pin.
Lift the selector knob
1
and turn it
2
until the arrow is aligned with the size of wireto be
crimped. (cf. conversion table below)
2- Release the knob; the sprocket locks in the notch
(calibration relative to the diameter of the wire and
the lug).
3- Insert the contact in the crimping area
Contact area
CLOSED BARREL CONTACT
Area to be crimped
Less than 5 MN
